Product details

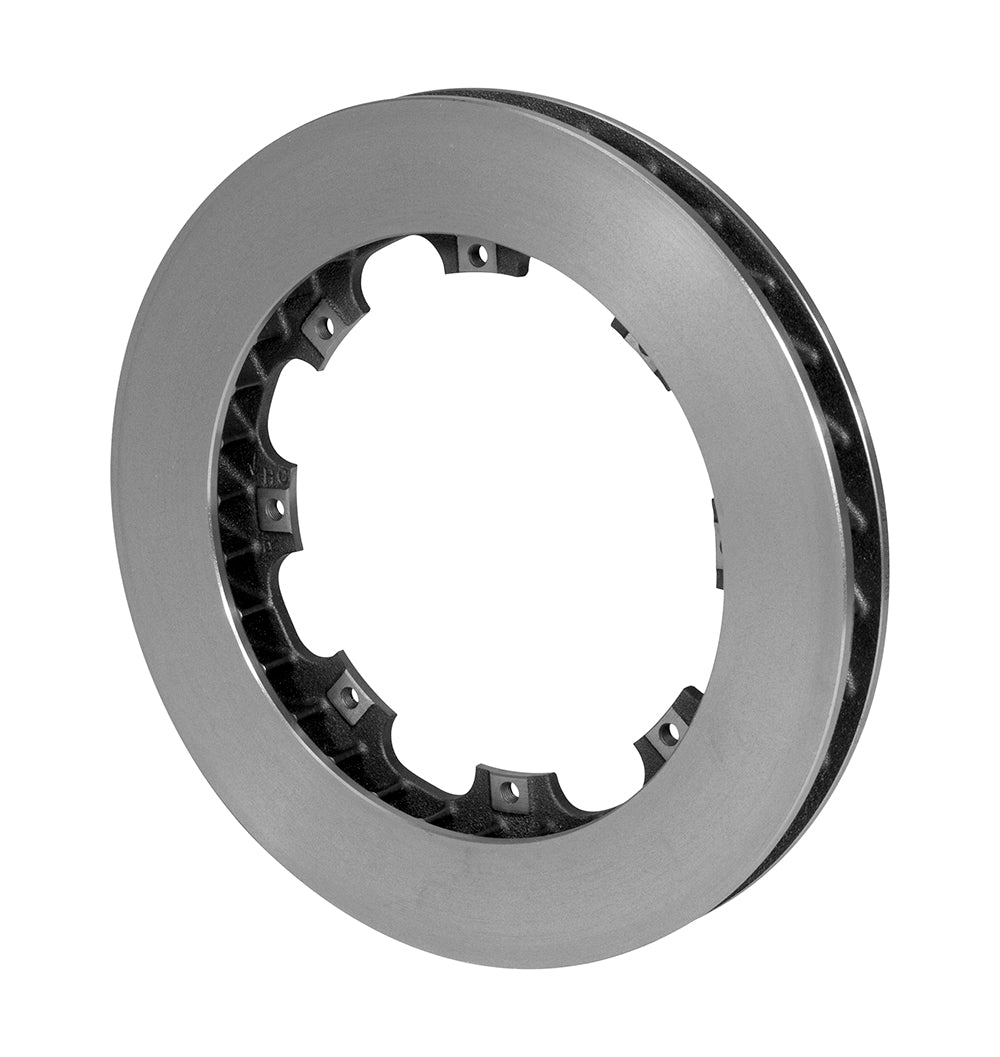

This left-side Ultralite ring combines plain iron faces with a directional 32-vane casting. The 11.75 x 1.25-inch geometry and eight-hole flange make it a replacement for the corresponding complete brake assembly, not a universal rotor blank. Since its founding by Bill Wood in 1977, Wilwood has designed and manufactured disc brake systems from its base in Camarillo, California. Its products span rotors, calipers, master cylinders, valves, fittings and lines for motorsport, street performance and specialized applications. Brake selection should account for the whole installation, including mounting dimensions, friction materials and hydraulic balance.
Technical Details
- Manufacturer part number: 160-2899
- Quantity: One rotor; not an axle pair
- Outside diameter: 11.75 inches
- Nominal thickness: 1.25 inches
- Rotor material: Iron
- Construction: 32 curved vanes
- Friction surface: Plain Face
- Finish: Plain
- Approximate weight: 9.60 lb
- Factory burnished: No
- Dynamically balanced: No
- Installation orientation: Left-hand
- Rotor attachment pattern: 8 x 7.00 inches
- Rotor mounting hole / thread: 0.326 inches
- Registration / lug inside diameter: 6.38 inches
- Far-side inside diameter: 8.34 inches
- Opposite-hand companion rotor: 160-2898 (sold separately)
- Intended use and restrictions: Suitable for moderate-temperature racing and street use. Medium-weight castings.
The hat or hub, fasteners, caliper and pads are not included.
Fitment & Compatibility
Verify the 7.00-inch mounting circle, 6.38-inch register and 8.34-inch far-side inside diameter. Use the specified left-hand orientation when pairing it with the right-side ring.
Wilwood product specifications · Rotor dimension diagram
Put PMB Performance’s 20-plus years of brake knowledge to work when matching this part to your build. We can help review the dimensions and application requirements.
