Product details

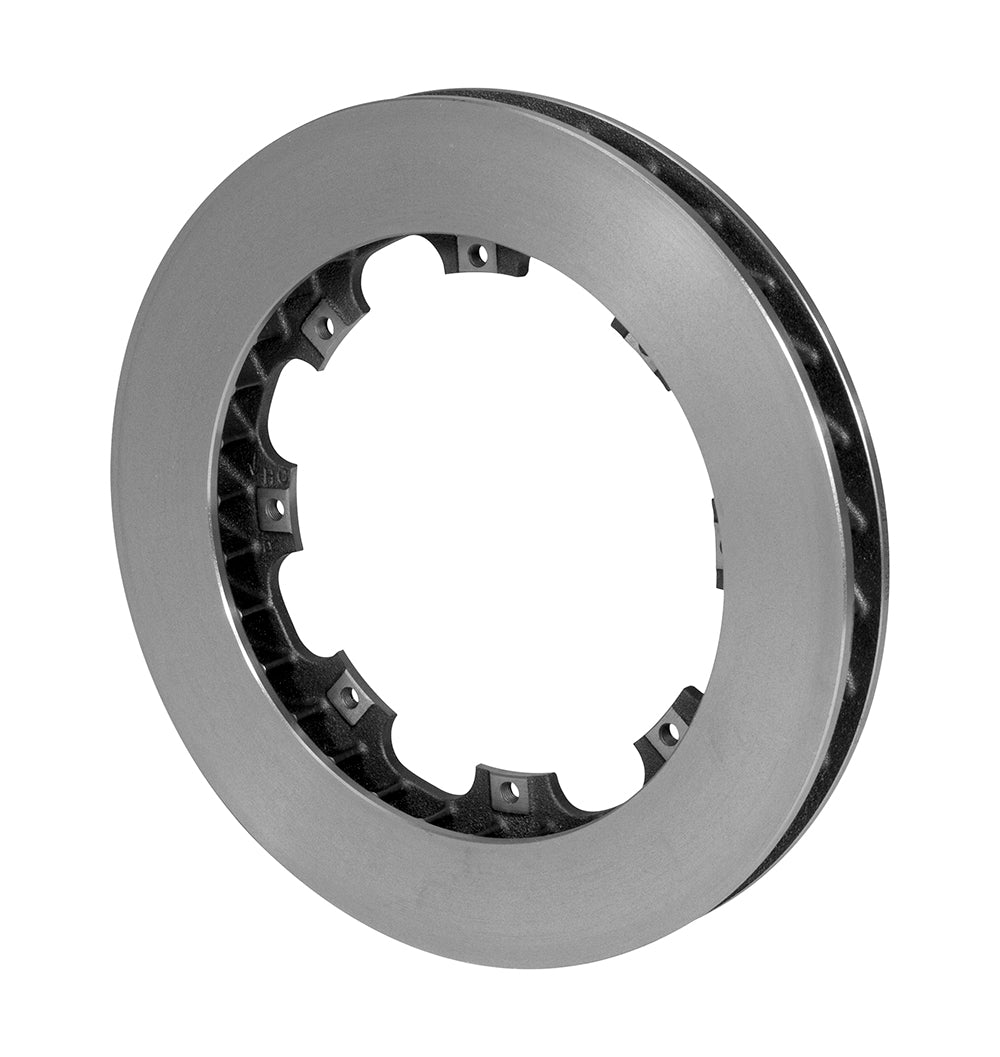

A left-hand curved-vane layout provides the cooling orientation of this plain Ultralite rotor. Its 12.19-inch outside diameter and thick 1.25-inch section fit a matching brake assembly, with an uncoated iron friction surface. Established in 1977 by Bill Wood, Wilwood develops its range around complete disc brake systems. The Camarillo, California manufacturer designs and manufactures calipers, rotors, master cylinders, valves, fittings and lines for motorsport, street performance and specialized applications. Installation geometry, pad selection and braking duty should be considered together when choosing this component.
Technical Details
- Manufacturer part number: 160-2895
- Quantity: One rotor; not an axle pair
- Outside diameter: 12.19 inches
- Nominal thickness: 1.25 inches
- Rotor material: Iron
- Construction: 32 curved vanes
- Friction surface: Plain Face
- Finish: Plain
- Approximate weight: 10.50 lb
- Factory burnished: No
- Dynamically balanced: No
- Installation orientation: Left-hand
- Rotor attachment pattern: 8 x 7.00 inches
- Rotor mounting hole / thread: 0.326 inches
- Registration / lug inside diameter: 6.38 inches
- Far-side inside diameter: 8.56 inches
- Opposite-hand companion rotor: 160-2894 (sold separately)
- Intended use and restrictions: Suitable for moderate-temperature racing and street use. Medium-weight castings.
The hat or hub, fasteners, caliper and pads are not included.
Fitment & Compatibility
Confirm the 0.326-inch rotor mounting holes and 8.56-inch far-side clearance. Non-directional 32-vane rings in other widths are not automatic substitutes.
Wilwood product specifications · Rotor dimension diagram
For more than 20 years, PMB Performance has helped customers choose brake components. Share the details of your current setup for assistance with rotor selection.
