Product details

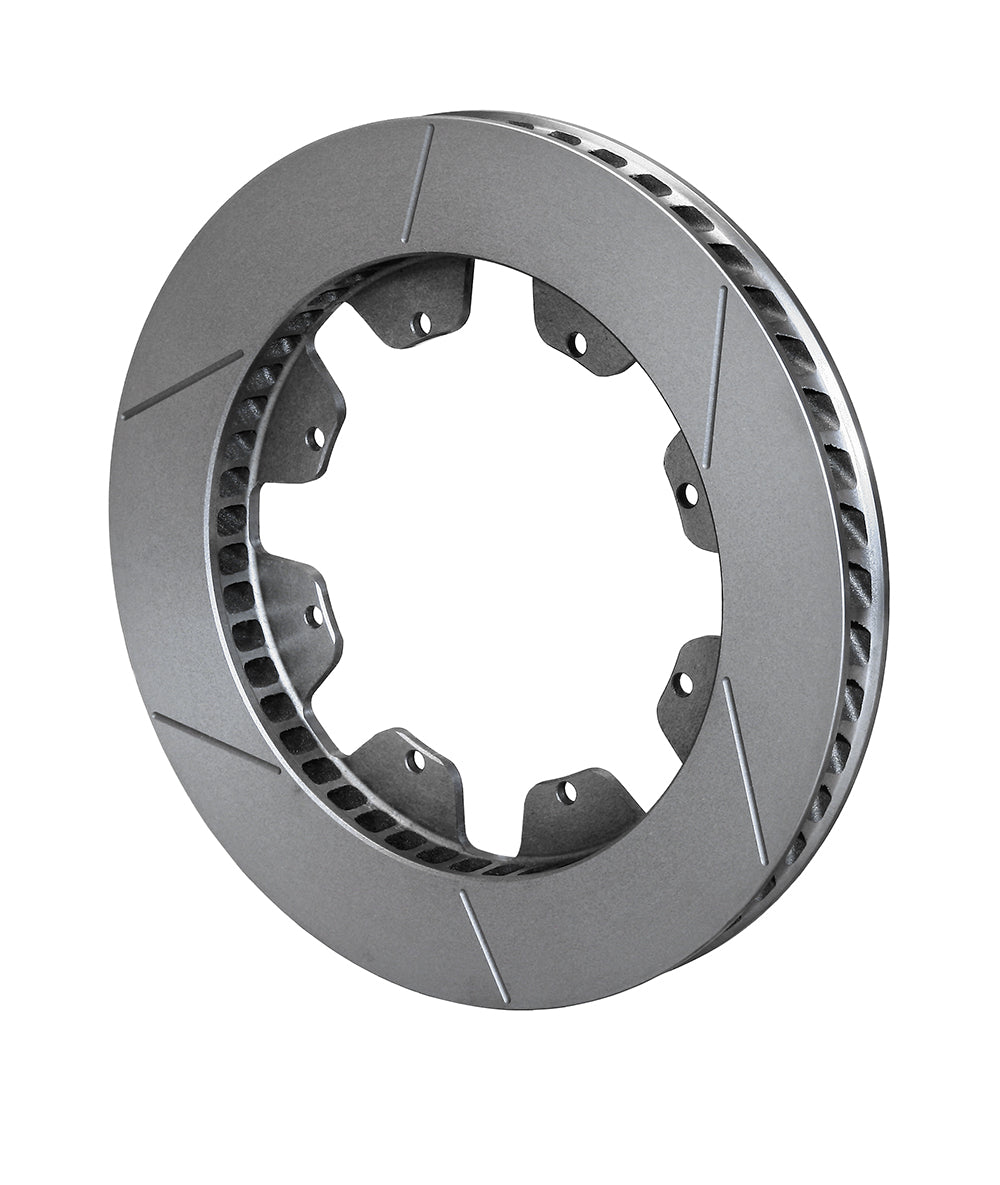

Left-hand cooling vanes distinguish this 12.72-inch GT rotor from its opposite-side companion. The heavy-wall Spec-37 ring mounts through eight 0.316-inch holes, with a 6.53-inch registration bore that must suit the intended hat. Disc brake systems have been Wilwood’s focus since Bill Wood founded the company in 1977. Based in Camarillo, California, Wilwood designs and manufactures calipers, rotors, master cylinders, valves, fittings and lines for motorsport, street performance and specialized applications. The rotor is one part of that system and needs compatible pads, calipers and mounting components.
Technical Details
- Manufacturer part number: 160-2541
- Quantity: One rotor; not an axle pair
- Outside diameter: 12.72 inches
- Nominal thickness: 1.25 inches
- Rotor material: Spec-37 Iron
- Construction: 48 curved vanes
- Friction surface: GT Slotted
- Finish: Plain
- Approximate weight: 13.40 lb
- Factory burnished: No
- Dynamically balanced: Yes
- Installation orientation: Left-hand
- Rotor attachment pattern: 8 x 7.00 inches
- Rotor mounting hole / thread: 0.316 inches
- Registration / lug inside diameter: 6.53 inches
- Far-side inside diameter: 8.88 inches
- Opposite-hand companion rotor: 160-2540 (sold separately)
- Intended use and restrictions: Suitable for moderate-temperature racing and street use. Spec-37 heavy-wall castings.
The hat or hub, fasteners, caliper and pads are not included.
Fitment & Compatibility
Use the 7.00-inch rotor attachment circle and verify the 8.88-inch far-side inside diameter. Similar GT rings with other center patterns are separate applications.
Wilwood product specifications · Rotor dimension diagram
