Product details

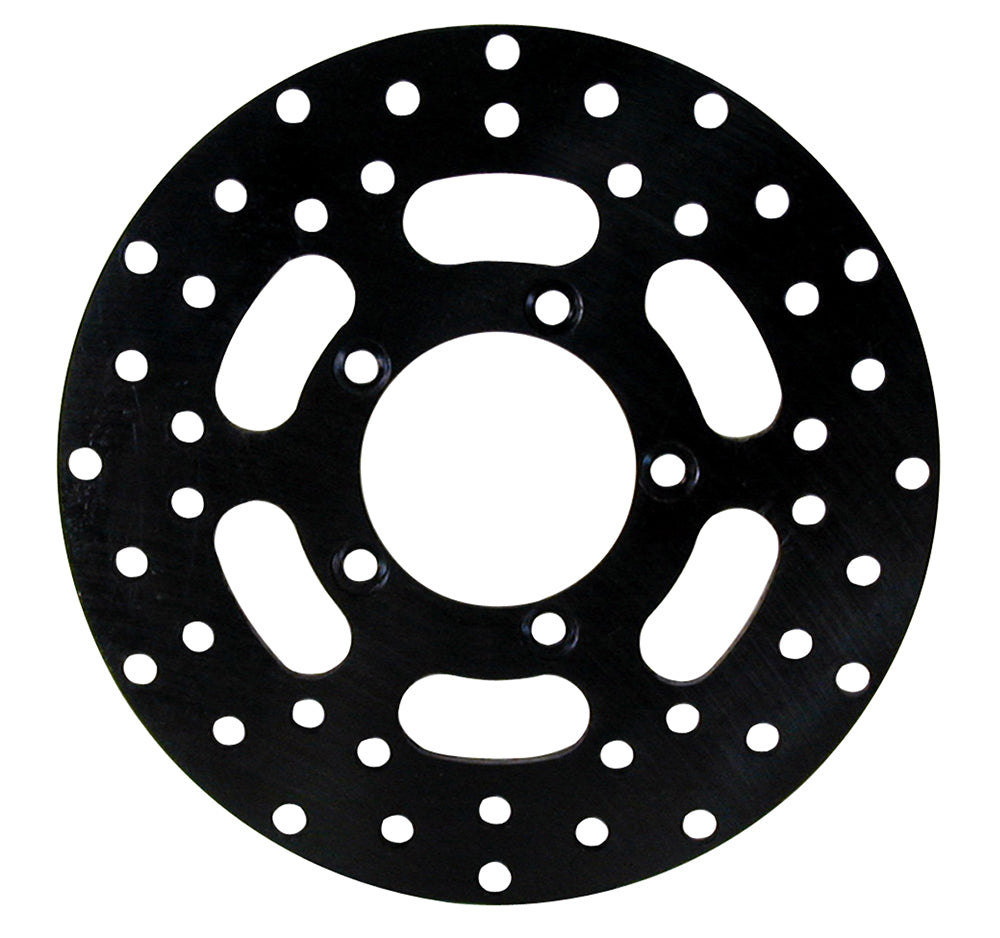

The compact five-hole center of this drilled rotor suits a specific drag-brake mounting arrangement. Its 10-inch steel ring is nominally 0.32 inch thick, with the close-spaced attachment flange kept distinct from a vehicle’s wheel studs. Bill Wood established Wilwood in 1977. From Camarillo, California, the company designs and manufactures disc brake systems covering motorsport, street performance and specialized applications, with calipers, rotors, master cylinders, valves, fittings and lines in its product range. This rotor should be selected with the mounting arrangement, friction compound and hydraulic system in mind.
Technical Details
- Manufacturer part number: 160-2182
- Quantity: One rotor; not an axle pair
- Outside diameter: 10.00 inches
- Nominal thickness: 0.32 inches
- Rotor material: Steel
- Construction: Solid
- Friction surface: Drilled
- Finish: Black Electro Coat
- Approximate weight: 4.80 lb
- Factory burnished: No
- Dynamically balanced: No
- Installation orientation: Non-directional
- Rotor attachment pattern: 5 x 3.88 inches
- Rotor mounting hole / thread: 0.391 inches
- Registration / lug inside diameter: 3.12 inches
- Intended use and restrictions: For drag racing only; not for street use.
The hat or hub, fasteners, caliper and pads are not included.
Fitment & Compatibility
Restricted to appropriate drag-racing assemblies and not for street use. Match the 3.88-inch rotor attachment circle and 0.391-inch holes to the correct carrier.
Wilwood product specifications · Rotor dimension diagram
With over 20 years of brake experience, PMB Performance can help you compare the installed assembly with this rotor’s dimensions before ordering.
