Product details

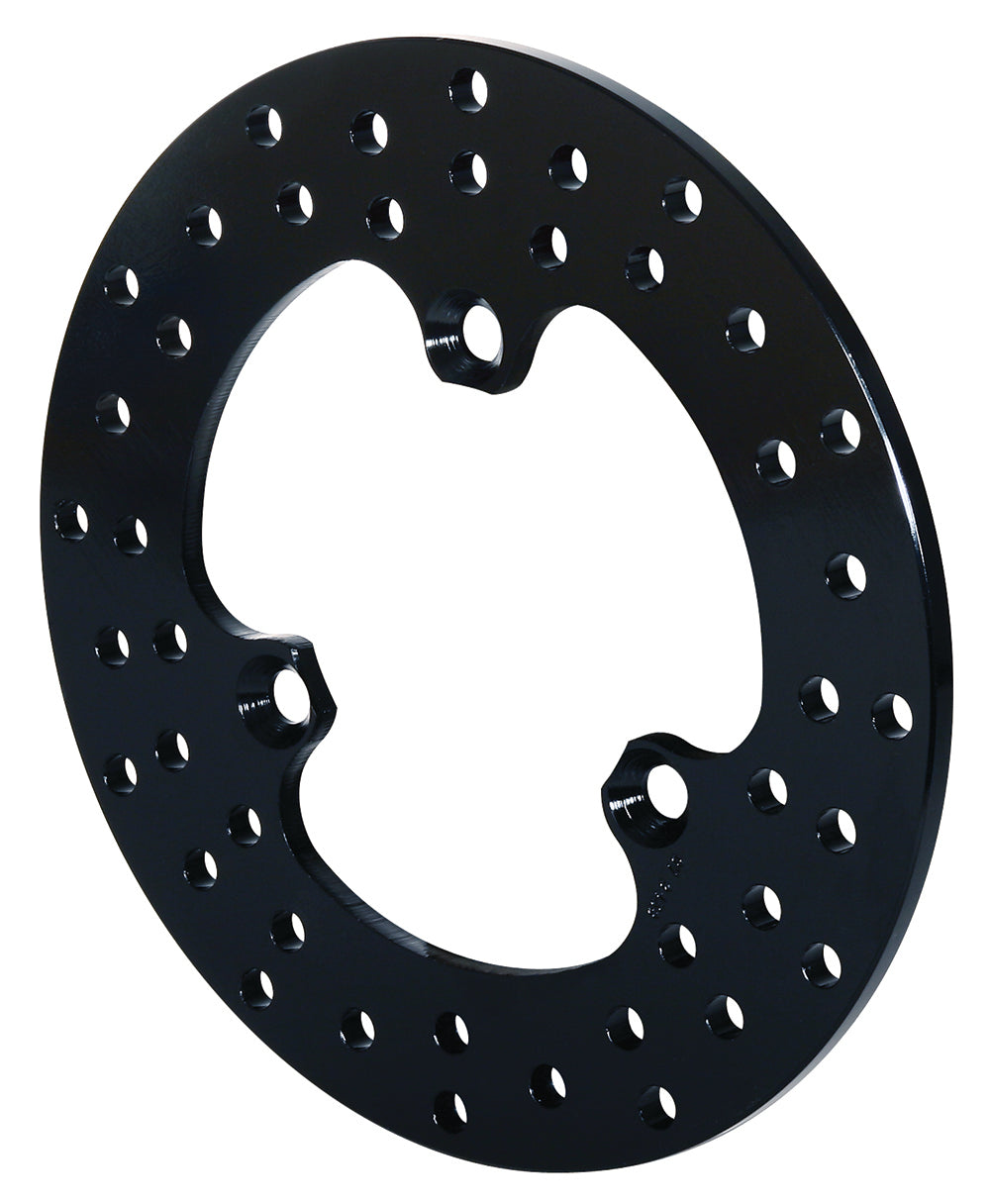

A three-hole mounting flange and drilled steel ring identify this 10.95-inch dirt-racing rotor. Its 0.31-inch solid section requires the corresponding narrow caliper arrangement, with black electro-coat on the rotor surface. A rotor must suit both the mechanical installation and the rest of the braking system. Wilwood brings that system perspective to its calipers, rotors, master cylinders, valves, fittings and lines, designing and manufacturing disc brake systems for motorsport, street performance and specialized applications. Bill Wood founded the Camarillo, California company in 1977.
Technical Details
- Manufacturer part number: 160-2084
- Quantity: One rotor; not an axle pair
- Outside diameter: 10.95 inches
- Nominal thickness: 0.31 inches
- Rotor material: Steel
- Construction: Solid
- Friction surface: Drilled
- Finish: Black Electro Coat
- Approximate weight: 4.60 lb
- Factory burnished: No
- Dynamically balanced: No
- Installation orientation: Non-directional
- Rotor attachment pattern: 3 x 5.00 inches
- Rotor mounting hole / thread: 0.516 inches
- Registration / lug inside diameter: 4.10 inches
- Intended use and restrictions: For dirt racing only; not for street use.
The hat or hub, fasteners, caliper and pads are not included.
Fitment & Compatibility
Not for street use. Confirm the 3 x 5.00-inch mounting circle, 0.516-inch holes and 4.10-inch registration diameter on the racing hub.
Wilwood product specifications · Rotor dimension diagram
With over 20 years of brake experience, PMB Performance can help you compare the installed assembly with this rotor’s dimensions before ordering.
