Product details

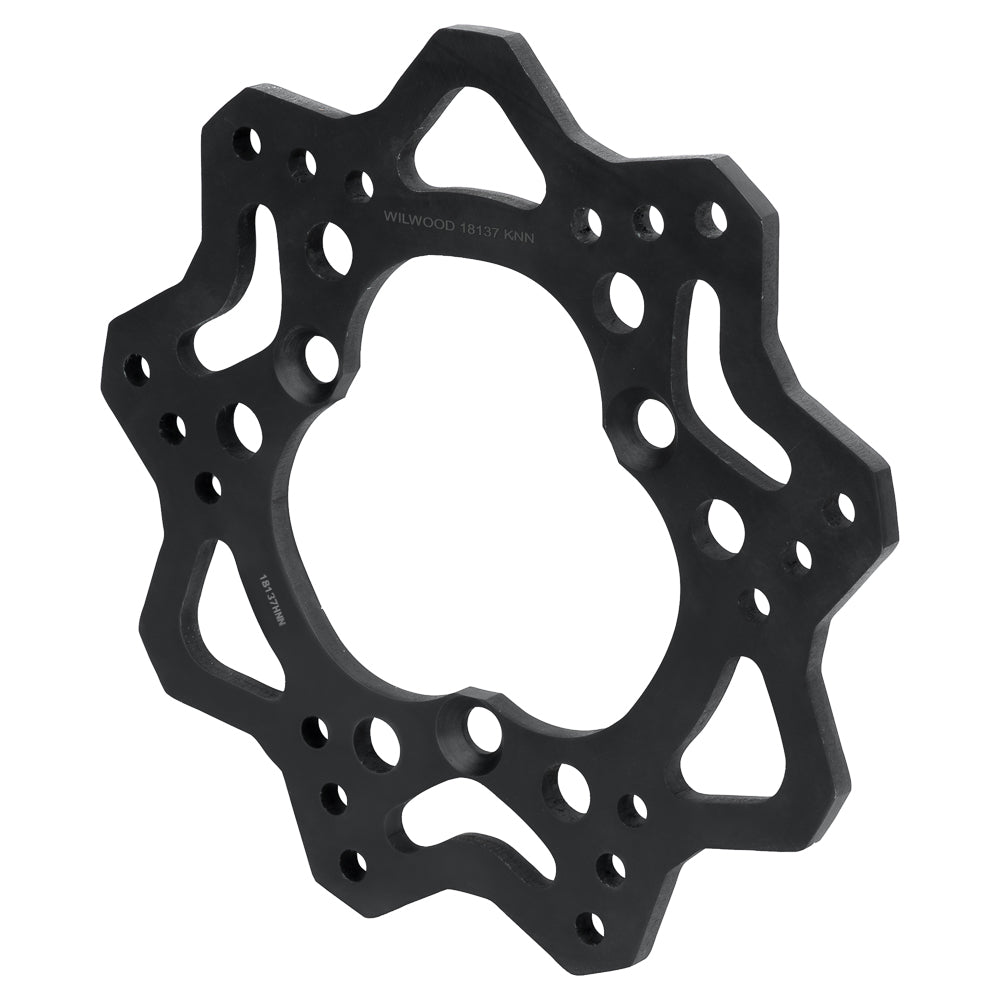

This compact dirt-racing rotor combines a scalloped steel perimeter with drilled friction faces. The 10.20-inch diameter, 0.31-inch solid section and three-hole flange create a specific lightweight racing interface rather than a general replacement disc. Founded by Bill Wood in 1977, Wilwood designs and manufactures disc brake systems in Camarillo, California. Its range includes calipers, rotors, master cylinders, valves, fittings and lines for motorsport, street performance and specialized applications. Rotor choice belongs within that complete system: the caliper, pad, mounting hardware and intended duty must work together.
Technical Details
- Manufacturer part number: 160-18137
- Quantity: One rotor; not an axle pair
- Outside diameter: 10.20 inches
- Nominal thickness: 0.31 inches
- Rotor material: Steel
- Construction: Solid
- Friction surface: Drilled
- Finish: Black Electro Coat
- Approximate weight: 3.70 lb
- Factory burnished: No
- Dynamically balanced: No
- Installation orientation: Non-directional
- Rotor attachment pattern: 3 x 5.00 inches
- Rotor mounting hole / thread: 0.516 inches
- Registration / lug inside diameter: 4.12 inches
- Intended use and restrictions: For dirt racing only; not for street use.
The hat or hub, fasteners, caliper and pads are not included.
Fitment & Compatibility
Not for street use. Match the 3 x 5.00-inch rotor mount, 0.516-inch attachment holes and 4.12-inch register to the intended dirt-racing brake assembly.
Wilwood product specifications · Rotor dimension diagram
PMB Performance brings more than 20 years of brake expertise to component selection. Contact us with your existing rotor and brake-package details if you need help checking the match.
