Product details

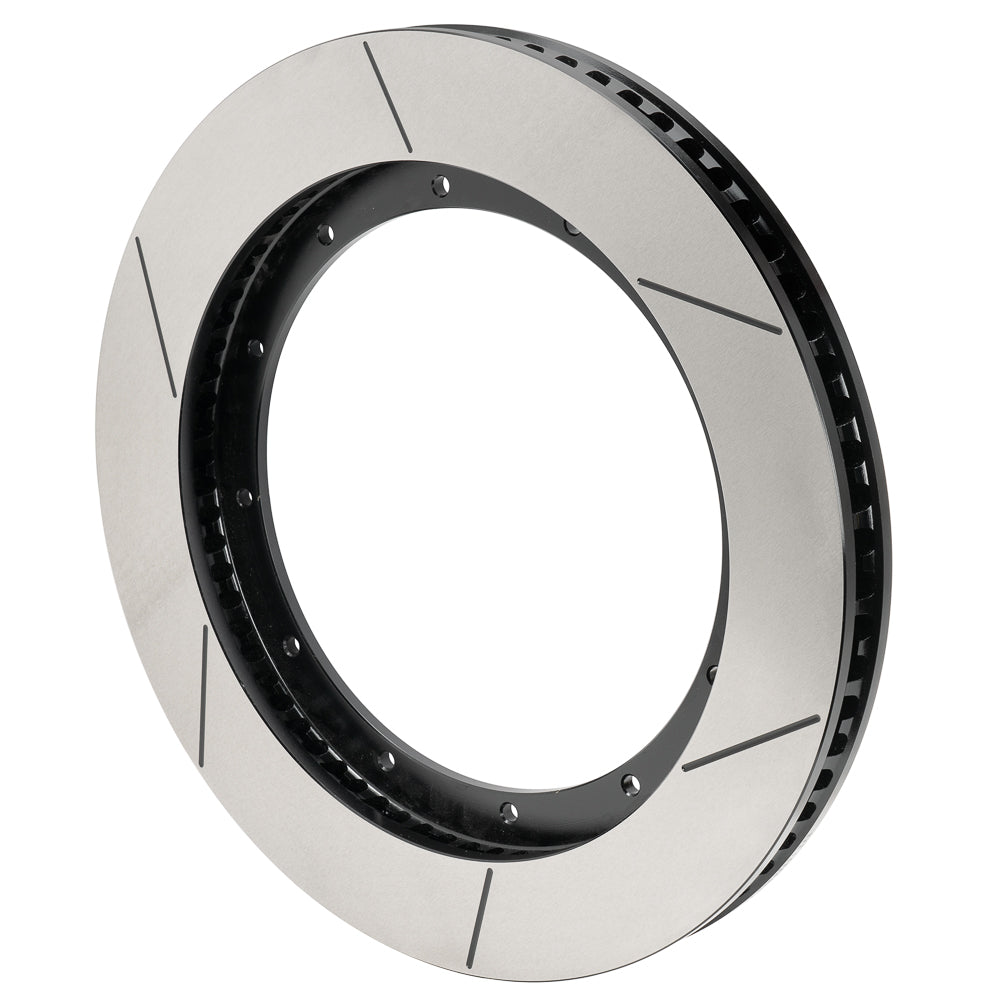

The 10.25-inch bolt circle is the crucial mounting distinction on this left-hand 16-inch GT ring. Its 1.38-inch Spec-37 casting uses 60 curved vanes and black electro-coat, with a 9.64-inch register suited to the matching separate hat. Founded by Bill Wood in 1977, Wilwood designs and manufactures disc brake systems in Camarillo, California. Its range includes calipers, rotors, master cylinders, valves, fittings and lines for motorsport, street performance and specialized applications. Rotor choice belongs within that complete system: the caliper, pad, mounting hardware and intended duty must work together.
Technical Details
- Manufacturer part number: 160-18105-GTB
- Quantity: One rotor; not an axle pair
- Outside diameter: 16.00 inches
- Nominal thickness: 1.38 inches
- Rotor material: Spec-37 Iron
- Construction: 60 curved vanes
- Friction surface: GT Slotted
- Finish: Black Electro Coat
- Approximate weight: 24.60 lb
- Factory burnished: No
- Dynamically balanced: Yes
- Installation orientation: Left-hand
- Rotor attachment pattern: 12 x 10.25 inches
- Rotor mounting hole / thread: 0.328 inches
- Registration / lug inside diameter: 9.64 inches
- Far-side inside diameter: 11.55 inches
- Opposite-hand companion rotor: 160-18104-GTB (sold separately)
- Intended use and restrictions: Suitable for high-temperature racing and street use. Spec-37 heavy-wall castings.
The hat or hub, fasteners, caliper and pads are not included.
Fitment & Compatibility
Check the twelve 0.328-inch mounting holes and 11.55-inch far-side inside diameter. The common outside size does not make it interchangeable with the 10.75-inch flange family.
Wilwood product specifications · Rotor dimension diagram
PMB Performance offers more than 20 years of brake experience and practical help with replacement parts. Contact our team if you need assistance confirming the rotor for your installation.
