Product details

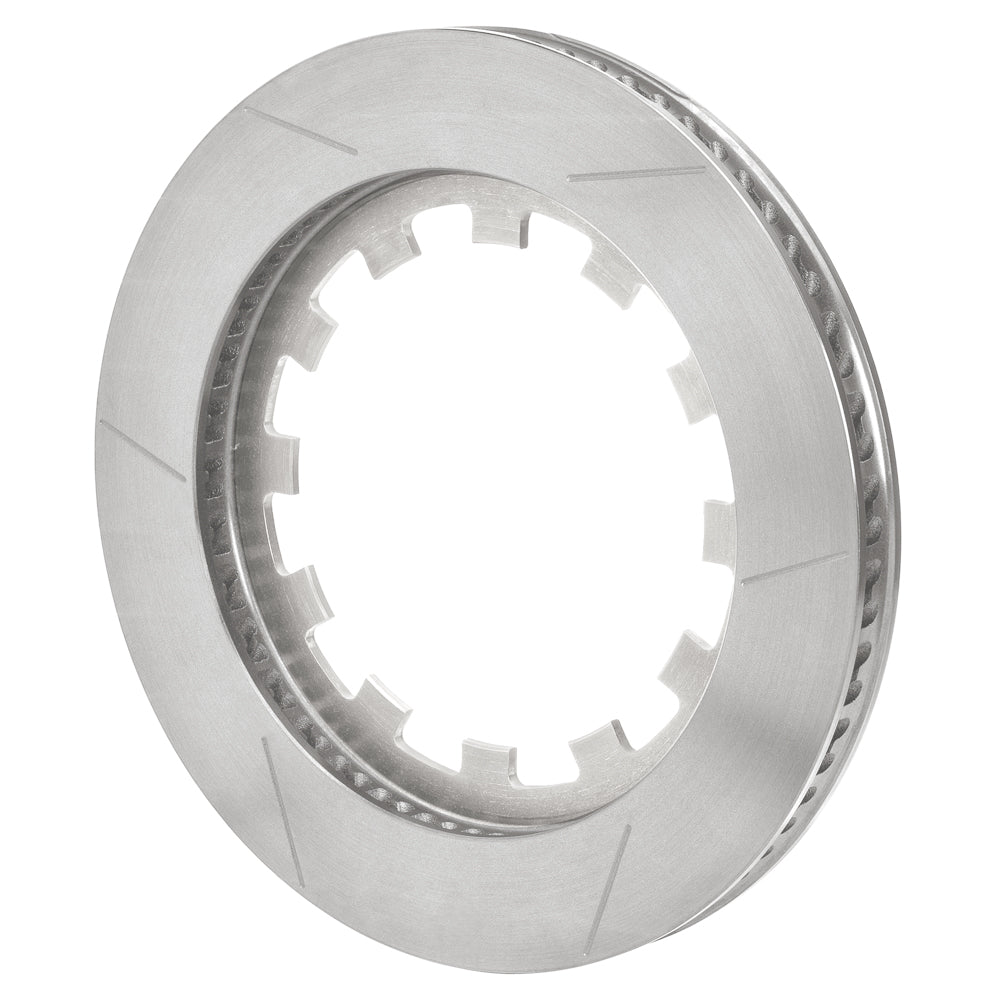

This left-hand GT casting provides a 15-inch slotted surface with a 72-vane curved core. The twelve-lug center and 8.12-inch register define its snap-ring installation, while the 1.25-inch friction section fixes the required caliper clearance. Since its founding by Bill Wood in 1977, Wilwood has designed and manufactured disc brake systems from its base in Camarillo, California. Its products span rotors, calipers, master cylinders, valves, fittings and lines for motorsport, street performance and specialized applications. Brake selection should account for the whole installation, including mounting dimensions, friction materials and hydraulic balance.
Technical Details
- Manufacturer part number: 160-18082
- Quantity: One rotor; not an axle pair
- Outside diameter: 15.00 inches
- Nominal thickness: 1.25 inches
- Rotor material: Spec-37 Iron
- Construction: 72 curved vanes
- Friction surface: GT Slotted
- Finish: Plain
- Approximate weight: 22.65 lb
- Factory burnished: No
- Dynamically balanced: Yes
- Installation orientation: Left-hand
- Rotor attachment pattern: 12 x 8.80 inches, lug/snap-ring mount
- Registration / lug inside diameter: 8.12 inches
- Far-side inside diameter: 10.60 inches
- Opposite-hand companion rotor: 160-18081 (sold separately)
- Intended use and restrictions: Suitable for high-temperature racing and street use. Spec-37 castings.
The hat or hub, fasteners, caliper and pads are not included.
Fitment & Compatibility
Confirm the left-side ring and correct retention assembly. A non-burnished supply condition still requires the manufacturer’s normal preparation of the pads and complete brake system.
Wilwood product specifications · Rotor dimension diagram
Put PMB Performance’s 20-plus years of brake knowledge to work when matching this part to your build. We can help review the dimensions and application requirements.
