Product details

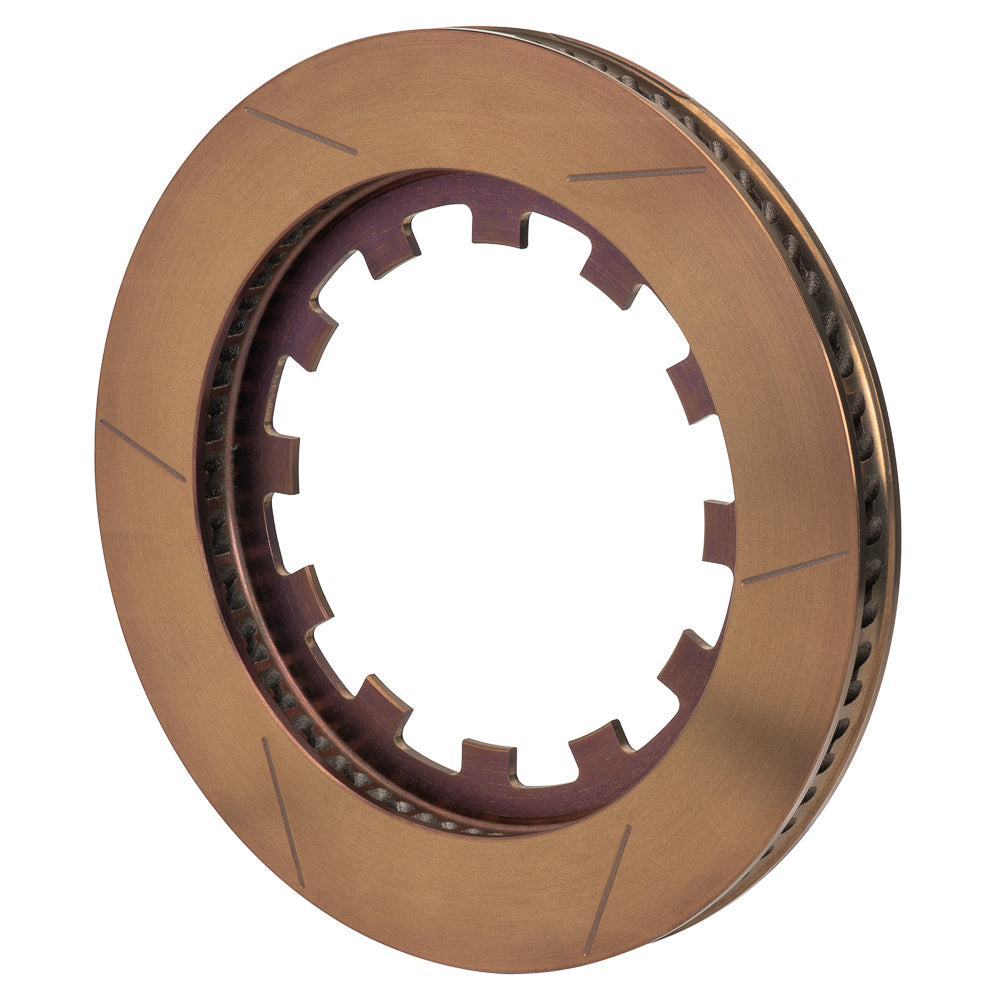

Factory burnishing prepares this right-hand 15-inch GT rotor before installation in the specified brake assembly. The Spec-37 casting retains a 1.25-inch section and twelve-lug drive interface, supported by 72 curved cooling vanes. Wilwood’s calipers, rotors, master cylinders, valves, fittings and lines support complete disc brake systems rather than an isolated component choice. Founded in 1977 by Bill Wood and based in Camarillo, California, the company designs and manufactures these systems for motorsport, street performance and specialized applications. Correct pairing of the rotor with its surrounding hardware is essential.
Technical Details
- Manufacturer part number: 160-18081-B
- Quantity: One rotor; not an axle pair
- Outside diameter: 15.00 inches
- Nominal thickness: 1.25 inches
- Rotor material: Spec-37 Iron
- Construction: 72 curved vanes
- Friction surface: GT Slotted
- Finish: Plain
- Approximate weight: 22.65 lb
- Factory burnished: Yes
- Dynamically balanced: Yes
- Installation orientation: Right-hand
- Rotor attachment pattern: 12 x 8.80 inches, lug/snap-ring mount
- Registration / lug inside diameter: 8.12 inches
- Far-side inside diameter: 10.60 inches
- Opposite-hand companion rotor: 160-18082-B (sold separately)
- Intended use and restrictions: Suitable for high-temperature racing and street use. Spec-37 castings.
The hat or hub, fasteners, caliper and pads are not included.
Fitment & Compatibility
Use the 8.80-inch lug-drive carrier and verify the 8.12-inch register. Follow the required pad preparation and assembled-system break-in instructions.
Wilwood product specifications · Rotor dimension diagram
Put PMB Performance’s 20-plus years of brake knowledge to work when matching this part to your build. We can help review the dimensions and application requirements.
