Product details

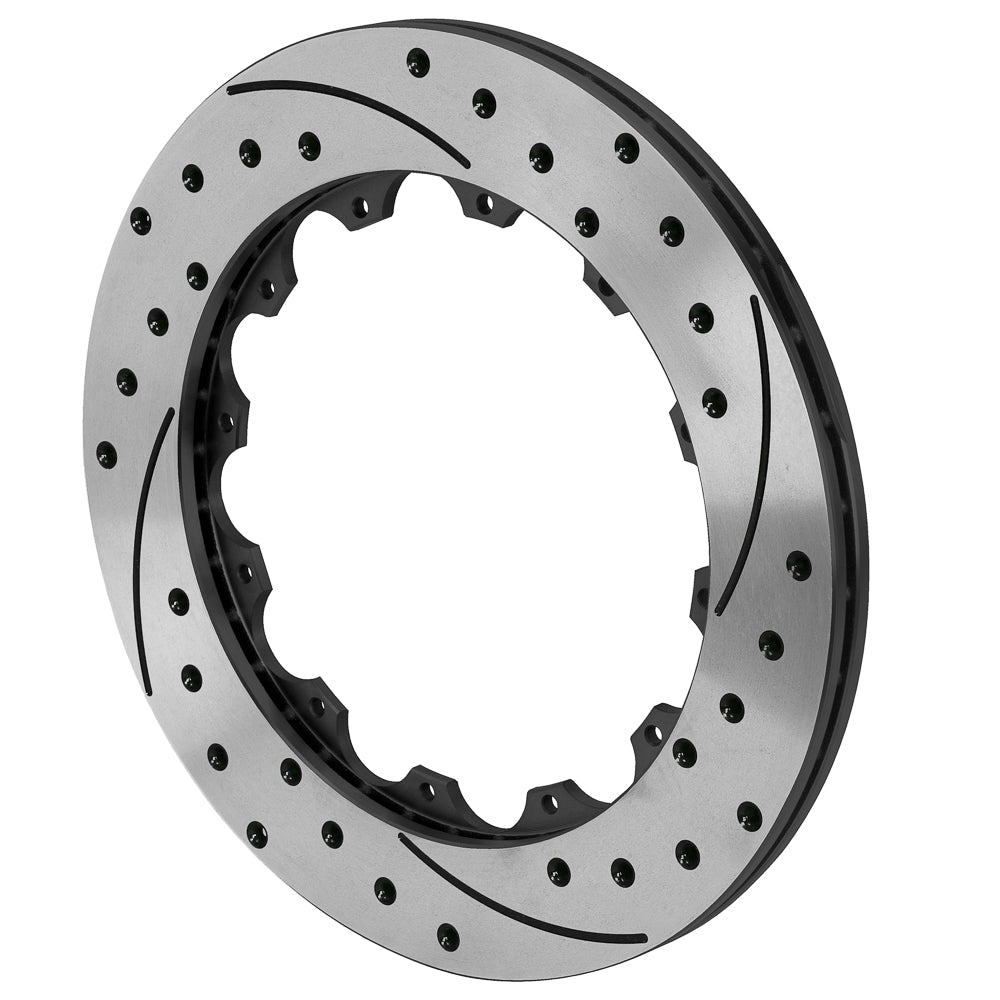

This SRP ring is the right-hand rotor named in the matching Wilwood rear-kit component lists. Its 36 straight vanes are non-directional internally, while the drilled-and-slotted face pattern determines the side-specific replacement within those kits. Disc brake systems have been Wilwood’s focus since Bill Wood founded the company in 1977. Based in Camarillo, California, Wilwood designs and manufactures calipers, rotors, master cylinders, valves, fittings and lines for motorsport, street performance and specialized applications. The rotor is one part of that system and needs compatible pads, calipers and mounting components.
Technical Details
- Manufacturer part number: 160-18050-BK
- Quantity: One rotor; not an axle pair
- Outside diameter: 13.50 inches
- Nominal thickness: 0.81 inches
- Rotor material: Iron
- Construction: 36 vanes
- Friction surface: SRP Drilled & Slotted
- Finish: Black Electro Coat
- Approximate weight: 12.50 lb
- Factory burnished: No
- Dynamically balanced: Yes
- Installation orientation: Right-hand in the specified rear kits; 36 straight vanes
- Rotor attachment pattern: 12 x 8.75 inches
- Rotor mounting hole / thread: 0.251 inches
- Registration / lug inside diameter: 8.25 inches
- Far-side inside diameter: 9.50 inches
- Opposite-hand companion rotor: 160-18051-BK (sold separately)
The hat or hub, fasteners, caliper and pads are not included.
Fitment & Compatibility
Confirm the exact rear conversion, including the separate hat and 8.25-inch register. The rotor page’s Non_Direct entry describes the straight-vane layout; current kit listings assign this part to the right side.
Wilwood product specifications · Rotor dimension diagram
PMB Performance has supported brake projects for more than 20 years. Our team can help identify the correct replacement when your caliper, hat or hub configuration needs a closer look.
