Product details

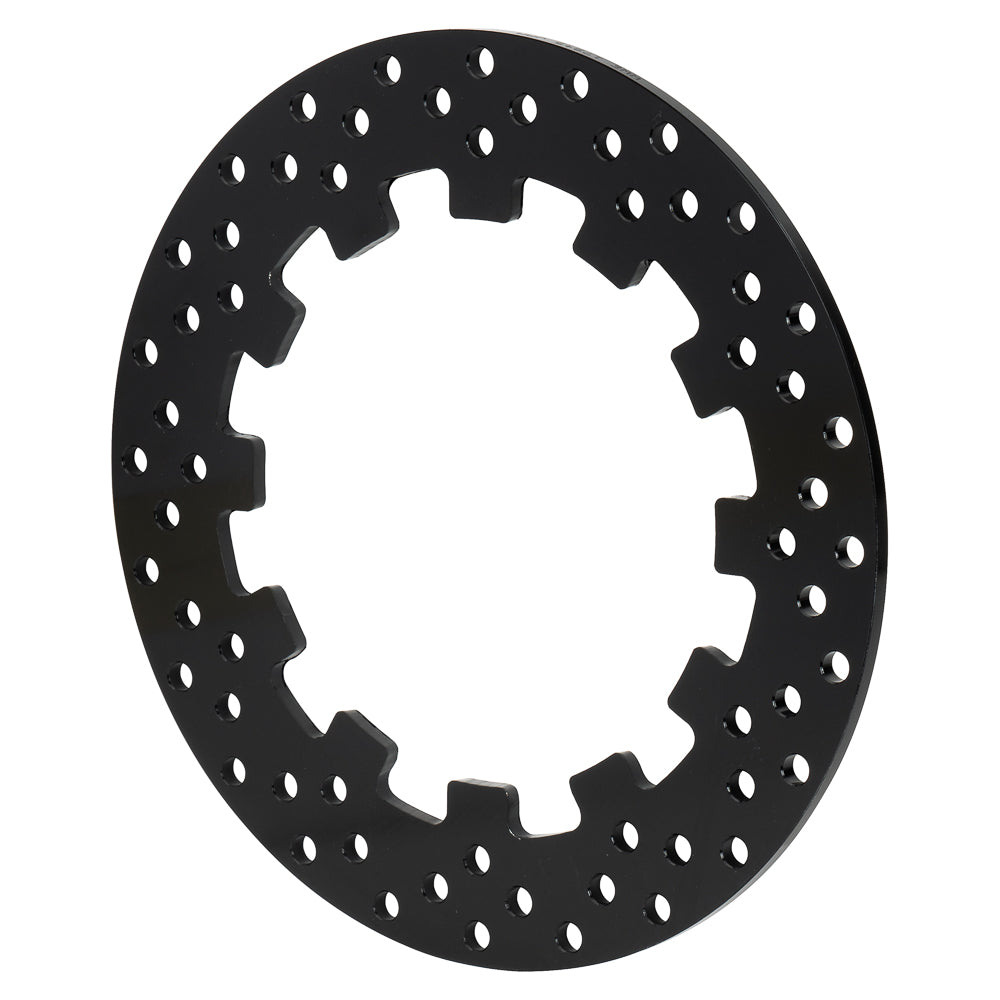

A drilled face differentiates this steel UTV rotor while its twelve-lug center retains the required carrier connection. The 11.60-inch ring is a solid 0.25-inch section, so the caliper and retention hardware must be selected for those dimensions. Camarillo, California is home to Wilwood, founded by Bill Wood in 1977. The company designs and manufactures disc brake systems for motorsport, street performance and specialized applications, supplying rotors, calipers, master cylinders, valves, fittings and lines. Matching the rotor to the complete assembly matters as much as selecting its diameter or surface treatment.
Technical Details
- Manufacturer part number: 160-17943
- Quantity: One rotor; not an axle pair
- Outside diameter: 11.60 inches
- Nominal thickness: 0.25 inches
- Rotor material: Steel
- Construction: Solid
- Friction surface: Drilled
- Finish: Black Electro Coat
- Approximate weight: 4.77 lb
- Factory burnished: No
- Dynamically balanced: No
- Installation orientation: Non-directional
- Rotor attachment pattern: 12 x 7.77 inches, lug/snap-ring mount
- Registration / lug inside diameter: 7.09 inches
- Intended use and restrictions: For compatible UTV brake assemblies.
The hat or hub, fasteners, caliper and pads are not included.
Fitment & Compatibility
Match the 7.09-inch register and 7.77-inch drive circle. Use the specified lug-drive retention parts, rather than treating the rotor as a bolted ring.
