Product details

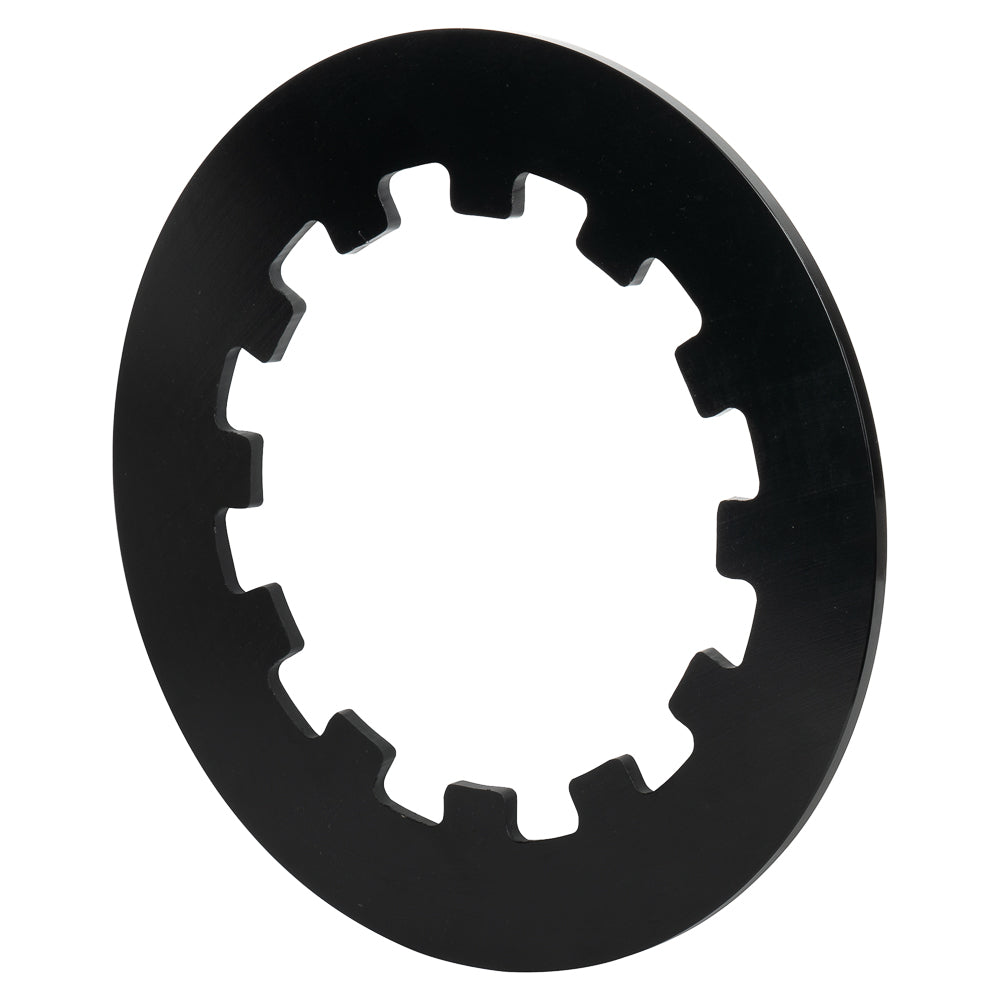

Twelve internal drive lugs distinguish this UTV rotor from the eight-lug 11.25-inch version. Its solid steel ring measures 11.60 inches across and 0.25 inch thick, with a plain pad surface and a black protective finish. Bill Wood established Wilwood in 1977. From Camarillo, California, the company designs and manufactures disc brake systems covering motorsport, street performance and specialized applications, with calipers, rotors, master cylinders, valves, fittings and lines in its product range. This rotor should be selected with the mounting arrangement, friction compound and hydraulic system in mind.
Technical Details
- Manufacturer part number: 160-17942
- Quantity: One rotor; not an axle pair
- Outside diameter: 11.60 inches
- Nominal thickness: 0.25 inches
- Rotor material: Steel
- Construction: Solid
- Friction surface: Plain Face
- Finish: Black Electro Coat
- Approximate weight: 4.70 lb
- Factory burnished: No
- Dynamically balanced: No
- Installation orientation: Non-directional
- Rotor attachment pattern: 12 x 7.77 inches, lug/snap-ring mount
- Registration / lug inside diameter: 7.09 inches
- Intended use and restrictions: For compatible UTV brake assemblies.
The hat or hub, fasteners, caliper and pads are not included.
Fitment & Compatibility
Verify the 7.77-inch lug circle and 7.09-inch register against the intended UTV brake carrier. The attachment interface is not a twelve-hole wheel pattern.
Wilwood product specifications · Rotor dimension diagram
With over 20 years of brake experience, PMB Performance can help you compare the installed assembly with this rotor’s dimensions before ordering.
