Product details

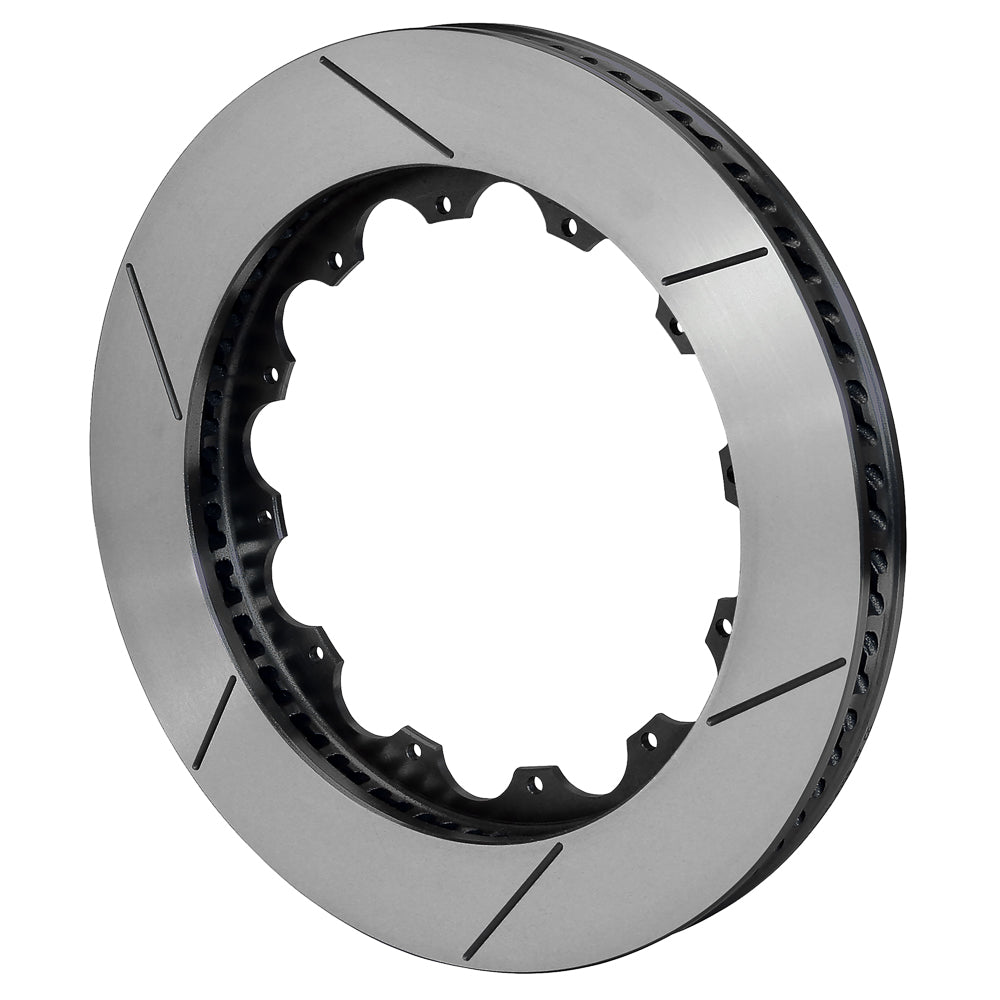

The left-side version of this 72-vane iron rotor maintains a 1.10-inch friction section and black electro-coat finish. Its 14-inch diameter and twelve-on-8.75-inch mounting flange describe only part of the fit; the inner clearances also need to match the original ring. Founded by Bill Wood in 1977, Wilwood designs and manufactures disc brake systems in Camarillo, California. Its range includes calipers, rotors, master cylinders, valves, fittings and lines for motorsport, street performance and specialized applications. Rotor choice belongs within that complete system: the caliper, pad, mounting hardware and intended duty must work together.
Technical Details
- Manufacturer part number: 160-17708-GTB
- Quantity: One rotor; not an axle pair
- Outside diameter: 14.00 inches
- Nominal thickness: 1.10 inches
- Rotor material: Iron
- Construction: 72 vanes
- Friction surface: GT Slotted
- Finish: Black Electro Coat
- Approximate weight: 17.30 lb
- Factory burnished: No
- Dynamically balanced: Yes
- Installation orientation: Left-hand
- Rotor attachment pattern: 12 x 8.75 inches
- Registration / lug inside diameter: 8.25 inches
- Far-side inside diameter: 9.37 inches
- Opposite-hand companion rotor: 160-17707-GTB (sold separately)
- Intended use and restrictions: Heavy-duty iron construction with 72 vanes.
The hat or hub, fasteners, caliper and pads are not included.
Fitment & Compatibility
Check the 9.37-inch far-side inside diameter and 8.25-inch center register. Use the correct left-hand curved-vane orientation and the specified separate hat.
Wilwood product specifications · Rotor dimension diagram
PMB Performance brings more than 20 years of brake expertise to component selection. Contact us with your existing rotor and brake-package details if you need help checking the match.
