Product details

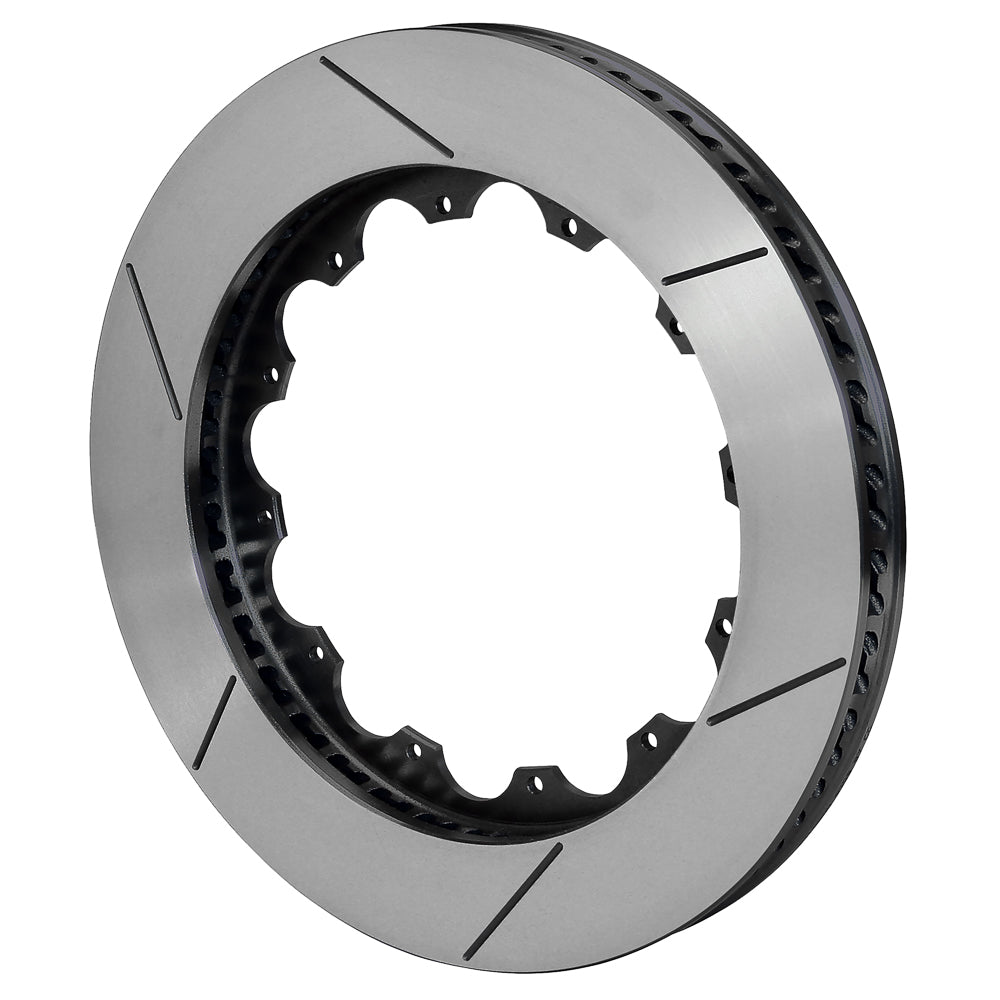

This right-hand GT rotor combines a 14-inch diameter with the narrower 1.10-inch friction section. The 72-vane iron casting is black electro-coated and uses a twelve-hole flange, with a 9.37-inch far-side inside diameter that matters when checking clearance. Founded in 1977, Bill Wood’s Wilwood is based in Camarillo, California and designs and manufactures disc brake systems for motorsport, street performance and specialized applications. Its range runs from calipers and rotors to master cylinders, valves, fittings and lines. Choosing a rotor involves matching those surrounding components as well as the vehicle’s intended use.
Technical Details
- Manufacturer part number: 160-17707-GTB
- Quantity: One rotor; not an axle pair
- Outside diameter: 14.00 inches
- Nominal thickness: 1.10 inches
- Rotor material: Iron
- Construction: 72 vanes
- Friction surface: GT Slotted
- Finish: Black Electro Coat
- Approximate weight: 17.30 lb
- Factory burnished: No
- Dynamically balanced: Yes
- Installation orientation: Right-hand
- Rotor attachment pattern: 12 x 8.75 inches
- Registration / lug inside diameter: 8.25 inches
- Far-side inside diameter: 9.37 inches
- Opposite-hand companion rotor: 160-17708-GTB (sold separately)
- Intended use and restrictions: Heavy-duty iron construction with 72 vanes.
The hat or hub, fasteners, caliper and pads are not included.
Fitment & Compatibility
Match the exact iron ring specified by the installed brake package. Other 14-inch GT rotors can share the attachment circle while differing in material designation or internal clearance.
