Product details

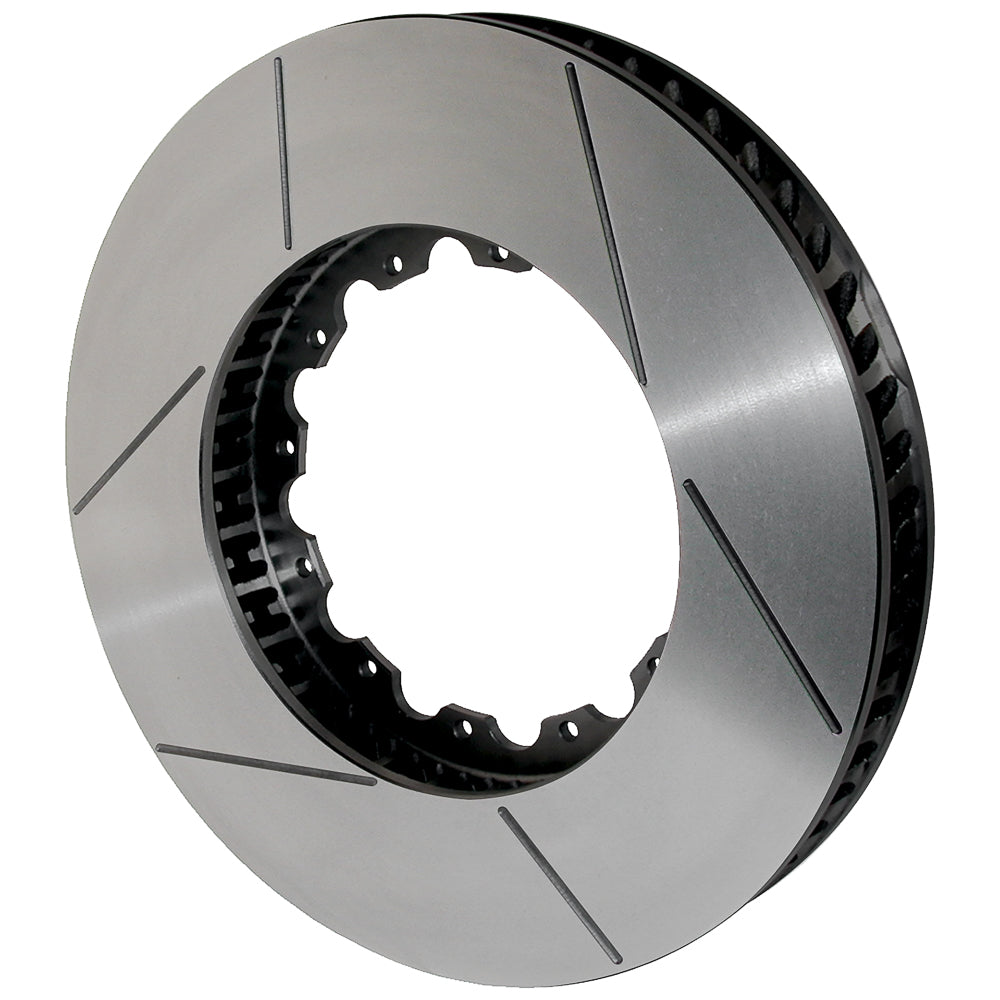

The 15.35-inch diameter and 1.42-inch section make this GT rotor a specific large-ring configuration. Its right-hand curved-vane design uses 60 vanes, with a twelve-hole mounting circle of 8.60 inches rather than the more common 8.75-inch dimension. Since its founding by Bill Wood in 1977, Wilwood has designed and manufactured disc brake systems from its base in Camarillo, California. Its products span rotors, calipers, master cylinders, valves, fittings and lines for motorsport, street performance and specialized applications. Brake selection should account for the whole installation, including mounting dimensions, friction materials and hydraulic balance.
Technical Details
- Manufacturer part number: 160-17705-GTB
- Quantity: One rotor; not an axle pair
- Outside diameter: 15.35 inches
- Nominal thickness: 1.42 inches
- Rotor material: Iron
- Construction: 60 vanes
- Friction surface: GT Slotted
- Finish: Black Electro Coat
- Approximate weight: 30.65 lb
- Factory burnished: No
- Dynamically balanced: Yes
- Installation orientation: Right-hand
- Rotor attachment pattern: 12 x 8.60 inches
- Registration / lug inside diameter: 8.10 inches
- Far-side inside diameter: 9.10 inches
- Opposite-hand companion rotor: 160-17706-GTB (sold separately)
- Intended use and restrictions: Heavy-duty iron construction with 60 vanes.
The hat or hub, fasteners, caliper and pads are not included.
Fitment & Compatibility
Check the hat flange, 8.10-inch registration diameter and caliper sweep together. Use the right-side orientation prescribed for the existing brake package.
