Product details

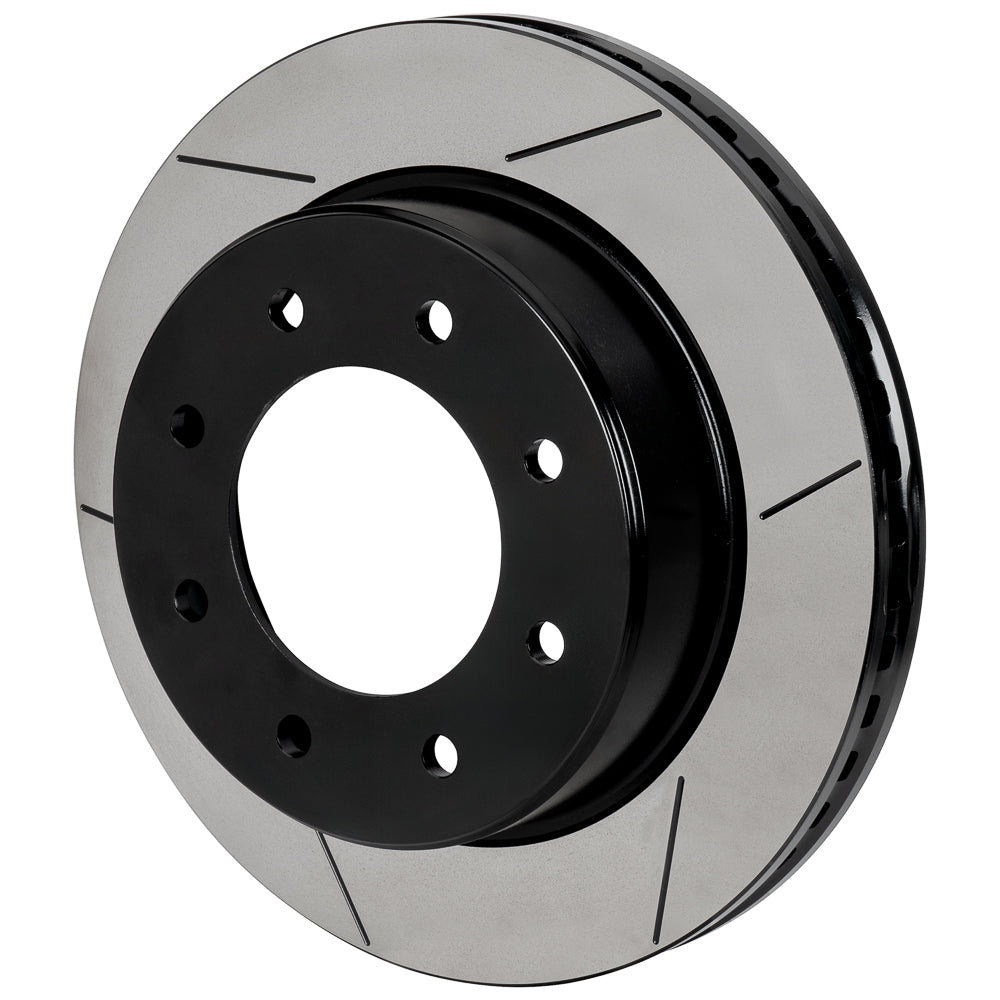

A 4.84-inch center register and eight-on-6.50-inch stud layout identify the Ram version of this 15-inch GT truck rotor. Its 1.50-inch friction section and 2.000-inch offset must match the corresponding TX6-DM front assembly. Wilwood’s calipers, rotors, master cylinders, valves, fittings and lines support complete disc brake systems rather than an isolated component choice. Founded in 1977 by Bill Wood and based in Camarillo, California, the company designs and manufactures these systems for motorsport, street performance and specialized applications. Correct pairing of the rotor with its surrounding hardware is essential.
Technical Details
- Manufacturer part number: 160-17601-GTB
- Quantity: One rotor; not an axle pair
- Outside diameter: 15.00 inches
- Nominal thickness: 1.50 inches
- Rotor material: Iron
- Construction: 48 vanes
- Friction surface: GT Slotted
- Finish: Black Electro Coat
- Approximate weight: 42.00 lb
- Factory burnished: No
- Installation orientation: Non-directional
- Registration / lug inside diameter: 4.84 inches
- Far-side inside diameter: 10.62 inches
- Rotor offset: 2.000 inches
- Internal clearance diameter: 8.80 inches
- Mounting-face thickness: 0.40 inches
- Hat wheel-stud clearance pattern: 8 x 6.50 inches
- Wheel-stud clearance hole diameter: 0.64 inches
The integral hat is part of the rotor; caliper, pads, parking-brake mechanism and installation hardware are separate.
Fitment & Compatibility
Use the qualified 2014–2023 Ram 2500/3500 application in DS1584 and confirm the actual kit. This rotor’s wheel-stud clearances do not make the similar-diameter Ford or GM castings interchangeable.
Wilwood product specifications · Rotor dimension diagram · Installation reference DS1584
Put PMB Performance’s 20-plus years of brake knowledge to work when matching this part to your build. We can help review the dimensions and application requirements.
