Product details

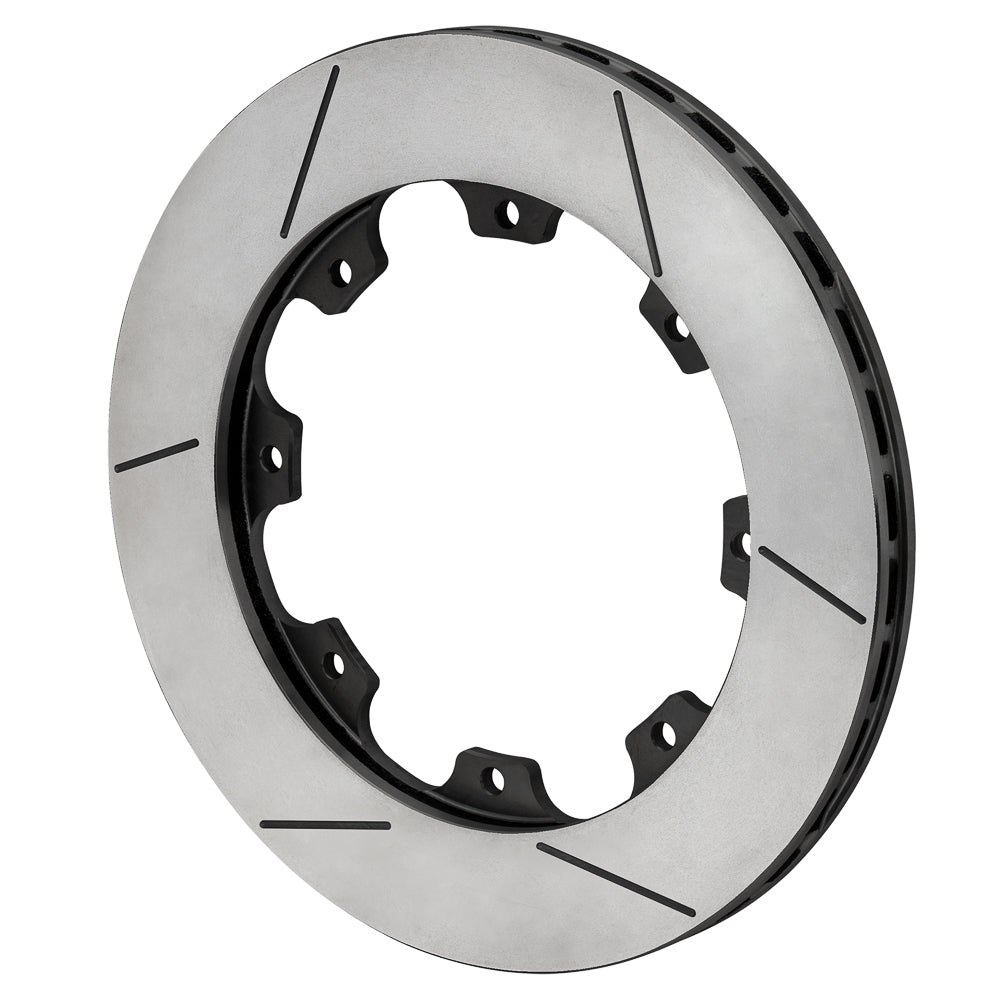

The GT slotted surface gives this right-hand 11.38-inch rotor an alternative to the drilled SRP version. Its iron casting uses 36 curved cooling vanes and a 0.81-inch section, with black electro-coat on exposed areas. Disc brake systems have been Wilwood’s focus since Bill Wood founded the company in 1977. Based in Camarillo, California, Wilwood designs and manufactures calipers, rotors, master cylinders, valves, fittings and lines for motorsport, street performance and specialized applications. The rotor is one part of that system and needs compatible pads, calipers and mounting components.
Technical Details
- Manufacturer part number: 160-17517-GTB
- Quantity: One rotor; not an axle pair
- Outside diameter: 11.38 inches
- Nominal thickness: 0.81 inches
- Rotor material: Iron
- Construction: 36 curved vanes
- Friction surface: GT Slotted
- Finish: Black Electro Coat
- Approximate weight: 8.60 lb
- Factory burnished: No
- Dynamically balanced: Yes
- Installation orientation: Right-hand
- Rotor attachment pattern: 8 x 7.00 inches
- Rotor mounting hole / thread: 0.326 inches
- Registration / lug inside diameter: 6.38 inches
- Far-side inside diameter: 7.87 inches
- Opposite-hand companion rotor: 160-17518-GTB (sold separately)
The hat or hub, fasteners, caliper and pads are not included.
Fitment & Compatibility
Match the eight-on-7.00-inch rotor connection and the installed caliper’s sweep. Confirm right-hand orientation and the 7.87-inch far-side clearance dimension.
Wilwood product specifications · Rotor dimension diagram
PMB Performance has supported brake projects for more than 20 years. Our team can help identify the correct replacement when your caliper, hat or hub configuration needs a closer look.
