Product details

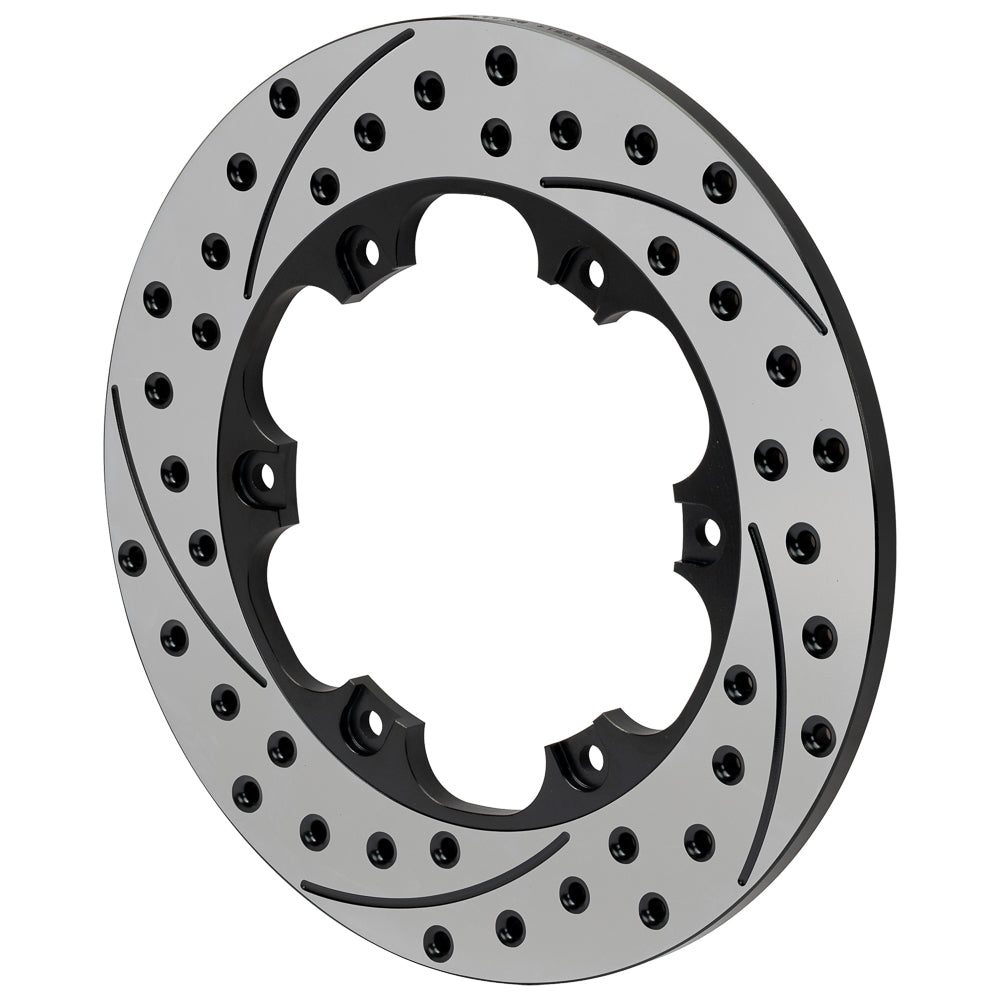

A left-hand SRP surface pattern distinguishes this solid iron ring from its right-side companion. At 10.85 inches in diameter and 0.39 inch thick, it is a compact rotor choice for the approved street or moderate road-course package. Bill Wood established Wilwood in 1977. From Camarillo, California, the company designs and manufactures disc brake systems covering motorsport, street performance and specialized applications, with calipers, rotors, master cylinders, valves, fittings and lines in its product range. This rotor should be selected with the mounting arrangement, friction compound and hydraulic system in mind.
Technical Details
- Manufacturer part number: 160-17514-BK
- Quantity: One rotor; not an axle pair
- Outside diameter: 10.85 inches
- Nominal thickness: 0.39 inches
- Rotor material: Iron
- Construction: Solid
- Friction surface: SRP Drilled & Slotted
- Finish: Black Electro Coat
- Approximate weight: 6.30 lb
- Factory burnished: No
- Dynamically balanced: No
- Installation orientation: Left-hand
- Rotor attachment pattern: 6 x 6.25 inches
- Rotor mounting hole / thread: 0.316 inches
- Registration / lug inside diameter: 5.59 inches
- Far-side inside diameter: 7.36 inches
- Opposite-hand companion rotor: 160-17513-BK (sold separately)
- Intended use and restrictions: For street and moderate road-course use.
The hat or hub, fasteners, caliper and pads are not included.
Fitment & Compatibility
Confirm the caliper is intended for the thin solid ring and check the 0.316-inch attachment holes. A six-on-6.25-inch rotor flange does not specify the vehicle’s wheel bolt pattern.
Wilwood product specifications · Rotor dimension diagram
With over 20 years of brake experience, PMB Performance can help you compare the installed assembly with this rotor’s dimensions before ordering.
