Product details

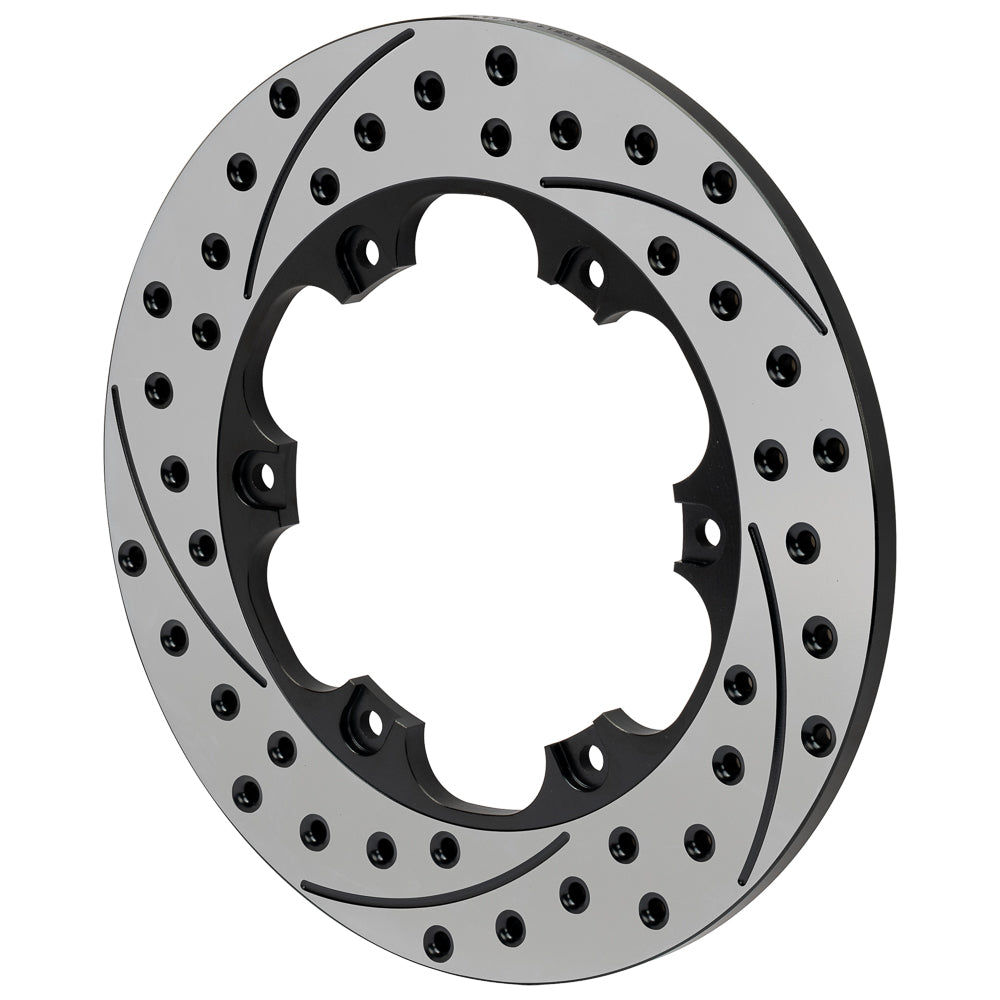

The drilled-and-slotted face makes this right-hand rotor the SRP option in the solid 10.85-inch family. Its 0.39-inch iron section has no cooling vanes, so correct caliper thickness and the package’s intended duty remain essential selection checks. A rotor must suit both the mechanical installation and the rest of the braking system. Wilwood brings that system perspective to its calipers, rotors, master cylinders, valves, fittings and lines, designing and manufacturing disc brake systems for motorsport, street performance and specialized applications. Bill Wood founded the Camarillo, California company in 1977.
Technical Details
- Manufacturer part number: 160-17513-BK
- Quantity: One rotor; not an axle pair
- Outside diameter: 10.85 inches
- Nominal thickness: 0.39 inches
- Rotor material: Iron
- Construction: Solid
- Friction surface: SRP Drilled & Slotted
- Finish: Black Electro Coat
- Approximate weight: 6.30 lb
- Factory burnished: No
- Dynamically balanced: No
- Installation orientation: Right-hand
- Rotor attachment pattern: 6 x 6.25 inches
- Rotor mounting hole / thread: 0.316 inches
- Registration / lug inside diameter: 5.59 inches
- Far-side inside diameter: 7.36 inches
- Opposite-hand companion rotor: 160-17514-BK (sold separately)
- Intended use and restrictions: For street and moderate road-course use.
The hat or hub, fasteners, caliper and pads are not included.
Fitment & Compatibility
Match the six-hole, 6.25-inch attachment circle and 5.59-inch register. Right-hand assignment refers to the surface orientation even though the ring is solid.
Wilwood product specifications · Rotor dimension diagram
With over 20 years of brake experience, PMB Performance can help you compare the installed assembly with this rotor’s dimensions before ordering.
