Product details

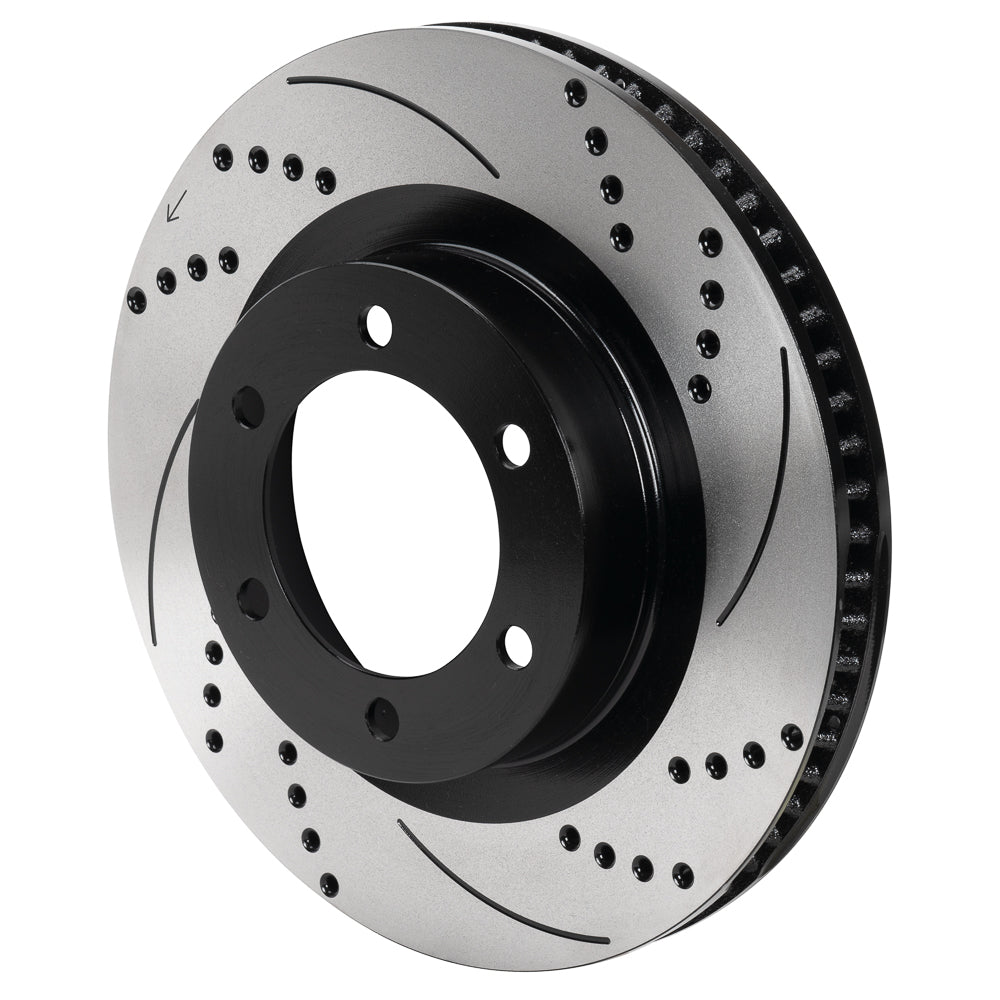

On the left side of the matching Toyota front conversion, this SRP rotor preserves both the directional face pattern and required hat offset. Its 13.56-inch iron ring is cast around a 1.440-inch-offset center with six wheel-stud clearance holes. A well-matched brake installation starts with compatible components. Wilwood designs and manufactures disc brake systems that include calipers, rotors, master cylinders, valves, fittings and lines, serving motorsport, street performance and specialized applications. Bill Wood founded the company in 1977 in Camarillo, California; this rotor should be evaluated as part of the complete braking package.
Technical Details
- Manufacturer part number: 160-17453-BK
- Quantity: One rotor; not an axle pair
- Outside diameter: 13.56 inches
- Nominal thickness: 1.30 inches
- Rotor material: Iron
- Construction: 48 vanes
- Friction surface: SRP Drilled & Slotted
- Finish: Black Electro Coat
- Approximate weight: 31.00 lb
- Factory burnished: No
- Dynamically balanced: Yes
- Installation orientation: Left-hand
- Registration / lug inside diameter: 3.82 inches
- Far-side inside diameter: 8.31 inches
- Rotor offset: 1.440 inches
- Internal clearance diameter: 7.10 inches
- Mounting-face thickness: 0.25 inches
- Hat wheel-stud clearance pattern: 6 x 5.50 inches
- Wheel-stud clearance hole diameter: 0.61 inches
- Opposite-hand companion rotor: 160-17452-BK (sold separately)
The integral hat is part of the rotor; caliper, pads, parking-brake mechanism and installation hardware are separate.
Fitment & Compatibility
Use DS1562 to verify the qualified LC300/Tundra brake package and spindle configuration. The integral hat’s 3.82-inch register must match the vehicle connection.
Wilwood product specifications · Installation reference DS1562
