Product details

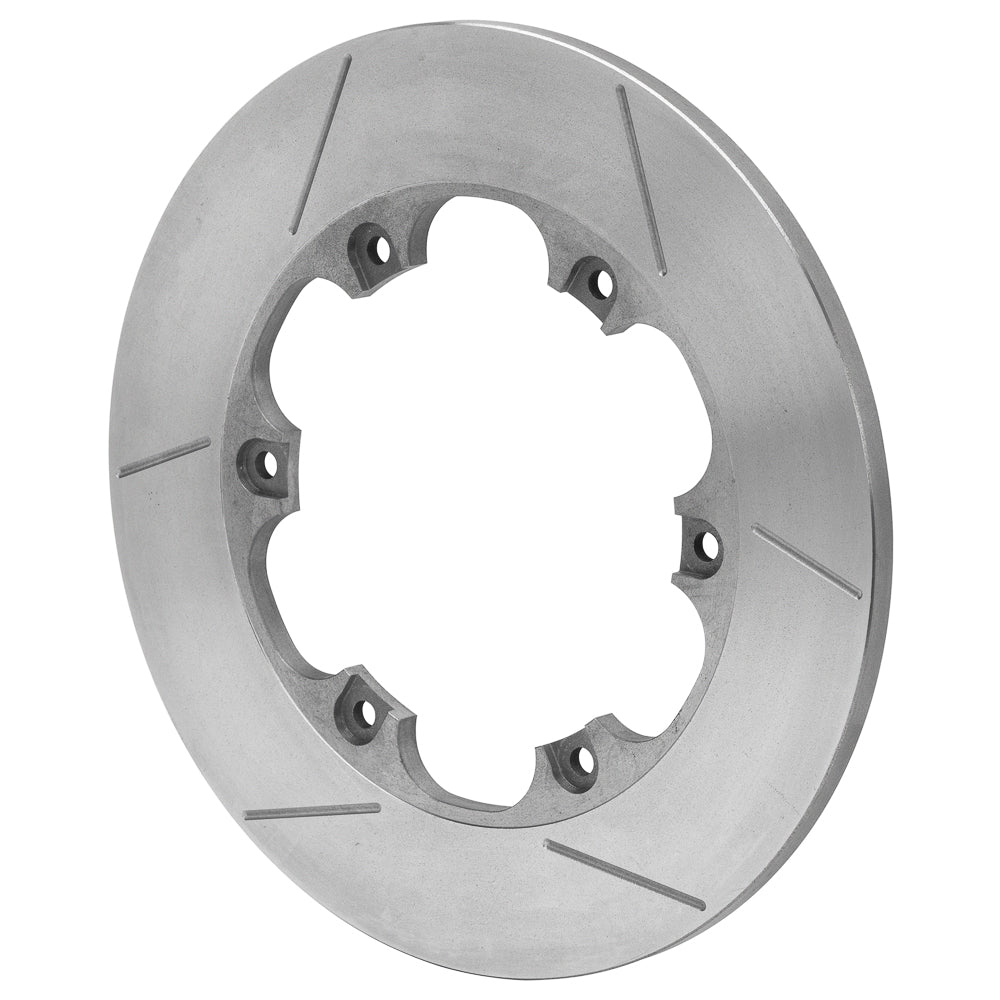

GT slots add a machined contact pattern to this otherwise solid 10.85-inch iron rotor. It retains the 0.39-inch thickness and six-hole mounting flange of the corresponding plain ring, so the caliper and carrier must be selected for that thin section. Established in 1977 by Bill Wood, Wilwood develops its range around complete disc brake systems. The Camarillo, California manufacturer designs and manufactures calipers, rotors, master cylinders, valves, fittings and lines for motorsport, street performance and specialized applications. Installation geometry, pad selection and braking duty should be considered together when choosing this component.
Technical Details
- Manufacturer part number: 160-17388
- Quantity: One rotor; not an axle pair
- Outside diameter: 10.85 inches
- Nominal thickness: 0.39 inches
- Rotor material: Iron
- Construction: Solid
- Friction surface: GT Slotted
- Finish: Plain
- Approximate weight: 6.45 lb
- Factory burnished: No
- Dynamically balanced: No
- Installation orientation: Non-directional
- Rotor attachment pattern: 6 x 6.25 inches
- Rotor mounting hole / thread: 0.316 inches
- Registration / lug inside diameter: 5.59 inches
- Far-side inside diameter: 7.36 inches
- Intended use and restrictions: For street and moderate road-course use.
The hat or hub, fasteners, caliper and pads are not included.
Fitment & Compatibility
Verify the 5.59-inch register and 0.316-inch attachment holes. The six-on-6.25-inch mounting circle connects to the rotor carrier and is not a vehicle wheel pattern.
Wilwood product specifications · Rotor dimension diagram
