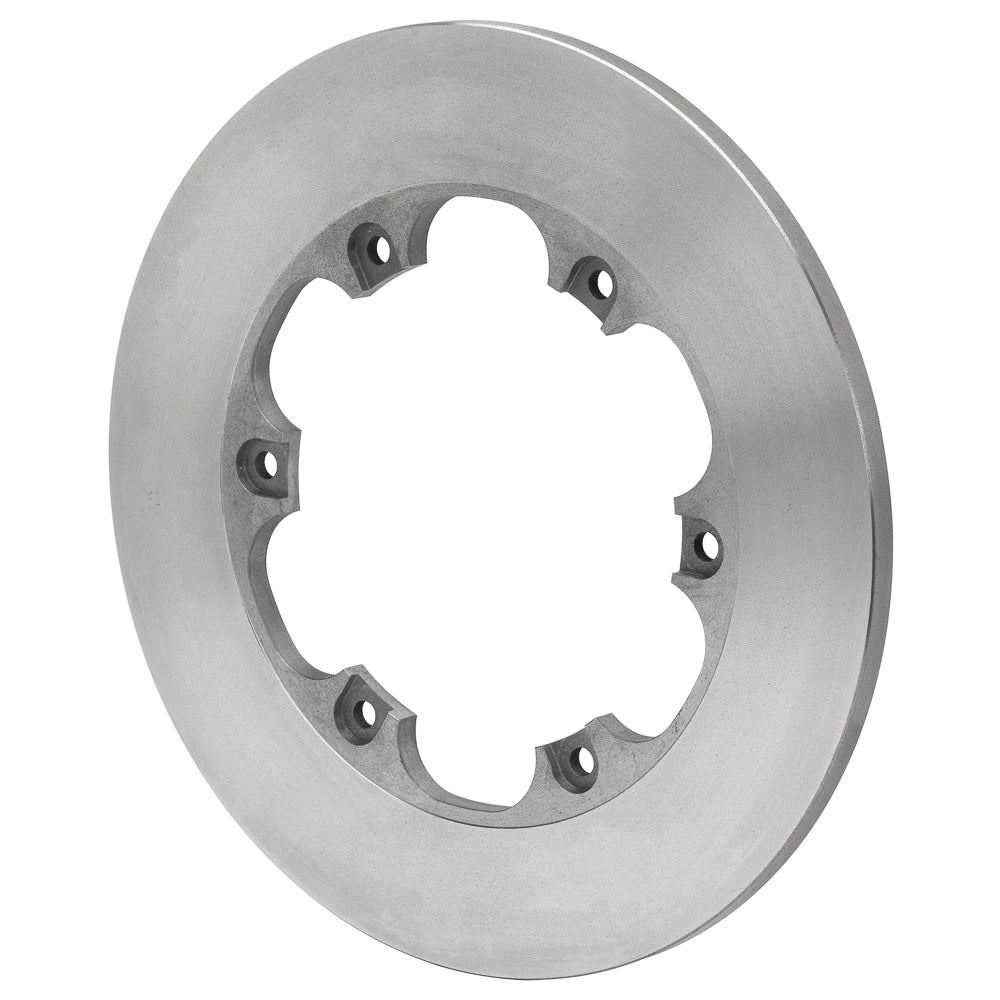

Wilwood Solid Iron Plain Rotor, 10.85 x 0.39 Inches, Six-Bolt Mount

This solid iron ring provides a 10.85-inch friction diameter without internal cooling vanes. The 0.39-inch section and six-bolt flange suit a matching compact brake assembly, with plain pad faces rather than slots or drilling. System compatibility is central to choosing a replacement rotor, including its relationship to the caliper, pad and mounting hardware. Wilwood designs and manufactures disc brake systems in Camarillo, California, offering calipers, rotors, master cylinders, valves, fittings and lines across motorsport, street performance and specialized applications. The company was founded in 1977 by Bill Wood.

Technical Details

• Manufacturer part number: 160-17386
• Quantity: One rotor; not an axle pair
• Outside diameter: 10.85 inches
• Nominal thickness: 0.39 inches
• Rotor material: Iron
• Construction: Solid
• Friction surface: Plain Face
• Finish: Plain
• Approximate weight: 6.45 lb
• Factory burnished: No
• Dynamically balanced: No
• Installation orientation: Non-directional
• Rotor attachment pattern: 6 x 6.25 inches
• Rotor mounting hole / thread: 0.316 inches
• Registration / lug inside diameter: 5.59 inches
• Far-side inside diameter: 7.36 inches
• Intended use and restrictions: For street and moderate road-course use.

The hat or hub, fasteners, caliper and pads are not included.

Fitment & Compatibility

Match the 6 x 6.25-inch rotor connection, 5.59-inch register and caliper clearance. Wilwood identifies suitable street and moderate road-course use, subject to a properly matched complete system.
