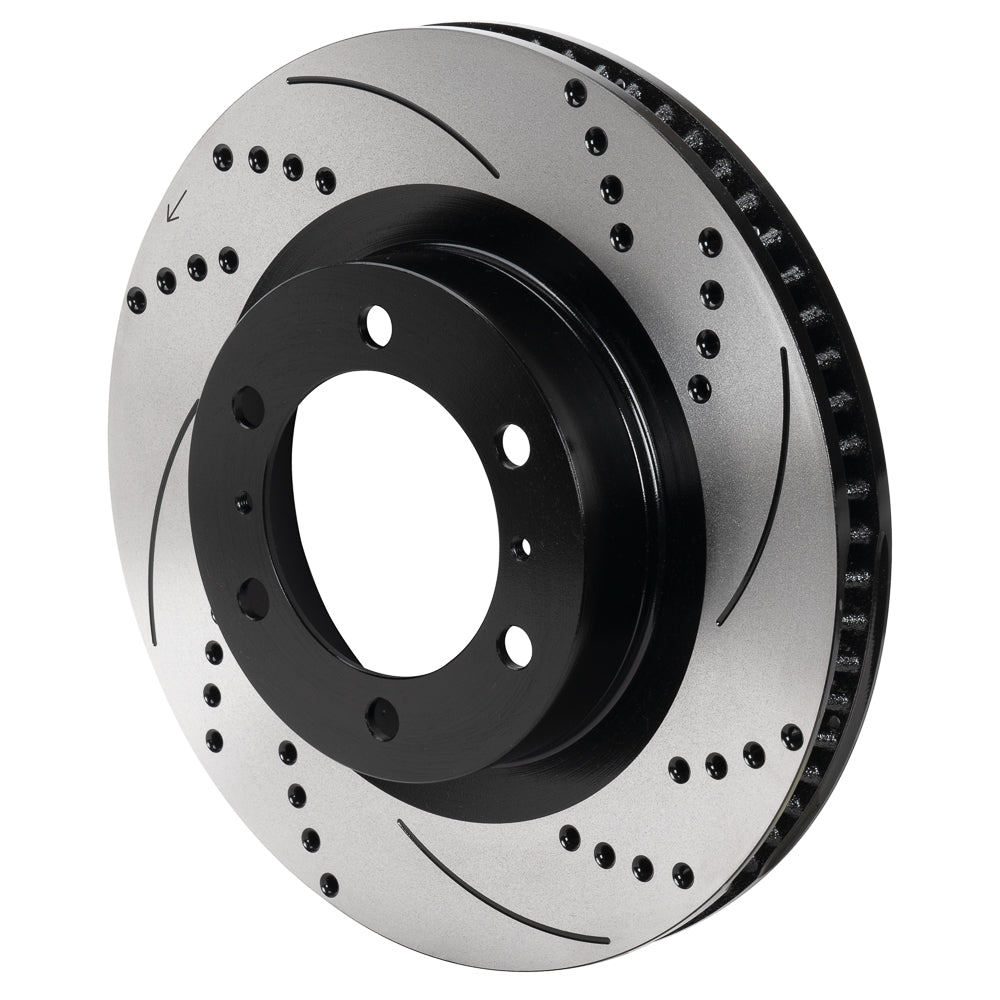

Wilwood Front Left-Hand SRP Rotor and Hat for Ford Bronco/Ranger Kits

This left-side SRP replacement retains the 1.25-inch friction thickness of the matching Ford front package. The 13.38-inch drilled-and-slotted ring and integral hat are one iron casting, finished in black electro-coat. Disc brake systems have been Wilwood’s focus since Bill Wood founded the company in 1977. Based in Camarillo, California, Wilwood designs and manufactures calipers, rotors, master cylinders, valves, fittings and lines for motorsport, street performance and specialized applications. The rotor is one part of that system and needs compatible pads, calipers and mounting components.

Technical Details

• Manufacturer part number: 160-17373-BK
• Quantity: One rotor; not an axle pair
• Outside diameter: 13.38 inches
• Nominal thickness: 1.25 inches
• Rotor material: Iron
• Construction: 48 vanes
• Friction surface: SRP Drilled & Slotted
• Finish: Black Electro Coat
• Approximate weight: 26.40 lb
• Factory burnished: No
• Dynamically balanced: Yes
• Installation orientation: Left-hand
• Registration / lug inside diameter: 3.86 inches
• Far-side inside diameter: 9.22 inches
• Rotor offset: 0.860 inches
• Internal clearance diameter: 7.26 inches
• Mounting-face thickness: 0.35 inches
• Hat wheel-stud clearance pattern: 6 x 5.50 inches
• Wheel-stud clearance hole diameter: 0.52 inches
• Opposite-hand companion rotor: 160-17372-BK (sold separately)

The integral hat is part of the rotor; caliper, pads, parking-brake mechanism and installation hardware are separate.

Fitment & Compatibility

Verify the 3.86-inch register and 0.860-inch offset against the installed Bronco or Ranger AERO6-DM kit. Follow the package’s model, year and spindle restrictions rather than a general vehicle-name match.
