Product details

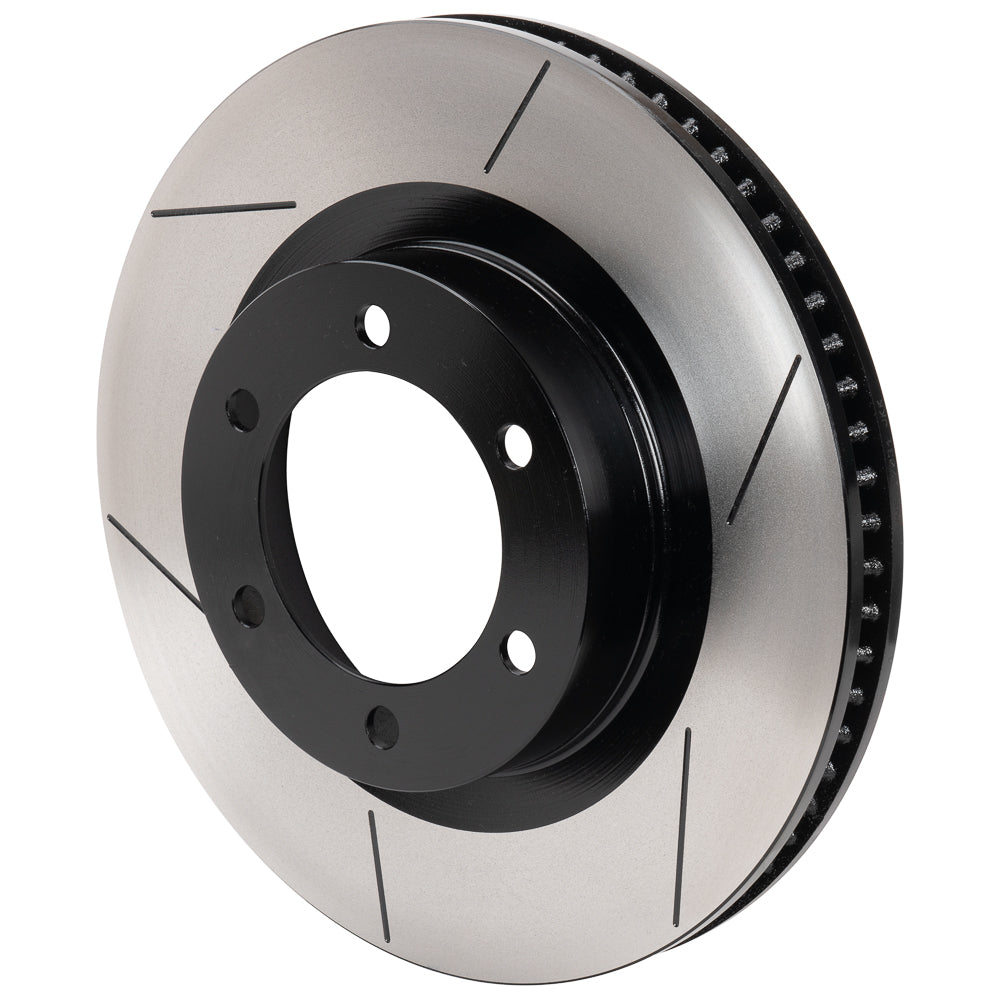

A 0.860-inch offset distinguishes this GT rotor from other 13.38-inch truck rotors. It is the integral-hat replacement used in the corresponding Ford Bronco and Ranger AERO6-DM front packages, with 48 vanes and a 1.25-inch friction section. Bill Wood established Wilwood in 1977. From Camarillo, California, the company designs and manufactures disc brake systems covering motorsport, street performance and specialized applications, with calipers, rotors, master cylinders, valves, fittings and lines in its product range. This rotor should be selected with the mounting arrangement, friction compound and hydraulic system in mind.
Technical Details
- Manufacturer part number: 160-17371-GTB
- Quantity: One rotor; not an axle pair
- Outside diameter: 13.38 inches
- Nominal thickness: 1.25 inches
- Rotor material: Iron
- Construction: 48 vanes
- Friction surface: GT Slotted
- Finish: Black Electro Coat
- Approximate weight: 26.50 lb
- Factory burnished: No
- Dynamically balanced: Yes
- Installation orientation: Non-directional
- Registration / lug inside diameter: 3.86 inches
- Far-side inside diameter: 9.22 inches
- Rotor offset: 0.860 inches
- Internal clearance diameter: 7.26 inches
- Mounting-face thickness: 0.35 inches
- Hat wheel-stud clearance pattern: 6 x 5.50 inches
- Wheel-stud clearance hole diameter: 0.52 inches
The integral hat is part of the rotor; caliper, pads, parking-brake mechanism and installation hardware are separate.
Fitment & Compatibility
DS1565 identifies qualified 2021–2024 Bronco and 2019–2022 Ranger installations. Confirm the specific kit, factory spindle and six-on-5.50-inch stud clearances; dimensions alone do not extend those applications.
Wilwood product specifications · Rotor dimension diagram · Installation reference DS1565
With over 20 years of brake experience, PMB Performance can help you compare the installed assembly with this rotor’s dimensions before ordering.
