Wilwood Front Left-Hand 13.31-Inch SRP Rotor for Toyota Brake Packages

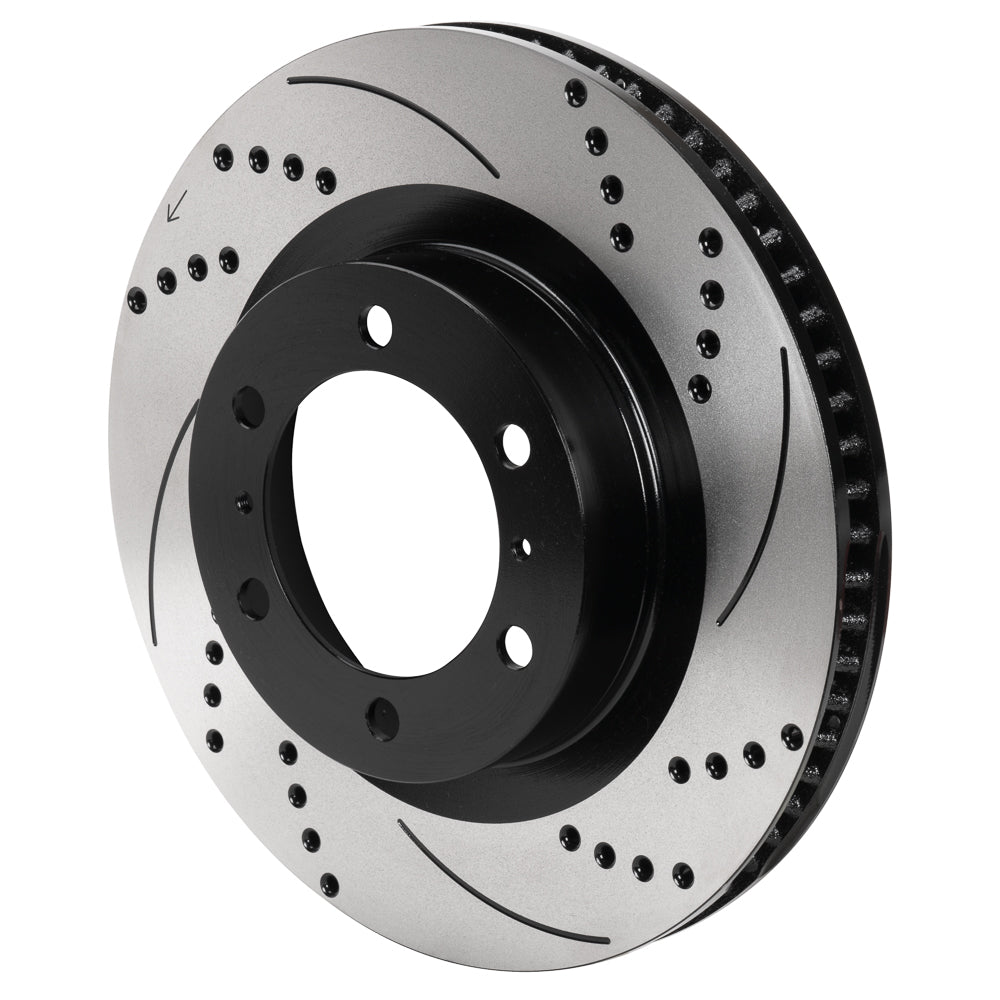

Replacing the left side of a compatible Toyota AERO6-DM installation calls for the matching SRP surface orientation. This black-finished rotor includes the 1.180-inch-offset hat as part of its iron casting, avoiding a separate rotor-to-hat joint. A rotor must suit both the mechanical installation and the rest of the braking system. Wilwood brings that system perspective to its calipers, rotors, master cylinders, valves, fittings and lines, designing and manufacturing disc brake systems for motorsport, street performance and specialized applications. Bill Wood founded the Camarillo, California company in 1977.

Technical Details

• Manufacturer part number: 160-17119-BK
• Quantity: One rotor; not an axle pair
• Outside diameter: 13.31 inches
• Nominal thickness: 1.26 inches
• Rotor material: Iron
• Construction: 68 vanes
• Friction surface: SRP Drilled & Slotted
• Finish: Black Electro Coat
• Approximate weight: 23.35 lb
• Factory burnished: No
• Dynamically balanced: Yes
• Installation orientation: Left-hand
• Registration / lug inside diameter: 4.25 inches
• Far-side inside diameter: 9.13 inches
• Rotor offset: 1.180 inches
• Internal clearance diameter: 6.77 inches
• Mounting-face thickness: 0.24 inches
• Hat wheel-stud clearance pattern: 6 x 5.50 inches
• Wheel-stud clearance hole diameter: 0.58 inches
• Opposite-hand companion rotor: 160-17118-BK (sold separately)

The integral hat is part of the rotor; caliper, pads, parking-brake mechanism and installation hardware are separate.

Fitment & Compatibility

Check the qualified 4Runner or Tacoma application and installed kit before ordering. Its 13.31-inch diameter is not interchangeable with the 13.38-inch rings used in other truck packages.

Wilwood product specifications · Installation reference DS1551 · Installation reference DS1569

With over 20 years of brake experience, PMB Performance can help you compare the installed assembly with this rotor’s dimensions before ordering.
