Product details

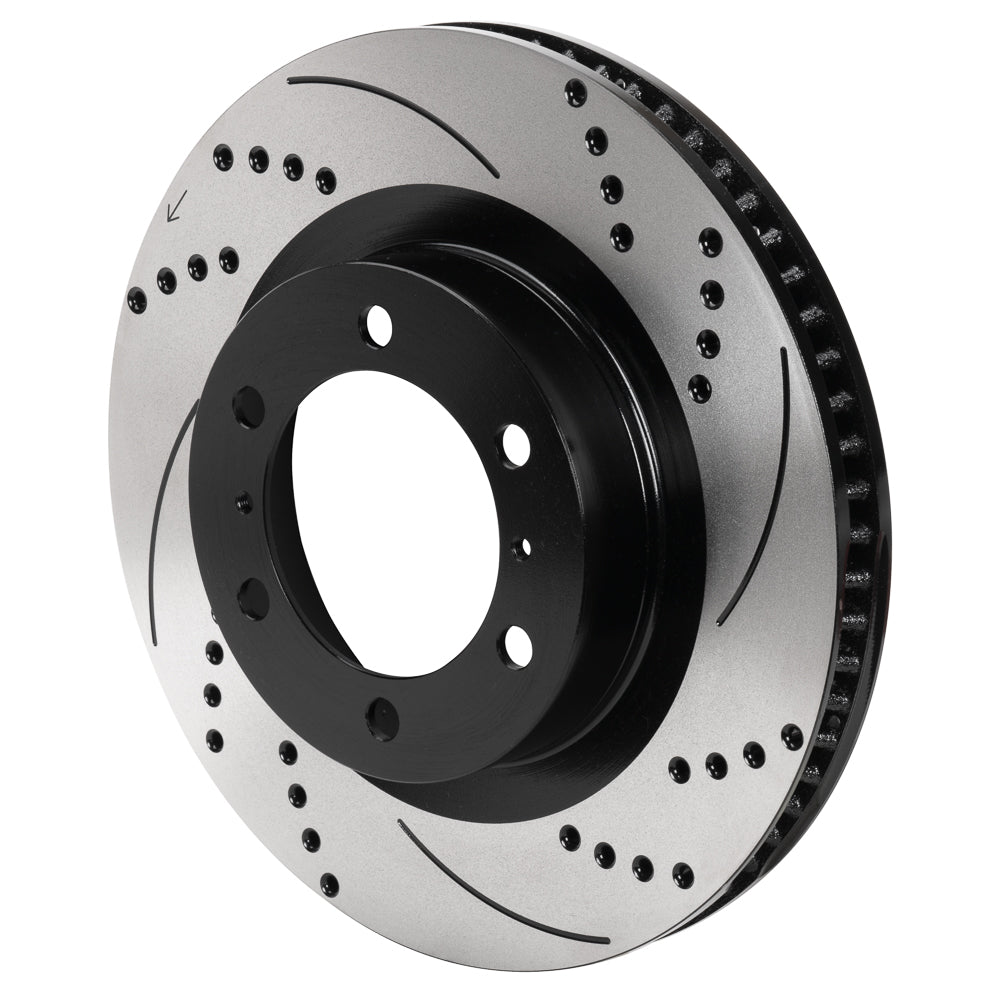

A 13.31-inch SRP friction face gives this right-hand Toyota front-package rotor its distinctive drilled-and-slotted surface. Beneath it, the 68-vane casting and 1.26-inch section preserve the dimensions required by the AERO6-DM caliper arrangement. Wilwood began in 1977 with founder Bill Wood and is based in Camarillo, California, where it designs and manufactures disc brake systems. Calipers and rotors sit alongside master cylinders, valves, fittings and lines in a range serving motorsport, street performance and specialized applications. Selecting these parts together is essential to a correctly matched brake installation.
Technical Details
- Manufacturer part number: 160-17118-BK
- Quantity: One rotor; not an axle pair
- Outside diameter: 13.31 inches
- Nominal thickness: 1.26 inches
- Rotor material: Iron
- Construction: 68 vanes
- Friction surface: SRP Drilled & Slotted
- Finish: Black Electro Coat
- Approximate weight: 23.35 lb
- Factory burnished: No
- Dynamically balanced: Yes
- Installation orientation: Right-hand
- Registration / lug inside diameter: 4.25 inches
- Far-side inside diameter: 9.13 inches
- Rotor offset: 1.180 inches
- Internal clearance diameter: 6.77 inches
- Mounting-face thickness: 0.24 inches
- Hat wheel-stud clearance pattern: 6 x 5.50 inches
- Wheel-stud clearance hole diameter: 0.58 inches
- Opposite-hand companion rotor: 160-17119-BK (sold separately)
The integral hat is part of the rotor; caliper, pads, parking-brake mechanism and installation hardware are separate.
Fitment & Compatibility
For the matching Wilwood 4Runner/Tacoma conversion covered by DS1551/DS1569, with model and year qualifications checked at the kit level. Confirm the 4.25-inch register and six-on-5.50-inch stud clearance pattern.
