Product details

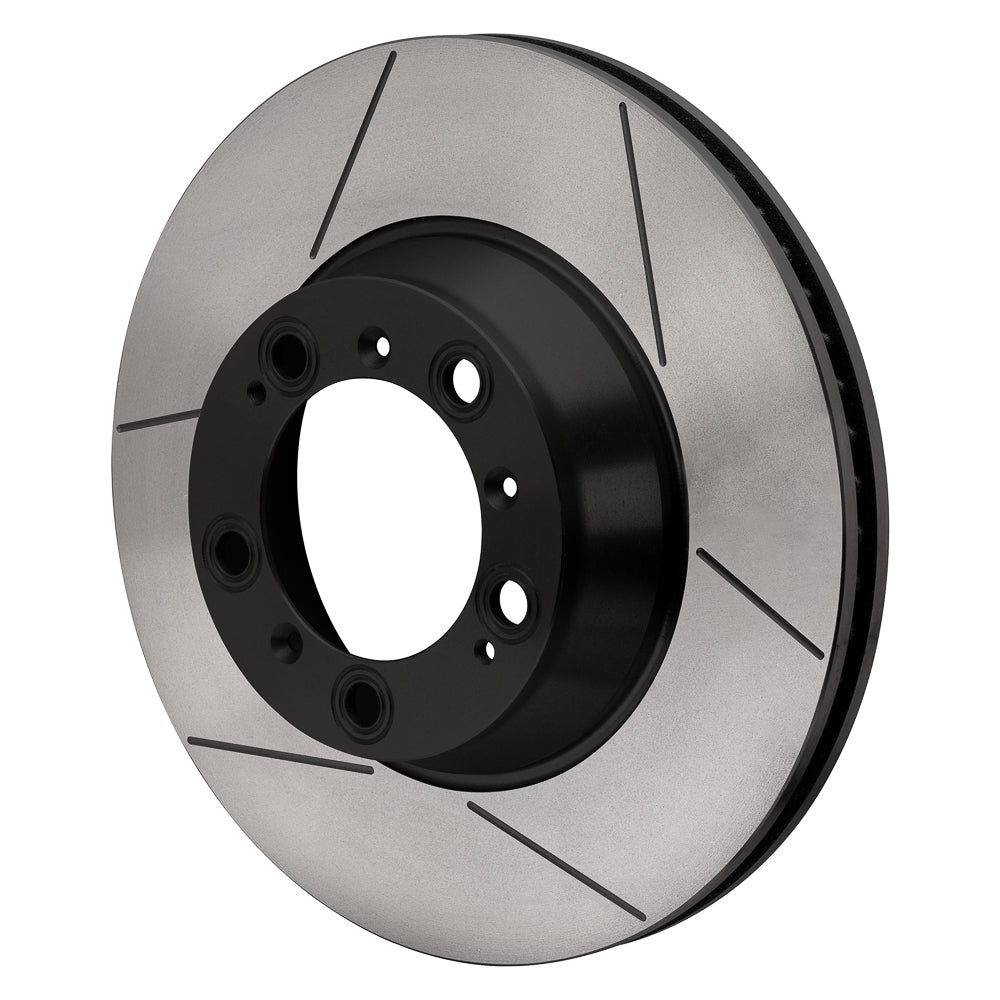

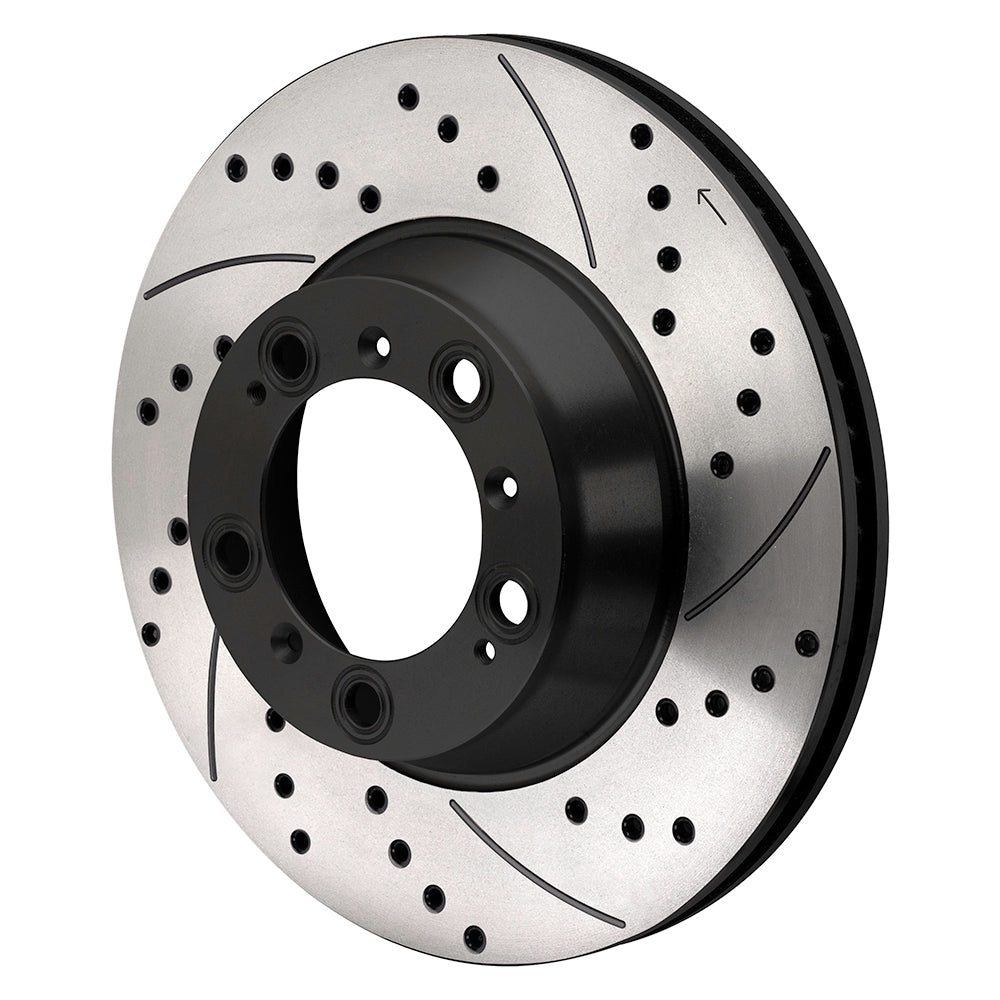

Replacement rear rotor for the matching Wilwood Superlite conversion on Porsche 911 996/997 applications. This 12.98 × 1.10-inch vented iron rotor has an integral parking-brake hat. One rotor is supplied; left- and right-hand rotors are different parts.
Match your installed Wilwood kit
Wilwood lists these rotors in the parts list for rear Superlite kit 140-17101. They are replacement components for that specified conversion, rather than a universal factory-caliper rotor upgrade.
| 911 Carrera | 1999–2008 and 2009–2012 |
|---|---|
| 911 Carrera 4 | 1999–2008 |
| 911 Targa | 2002–2005 |
| 911 Targa 4 | 2007–2008 |
For a 2012 car, confirm the specified 997 brake arrangement; this listing does not establish 991 compatibility.
These are the current application groups for the complete rear kit. Confirm the installed kit and its rotor size before purchase. The kit list does not establish Carrera S, Carrera 4S, Turbo, GT3, Boxster or Cayman compatibility.
Specifications
| Diameter | 12.98 inches |
|---|---|
| Thickness | 1.10 inches |
| Construction | Vented iron rotor with integral hat |
| Surface treatment | Black electro-coat |
| Offset | 1.615 inches |
| Parking-brake drum inside diameter | 7.08 inches |
| Quantity | One rotor |
Ordering and installation
For an axle pair, order one left-hand and one right-hand rotor of the same series. Each product supplies one rotor.
Manufacturer photographs are shared illustrations for the left- and right-hand versions; confirm the required vehicle side before ordering.
The black coating is a protective finish; the pad contact areas will wear to a normal metal appearance in use. Compare the complete rotor dimensions and parking-brake arrangement with the installed conversion. Pads, calipers and hardware are separate.
Documents and fitment help
140-17101 installation and rotor parts list (opens in a new tab)
Unsure which rear conversion rotor your Porsche needs? Contact PMB Performance with the model year, installed brake parts and clear photos so we can help check the match before you order.
