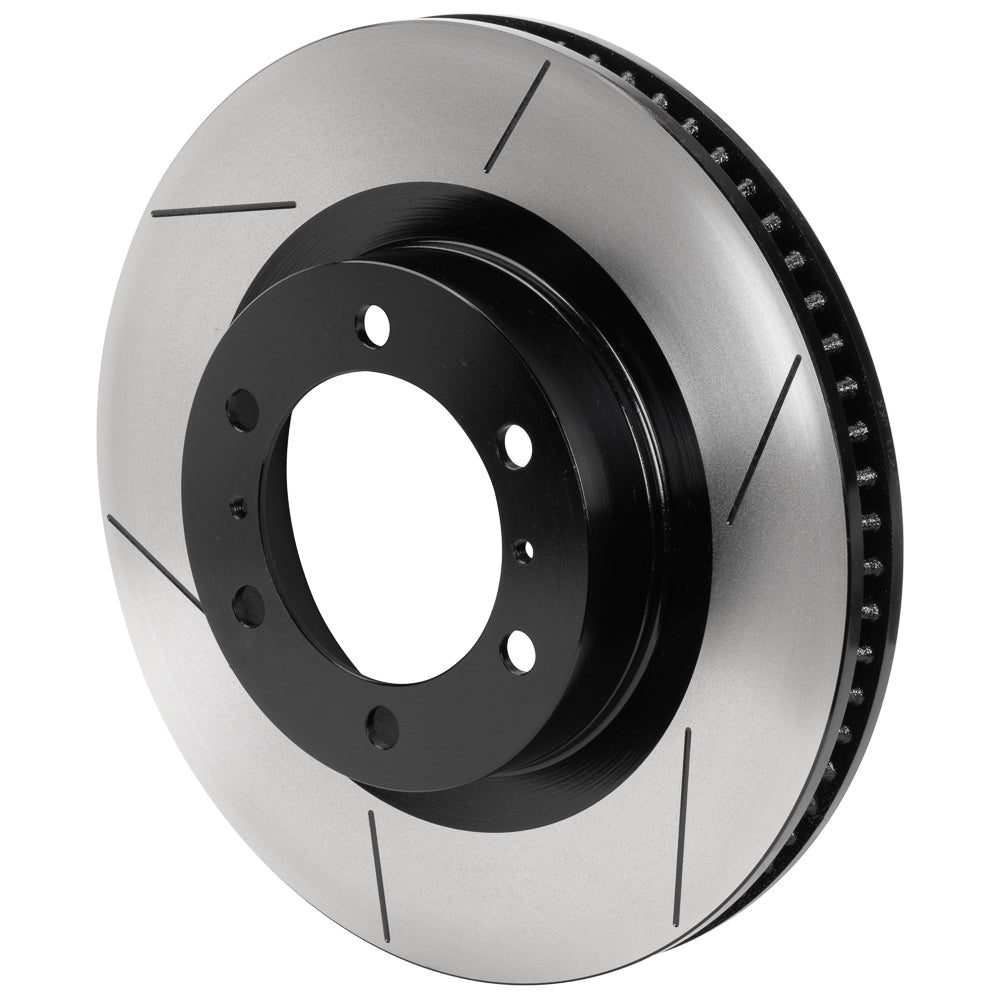

Wilwood Front Toyota 4Runner/Tacoma GT Rotor, 13.31 x 1.26 Inches

The 13.31-inch AERO6-DM front conversion for compatible Toyota applications uses this 68-vane GT rotor. A 1.26-inch friction section and 1.180-inch integral-hat offset maintain the geometry of the matching caliper installation. Wilwood’s calipers, rotors, master cylinders, valves, fittings and lines support complete disc brake systems rather than an isolated component choice. Founded in 1977 by Bill Wood and based in Camarillo, California, the company designs and manufactures these systems for motorsport, street performance and specialized applications. Correct pairing of the rotor with its surrounding hardware is essential.

Technical Details

• Manufacturer part number: 160-17034-GTB
• Quantity: One rotor; not an axle pair
• Outside diameter: 13.31 inches
• Nominal thickness: 1.26 inches
• Rotor material: Iron
• Construction: 68 vanes
• Friction surface: GT Slotted
• Finish: Black Electro Coat
• Approximate weight: 23.79 lb
• Factory burnished: No
• Dynamically balanced: Yes
• Installation orientation: Non-directional
• Registration / lug inside diameter: 4.25 inches
• Far-side inside diameter: 9.13 inches
• Rotor offset: 1.180 inches
• Internal clearance diameter: 6.77 inches
• Mounting-face thickness: 0.24 inches
• Hat wheel-stud clearance pattern: 6 x 5.50 inches
• Wheel-stud clearance hole diameter: 0.58 inches

The integral hat is part of the rotor; caliper, pads, parking-brake mechanism and installation hardware are separate.

Fitment & Compatibility

Installation references include DS1551 for qualified 2015–2021 4Runner and DS1569 for 2005–2023 Tacoma applications. Verify the exact kit and six-on-5.50-inch stud clearance arrangement on the vehicle.
