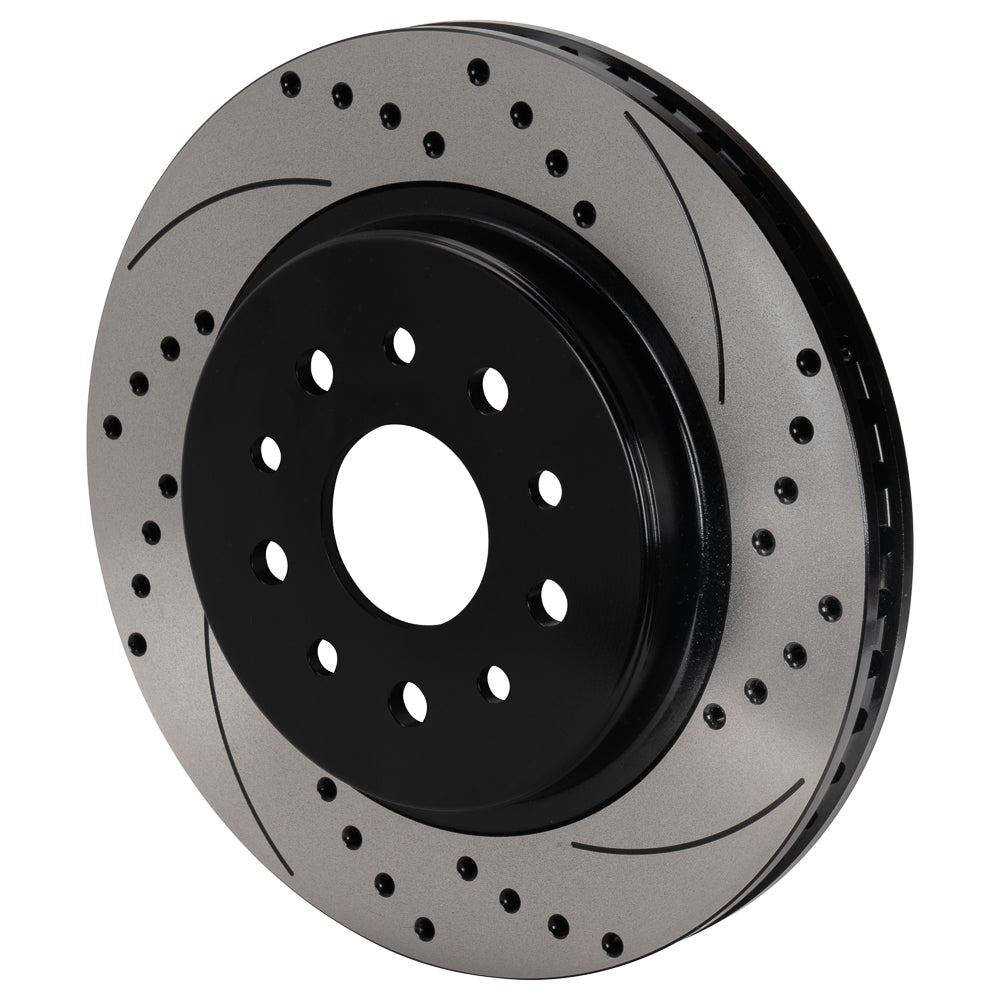

Wilwood Front Right-Hand Jeep SRP Rotor, 13.38 x 1.25 Inches

This right-hand front replacement adds the SRP drilled-and-slotted surface to the matching Jeep AERO6-DM geometry. The 13.38-inch iron casting carries 48 vanes and a 1.25-inch friction section, with its hat built into the rotor. Bill Wood established Wilwood in 1977. From Camarillo, California, the company designs and manufactures disc brake systems covering motorsport, street performance and specialized applications, with calipers, rotors, master cylinders, valves, fittings and lines in its product range. This rotor should be selected with the mounting arrangement, friction compound and hydraulic system in mind.

Technical Details

• Manufacturer part number: 160-16965-BK
• Quantity: One rotor; not an axle pair
• Outside diameter: 13.38 inches
• Nominal thickness: 1.25 inches
• Rotor material: Iron
• Construction: 48 vanes
• Friction surface: SRP Drilled & Slotted
• Finish: Black Electro Coat
• Approximate weight: 26.63 lb
• Factory burnished: No
• Dynamically balanced: Yes
• Installation orientation: Right-hand
• Registration / lug inside diameter: 2.84 inches
• Far-side inside diameter: 9.28 inches
• Rotor offset: 0.720 inches
• Internal clearance diameter: 7.30 inches
• Mounting-face thickness: 0.24 inches
• Hat wheel-stud clearance pattern: 5 x 5.00 inches
• Wheel-stud clearance hole diameter: 0.64 inches
• Opposite-hand companion rotor: 160-16966-BK (sold separately)

The integral hat is part of the rotor; caliper, pads, parking-brake mechanism and installation hardware are separate.

Fitment & Compatibility

Use the right-side rotor assignment shown in the current kit component lists. Match the JK/JL/JT package, 2.84-inch register and five-on-5.00-inch stud clearances before installation.
