Product details

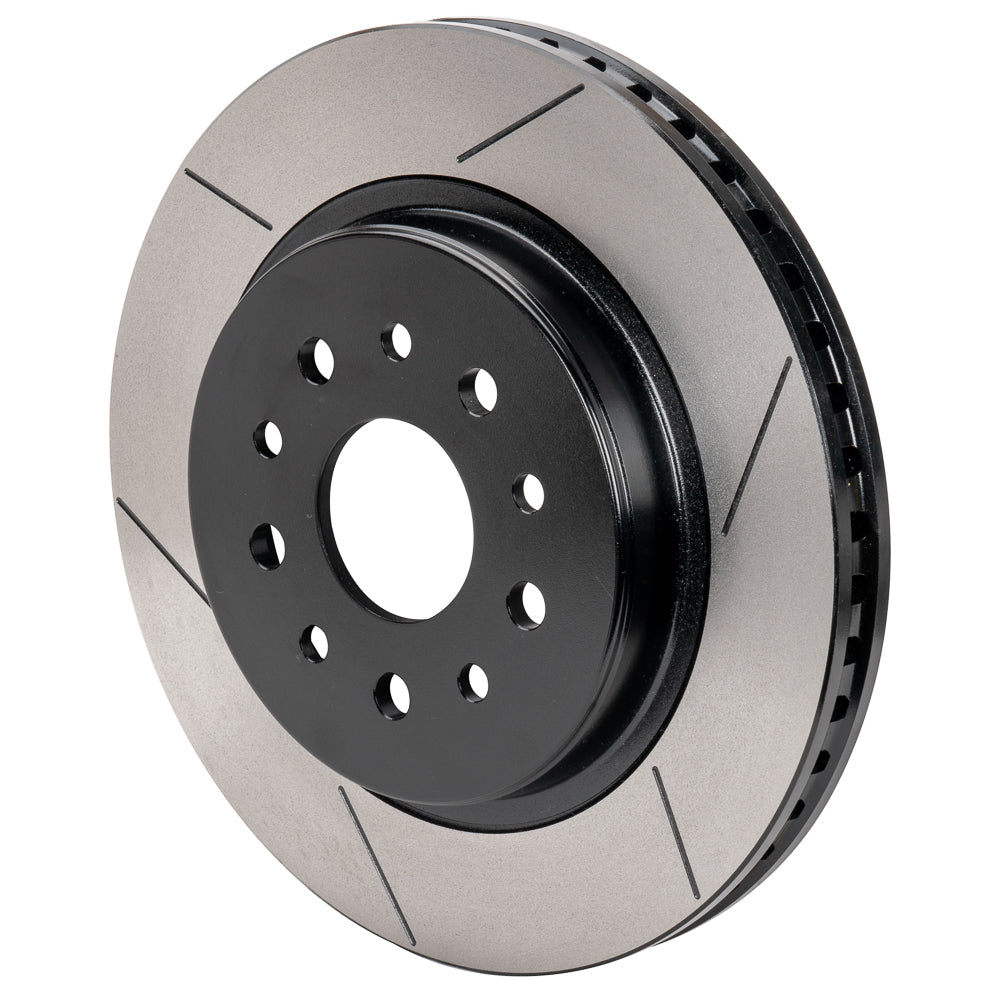

The AERO6-DM front package for compatible Jeep platforms uses this 13.38-inch GT rotor with an integral hat. Its five-stud layout, 0.720-inch offset and 2.84-inch center register locate the 1.25-inch friction section in the required position. A rotor must suit both the mechanical installation and the rest of the braking system. Wilwood brings that system perspective to its calipers, rotors, master cylinders, valves, fittings and lines, designing and manufacturing disc brake systems for motorsport, street performance and specialized applications. Bill Wood founded the Camarillo, California company in 1977.
Technical Details
- Manufacturer part number: 160-16964-GTB
- Quantity: One rotor; not an axle pair
- Outside diameter: 13.38 inches
- Nominal thickness: 1.25 inches
- Rotor material: Iron
- Construction: 48 vanes
- Friction surface: GT Slotted
- Finish: Black Electro Coat
- Approximate weight: 26.90 lb
- Factory burnished: No
- Dynamically balanced: Yes
- Installation orientation: Non-directional
- Registration / lug inside diameter: 2.84 inches
- Far-side inside diameter: 9.28 inches
- Rotor offset: 0.720 inches
- Internal clearance diameter: 7.30 inches
- Mounting-face thickness: 0.24 inches
- Hat wheel-stud clearance pattern: 5 x 5.00 inches
- Wheel-stud clearance hole diameter: 0.64 inches
The integral hat is part of the rotor; caliper, pads, parking-brake mechanism and installation hardware are separate.
Fitment & Compatibility
DS1550 covers qualified 2007–2018 JK and 2018–2025 JL/JT applications. Verify the specific factory spindle and installed kit; these model families have configurations that cannot be identified by lug pattern alone.
Wilwood product specifications · Rotor dimension diagram · Installation reference DS1550
