Product details

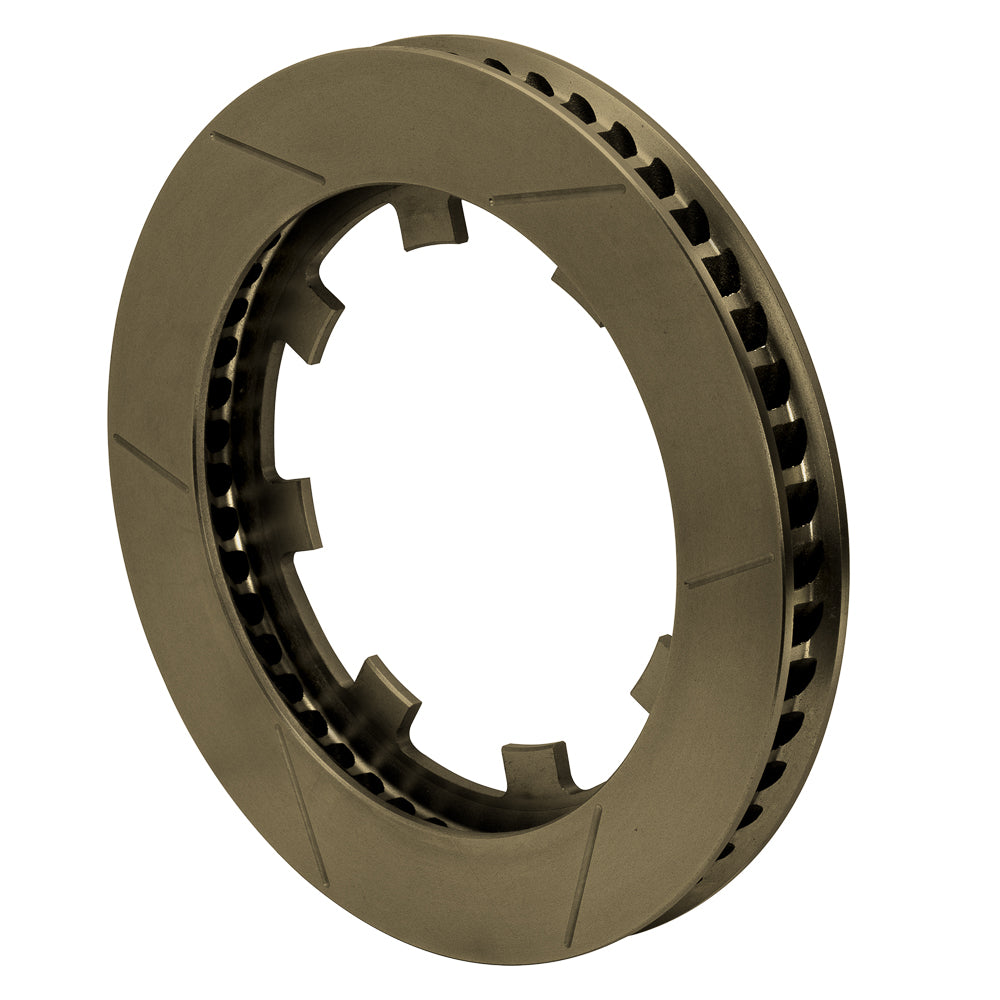

This factory-burnished GT ring retains the 11.75-inch diameter and thick 1.25-inch section of the corresponding unprepared rotor. Right-hand curved vanes, slotted faces and the eight-lug mounting center define the installation, while burnishing defines the supplied condition. Founded in 1977, Bill Wood’s Wilwood is based in Camarillo, California and designs and manufactures disc brake systems for motorsport, street performance and specialized applications. Its range runs from calipers and rotors to master cylinders, valves, fittings and lines. Choosing a rotor involves matching those surrounding components as well as the vehicle’s intended use.
Technical Details
- Manufacturer part number: 160-16924-B
- Quantity: One rotor; not an axle pair
- Outside diameter: 11.75 inches
- Nominal thickness: 1.25 inches
- Rotor material: Iron
- Construction: 48 curved vanes
- Friction surface: GT Slotted
- Finish: Plain
- Approximate weight: 11.12 lb
- Factory burnished: Yes
- Installation orientation: Right-hand
- Rotor attachment pattern: 8 x 7.18 inches, lug/snap-ring mount
- Registration / lug inside diameter: 6.53 inches
- Far-side inside diameter: 8.34 inches
- Opposite-hand companion rotor: 160-16925-B (sold separately)
- Intended use and restrictions: Suitable for high-temperature racing and street use. Iron heavy-wall castings.
The hat or hub, fasteners, caliper and pads are not included.
Fitment & Compatibility
Verify the snap-ring carrier and 6.53-inch register before selecting this replacement. Follow the specified pad preparation and brake-system bedding procedure.
