Product details

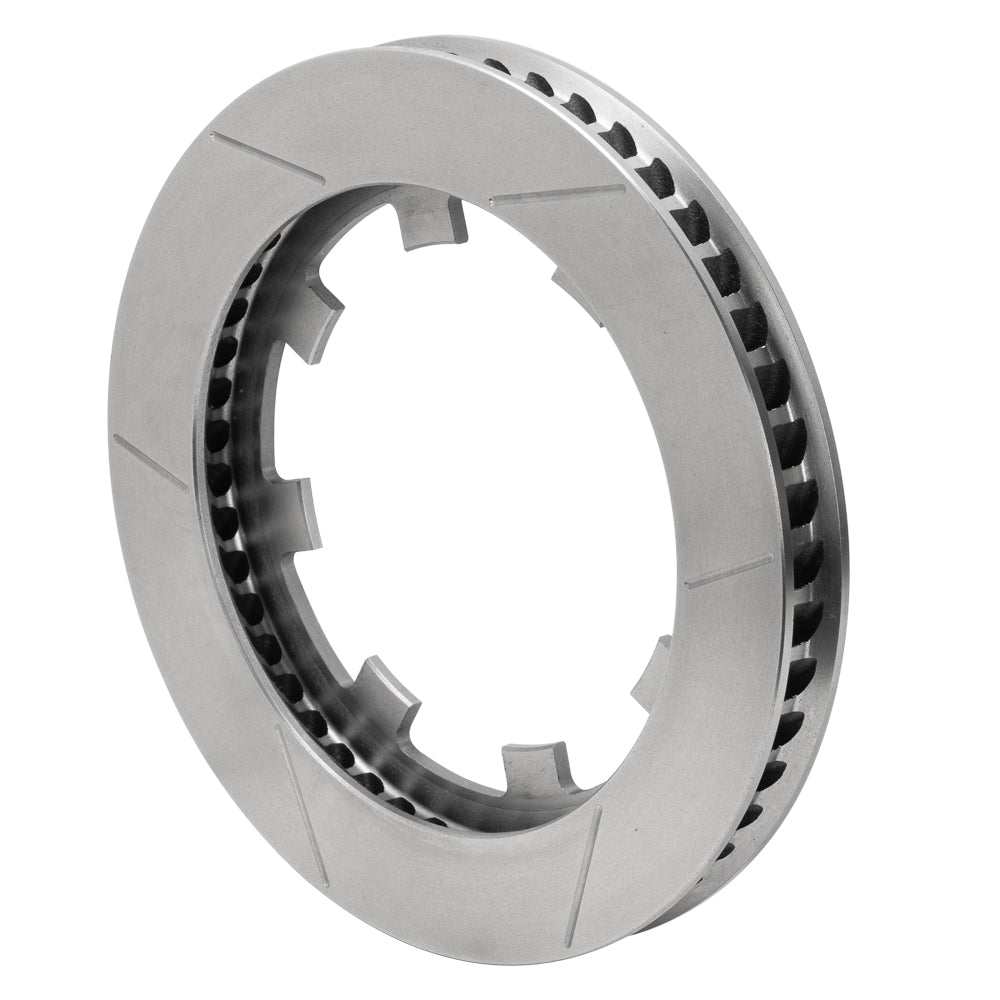

A thicker 1.25-inch section gives this 11.75-inch GT rotor a different caliper requirement from the 0.81-inch version. Its right-hand curved vanes work with the slotted iron faces, and an eight-lug center transfers drive from the intended carrier. A well-matched brake installation starts with compatible components. Wilwood designs and manufactures disc brake systems that include calipers, rotors, master cylinders, valves, fittings and lines, serving motorsport, street performance and specialized applications. Bill Wood founded the company in 1977 in Camarillo, California; this rotor should be evaluated as part of the complete braking package.
Technical Details
- Manufacturer part number: 160-16924
- Quantity: One rotor; not an axle pair
- Outside diameter: 11.75 inches
- Nominal thickness: 1.25 inches
- Rotor material: Iron
- Construction: 48 curved vanes
- Friction surface: GT Slotted
- Finish: Plain
- Approximate weight: 11.12 lb
- Factory burnished: No
- Installation orientation: Right-hand
- Rotor attachment pattern: 8 x 7.18 inches, lug/snap-ring mount
- Registration / lug inside diameter: 6.53 inches
- Far-side inside diameter: 8.34 inches
- Opposite-hand companion rotor: 160-16925 (sold separately)
- Intended use and restrictions: Suitable for high-temperature racing and street use. Iron heavy-wall castings.
The hat or hub, fasteners, caliper and pads are not included.
Fitment & Compatibility
Match the 7.18-inch lug interface and 6.53-inch register to the carrier. Check caliper clearance for the 1.25-inch friction section and install the curved-vane rotor on the specified right side.
