Product details

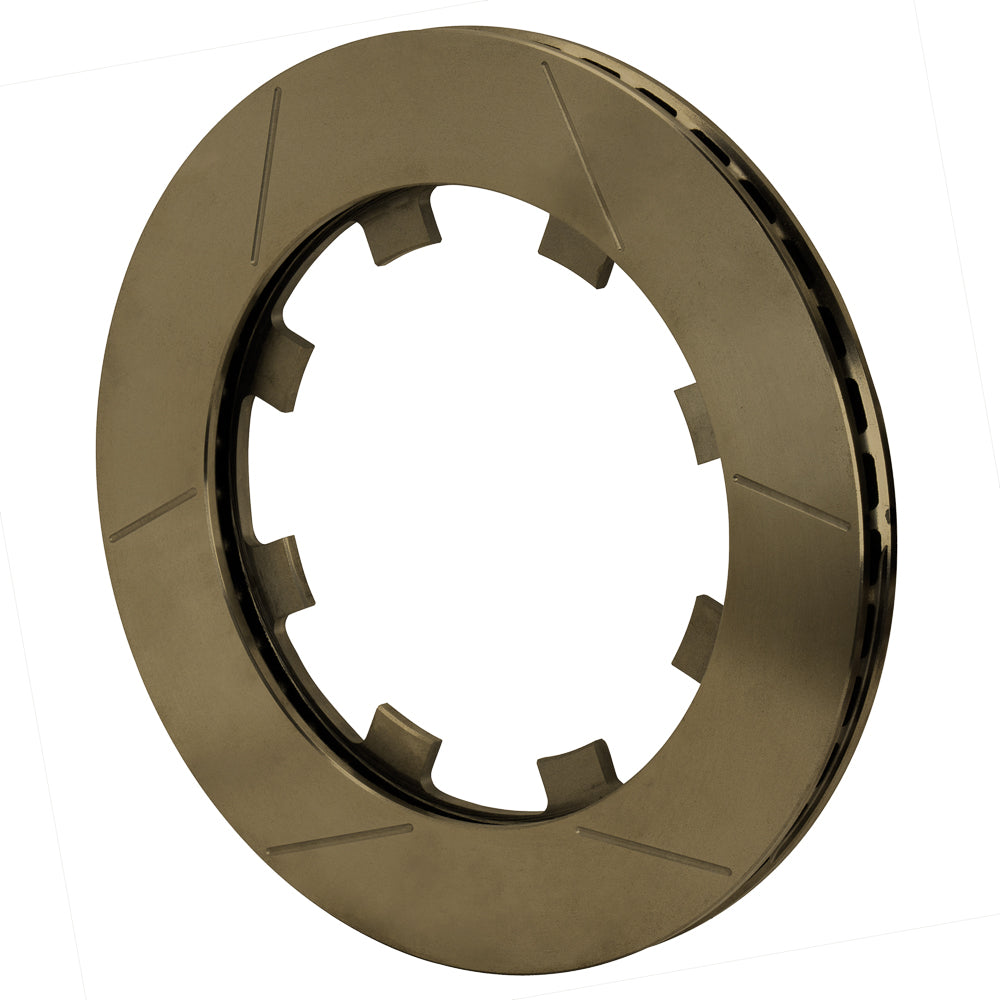

Factory burnishing adds a preparation treatment to this compact 0.81-inch GT ring. Its 40 straight vanes and slotted faces retain non-directional operation, but the eight-lug center still requires the correct snap-ring carrier. Since its founding by Bill Wood in 1977, Wilwood has designed and manufactured disc brake systems from its base in Camarillo, California. Its products span rotors, calipers, master cylinders, valves, fittings and lines for motorsport, street performance and specialized applications. Brake selection should account for the whole installation, including mounting dimensions, friction materials and hydraulic balance.
Technical Details
- Manufacturer part number: 160-16923-B
- Quantity: One rotor; not an axle pair
- Outside diameter: 11.75 inches
- Nominal thickness: 0.81 inches
- Rotor material: Spec-37 Iron
- Construction: 40 vanes
- Friction surface: GT Slotted
- Finish: Plain
- Approximate weight: 9.80 lb
- Factory burnished: Yes
- Installation orientation: Non-directional
- Rotor attachment pattern: 8 x 7.18 inches, lug/snap-ring mount
- Registration / lug inside diameter: 6.53 inches
- Far-side inside diameter: 8.00 inches
- Intended use and restrictions: Suitable for high-temperature racing and street use. Spec-37 heavy-wall castings.
The hat or hub, fasteners, caliper and pads are not included.
Fitment & Compatibility
Confirm the 11.75-inch brake package and retention hardware before installation. The carrier must match the eight-lug profile and 6.53-inch register; a conventional bolted hat does not replace this snap-ring mounting system.
