Product details

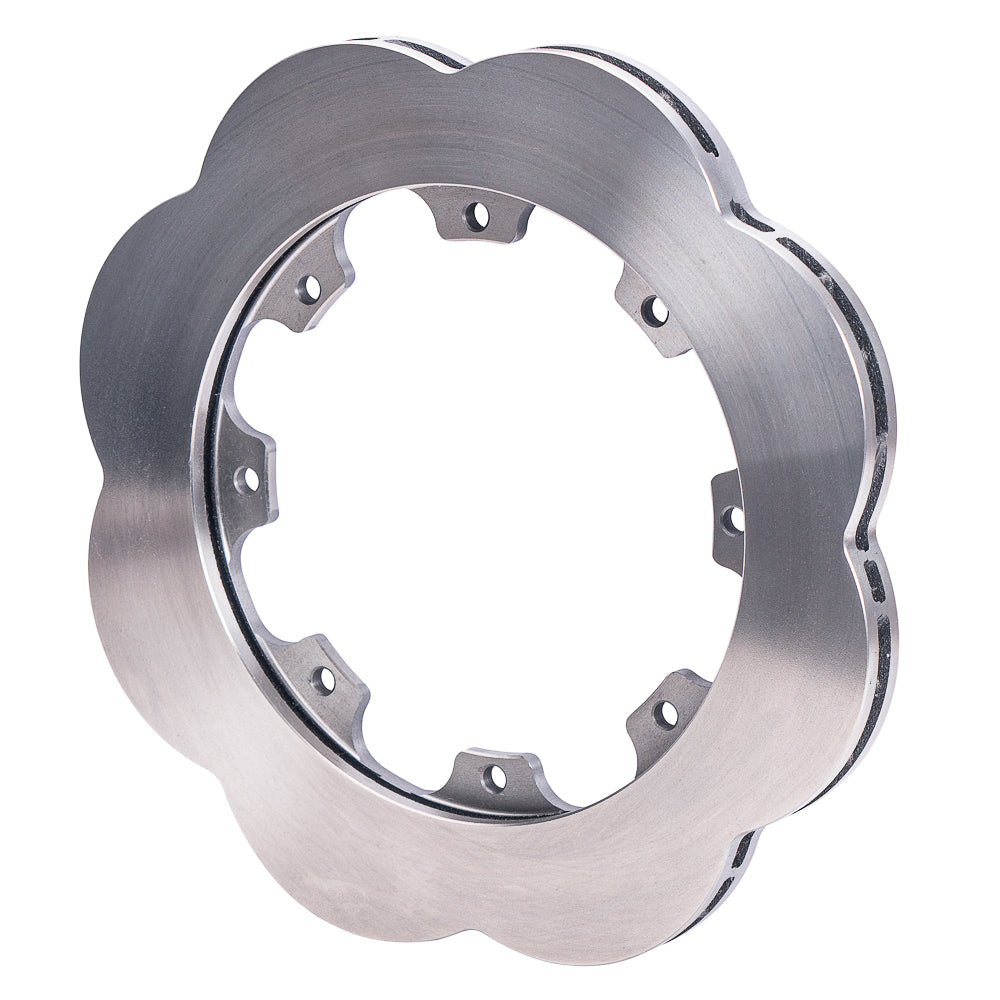

Left-hand vane orientation is required for this side of the HD scalloped rotor pair. Its smooth pad faces and 0.81-inch section combine with an 11.75-inch perimeter, making the exact casting and mount important when replacing a race brake ring. Established in 1977 by Bill Wood, Wilwood develops its range around complete disc brake systems. The Camarillo, California manufacturer designs and manufactures calipers, rotors, master cylinders, valves, fittings and lines for motorsport, street performance and specialized applications. Installation geometry, pad selection and braking duty should be considered together when choosing this component.
Technical Details
- Manufacturer part number: 160-16870
- Quantity: One rotor; not an axle pair
- Outside diameter: 11.75 inches
- Nominal thickness: 0.81 inches
- Rotor material: Spec-37 Iron
- Construction: 36 curved vanes
- Friction surface: Plain Face
- Finish: Plain
- Approximate weight: 8.65 lb
- Factory burnished: No
- Dynamically balanced: No
- Installation orientation: Left-hand
- Rotor attachment pattern: 8 x 7.00 inches
- Rotor mounting hole / thread: 0.326 inches
- Registration / lug inside diameter: 6.38 inches
- Far-side inside diameter: 7.87 inches
- Opposite-hand companion rotor: 160-16869 (sold separately)
- Intended use and restrictions: Spec-37 heavy-wall castings.
The hat or hub, fasteners, caliper and pads are not included.
Fitment & Compatibility
The 0.326-inch attachment holes and 6.38-inch center register must agree with the carrier. Match the rotor design to the approved brake assembly and duty, not merely the outside diameter.
Wilwood product specifications · Rotor dimension diagram
