Product details

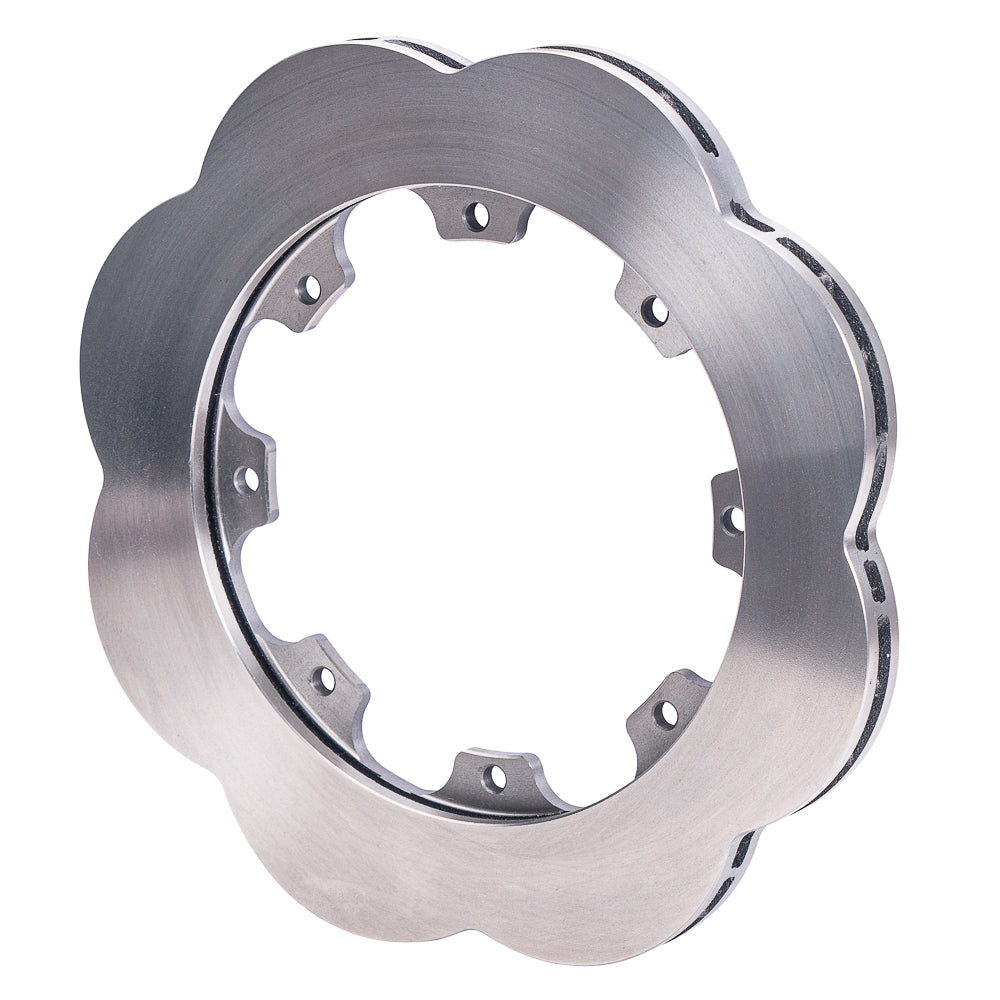

A scalloped perimeter removes material from this HD rotor while retaining a Spec-37 heavy-wall casting. The 11.75-inch ring has 36 right-hand curved vanes and a plain contact surface, distinguishing it from both slotted GT and straight-vane Ultralite designs. System compatibility is central to choosing a replacement rotor, including its relationship to the caliper, pad and mounting hardware. Wilwood designs and manufactures disc brake systems in Camarillo, California, offering calipers, rotors, master cylinders, valves, fittings and lines across motorsport, street performance and specialized applications. The company was founded in 1977 by Bill Wood.
Technical Details
- Manufacturer part number: 160-16869
- Quantity: One rotor; not an axle pair
- Outside diameter: 11.75 inches
- Nominal thickness: 0.81 inches
- Rotor material: Spec-37 Iron
- Construction: 36 curved vanes
- Friction surface: Plain Face
- Finish: Plain
- Approximate weight: 8.65 lb
- Factory burnished: No
- Dynamically balanced: No
- Installation orientation: Right-hand
- Rotor attachment pattern: 8 x 7.00 inches
- Rotor mounting hole / thread: 0.326 inches
- Registration / lug inside diameter: 6.38 inches
- Far-side inside diameter: 7.87 inches
- Opposite-hand companion rotor: 160-16870 (sold separately)
- Intended use and restrictions: Spec-37 heavy-wall castings.
The hat or hub, fasteners, caliper and pads are not included.
Fitment & Compatibility
Select this right-hand ring only where the assembly calls for its 0.81-inch section and 6.38-inch register. Confirm suitability for the intended racing duty with the brake-package specification.
Wilwood product specifications · Rotor dimension diagram
