Product details

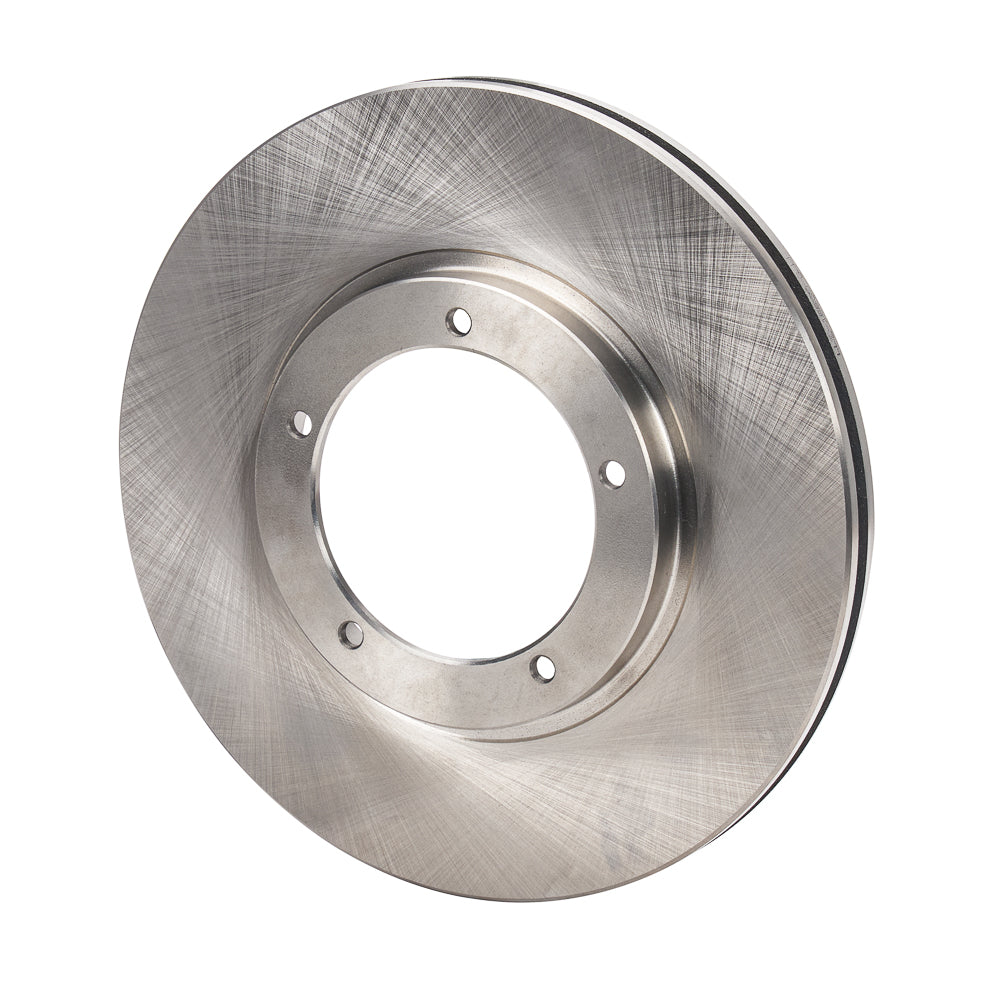

A 282 × 24 mm front rotor for the matching classic Porsche 911 brake setup. The Wilwood HP uses a plain face iron friction ring with an integral hat and internal ventilation. Sold as one rotor.
Fitment that matters
| Porsche application | Years | Position | Required configuration |
|---|---|---|---|
| Porsche 911 with the matching original brake arrangement | 1984–1989 | Front | 282 × 24 mm; matching original front hub and rotor mounting dimensions. |
1989 Carrera 4/964: Contact PMB to check the installed hardware before ordering; the classic 911 application shown here does not establish 964 fitment.
Check the rotor thickness, mounting dimensions and actual brake hardware before ordering. Model year alone does not identify a converted or Turbo brake system.
The 20 mm and 24 mm classic 911 rotors are different parts. Do not choose one by diameter alone. This listing does not establish fitment for Turbo, Turbo-Look or other upgraded brake packages.
Specifications
| Position | Front |
|---|---|
| Nominal dimensions | 282 × 24 mm |
| Wilwood inch dimensions | 11.10-inch diameter × 0.95-inch thickness |
| Construction | Vented iron rotor with integral hat |
| Offset | 0.440 inches |
| Mount direction | Non-directional |
| Quantity | One rotor |
Replacement and installation
The plain friction face provides a straightforward replacement when you want an unslotted rotor in this size. Replace both rotors on an axle as a matched pair and check pad condition. Pads, calipers and installation hardware are separate purchases.
Documents and fitment help
Relevant Wilwood brake-kit installation reference (opens in a new tab)
Unsure which rotor your Porsche needs? Contact PMB Performance with the model year, installed brake parts and clear photos so we can help check the match before you order.
