Product details

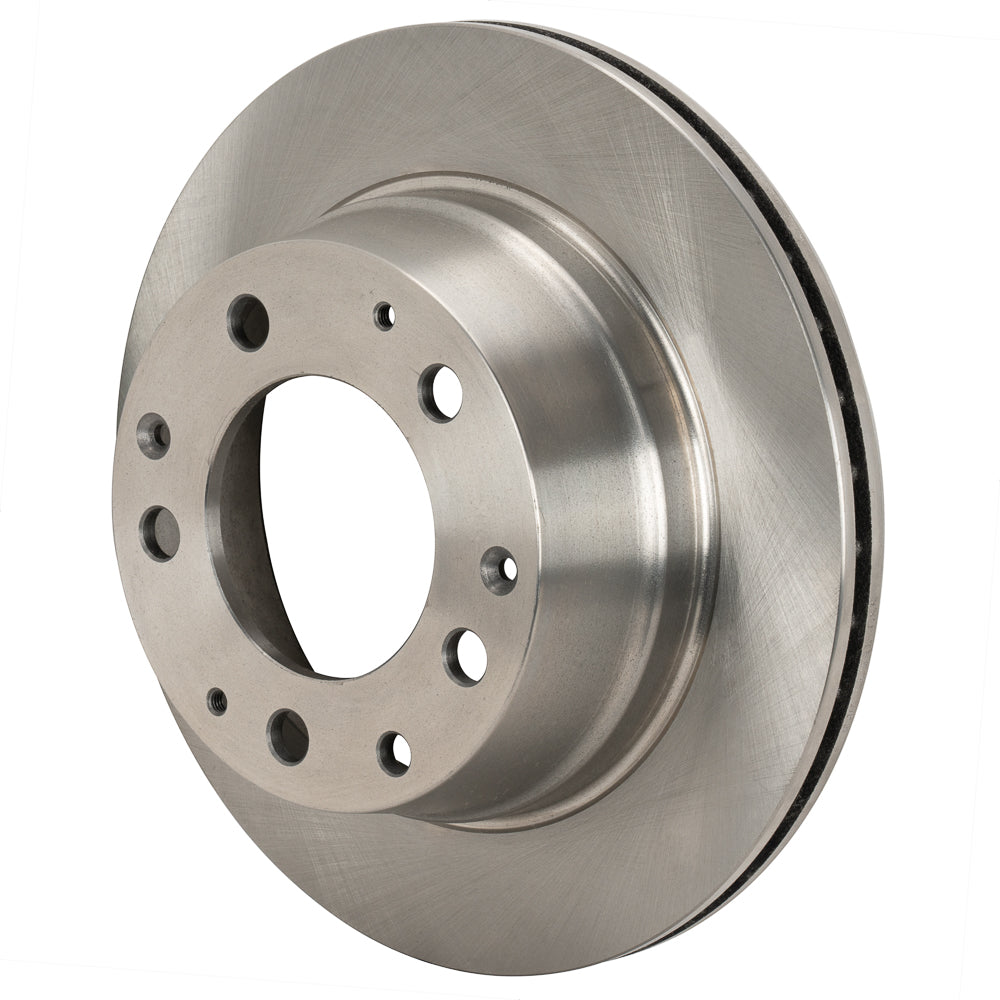

A 290 × 20 mm rear rotor for the matching classic Porsche 911 brake setup. It uses vented iron construction with an integral hat. Sold as one rotor.
Fitment that matters
| Porsche application | Years | Position | Required configuration |
|---|---|---|---|
| Porsche 911 with the matching original brake arrangement | 1969–1983 | Rear | 290 × 20 mm; matching original hub, rotor mounting dimensions and internal parking brake. |
Check the rotor thickness, mounting dimensions and actual brake hardware before ordering. Model year alone does not identify a converted or Turbo brake system.
The 20 mm and 24 mm classic 911 rotors are different parts. Do not choose one by diameter alone. This listing does not establish fitment for Turbo, Turbo-Look or other upgraded brake packages.
Specifications
| Position | Rear |
|---|---|
| Nominal dimensions | 290 × 20 mm |
| Wilwood inch dimensions | 11.42-inch diameter × 0.80-inch thickness |
| Construction | Vented iron rotor with integral hat |
| Offset | 2.220 inches |
| Parking-brake drum inside diameter | 7.08 inches |
| Mount direction | Non-directional |
| Quantity | One rotor |
Replacement and installation
Replace both rotors on an axle as a matched pair and check pad condition. Order two rotors for an axle pair; each product selection supplies one rotor. Pads, calipers and installation hardware are separate purchases.
Documents and fitment help
Relevant Wilwood brake-kit installation reference (opens in a new tab)
Unsure which rotor your Porsche needs? Contact PMB Performance with the model year, installed brake parts and clear photos so we can help check the match before you order.
