Product details

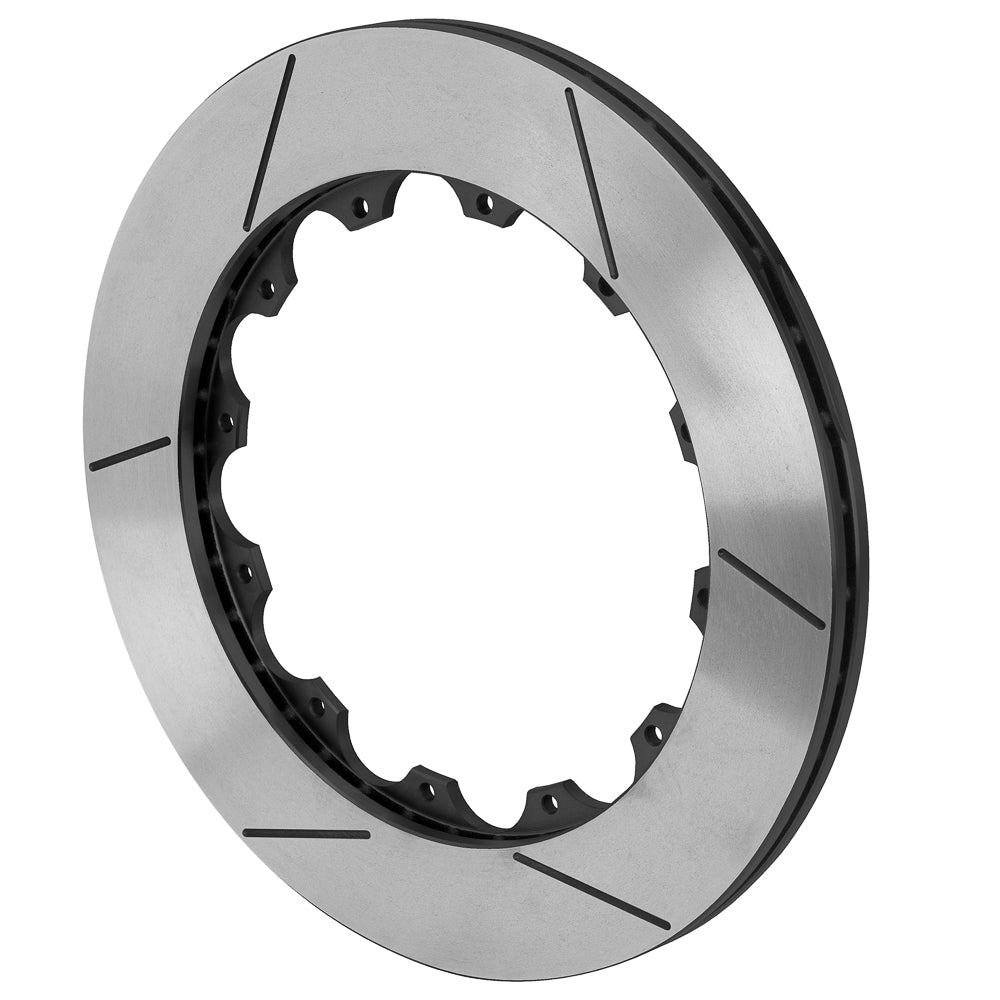

Black electro-coat differentiates this version of the 13.50-inch GT ring while retaining its straight-vane architecture. The 0.81-inch disc provides a slotted contact surface and the twelve-hole flange used by its matching separate hat. Wilwood began in 1977 with founder Bill Wood and is based in Camarillo, California, where it designs and manufactures disc brake systems. Calipers and rotors sit alongside master cylinders, valves, fittings and lines in a range serving motorsport, street performance and specialized applications. Selecting these parts together is essential to a correctly matched brake installation.
Technical Details
- Manufacturer part number: 160-16668-GTB
- Quantity: One rotor; not an axle pair
- Outside diameter: 13.50 inches
- Nominal thickness: 0.81 inches
- Rotor material: Iron
- Construction: 36 vanes
- Friction surface: GT Slotted
- Finish: Black Electro Coat
- Approximate weight: 12.50 lb
- Factory burnished: No
- Dynamically balanced: Yes
- Installation orientation: Non-directional
- Rotor attachment pattern: 12 x 8.75 inches
- Rotor mounting hole / thread: 0.251 inches
- Registration / lug inside diameter: 8.25 inches
- Far-side inside diameter: 9.50 inches
The hat or hub, fasteners, caliper and pads are not included.
Fitment & Compatibility
The 8.75-inch circle is a rotor attachment dimension. Check the 8.25-inch center register and 9.50-inch far-side inside diameter against the assembly being serviced.
Wilwood product specifications · Rotor dimension diagram
PMB Performance brings more than 20 years of brake expertise to component selection. Contact us with your existing rotor and brake-package details if you need help checking the match.
