Product details

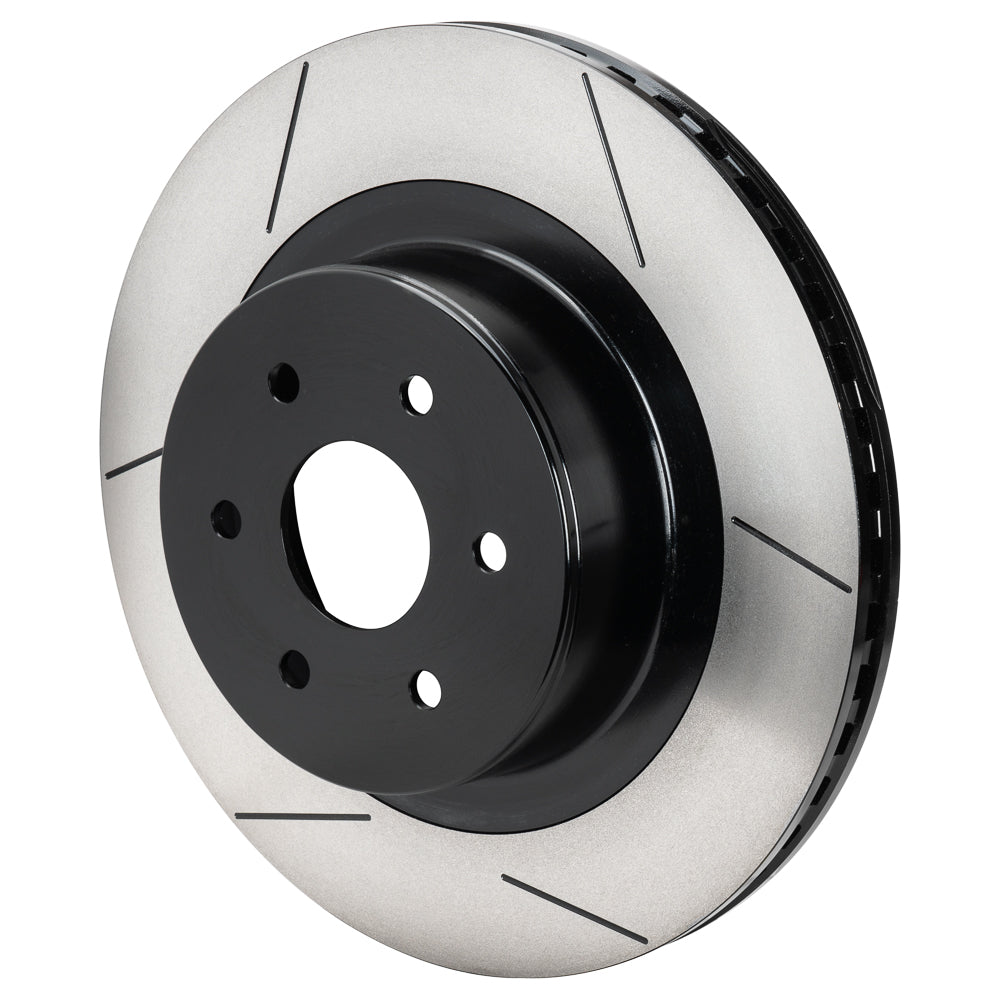

The 16-inch diameter makes this a replacement for the corresponding large rear brake package on compatible GM 1500 vehicles. Its GT slots, 48-vane casting and 1.25-inch section work with the kit’s caliper position; the integral hat retains an 8.27-inch parking drum. Since its founding by Bill Wood in 1977, Wilwood has designed and manufactured disc brake systems from its base in Camarillo, California. Its products span rotors, calipers, master cylinders, valves, fittings and lines for motorsport, street performance and specialized applications. Brake selection should account for the whole installation, including mounting dimensions, friction materials and hydraulic balance.
Technical Details
- Manufacturer part number: 160-16661-GTB
- Quantity: One rotor; not an axle pair
- Outside diameter: 16.00 inches
- Nominal thickness: 1.25 inches
- Rotor material: Iron
- Construction: 48 vanes
- Friction surface: GT Slotted
- Finish: Black Electro Coat
- Approximate weight: 39.62 lb
- Factory burnished: No
- Dynamically balanced: Yes
- Installation orientation: Non-directional
- Registration / lug inside diameter: 3.09 inches
- Far-side inside diameter: 11.05 inches
- Rotor offset: 2.220 inches
- Internal parking-brake drum diameter: 8.27 inches
- Internal clearance diameter: 7.56 inches
- Mounting-face thickness: 0.24 inches
- Hat wheel-stud clearance pattern: 6 x 5.50 inches
- Wheel-stud clearance hole diameter: 0.63 inches
- Intended use and restrictions: Rear rotor for matching six-lug GM 1500 brake kits with an internal parking drum.
The integral hat is part of the rotor; caliper, pads, parking-brake mechanism and installation hardware are separate.
Fitment & Compatibility
Use only with the matching 16-inch rear setup. Verify the 2.220-inch offset, 3.09-inch register and six-on-5.50-inch stud clearances rather than relying on vehicle series alone.
