Product details

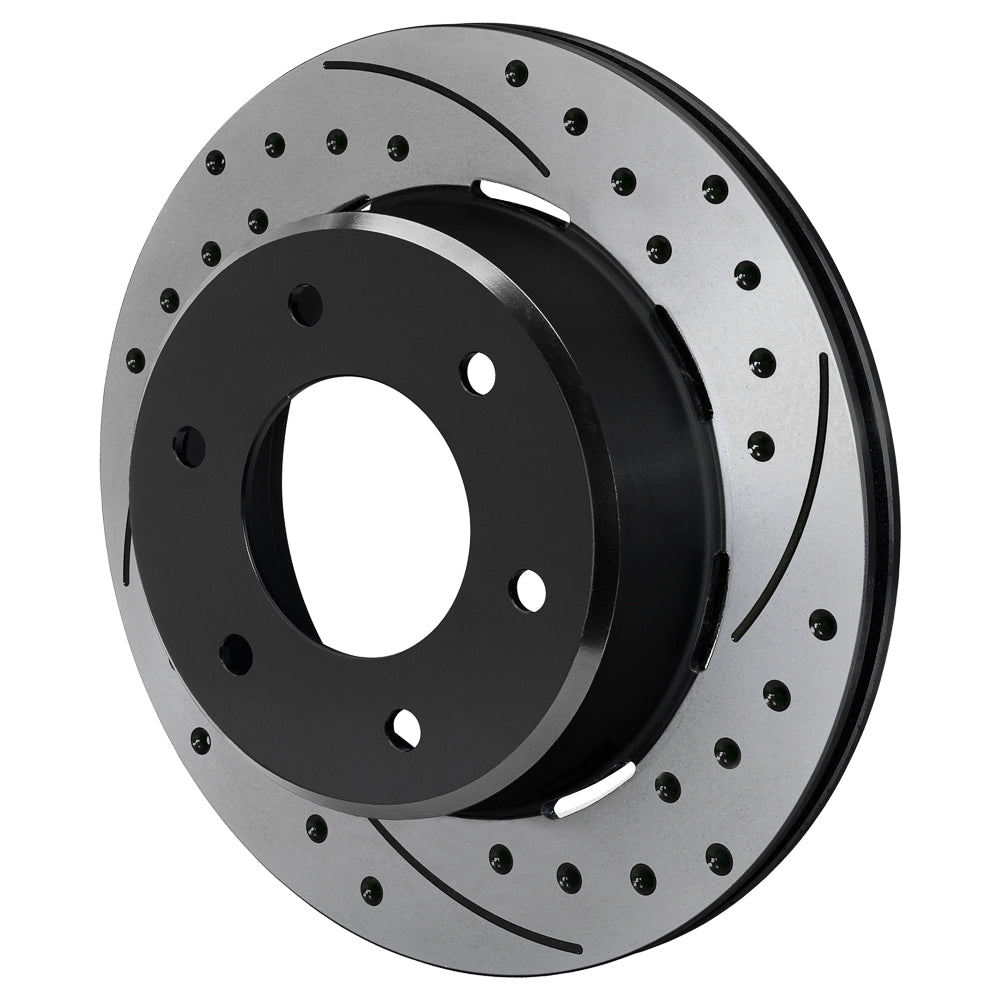

The right-hand SRP pattern clears the pad contact area through drilling and face slots while retaining the integral rear parking drum. This 12.19-inch rotor is intended for the matching six-lug disc/drum arrangement, with a 0.81-inch friction section. Established in 1977 by Bill Wood, Wilwood develops its range around complete disc brake systems. The Camarillo, California manufacturer designs and manufactures calipers, rotors, master cylinders, valves, fittings and lines for motorsport, street performance and specialized applications. Installation geometry, pad selection and braking duty should be considered together when choosing this component.
Technical Details
- Manufacturer part number: 160-16624-BK
- Quantity: One rotor; not an axle pair
- Outside diameter: 12.19 inches
- Nominal thickness: 0.81 inches
- Rotor material: Iron
- Construction: 32 vanes
- Friction surface: SRP Drilled & Slotted
- Finish: Black Electro Coat
- Approximate weight: 14.60 lb
- Factory burnished: No
- Dynamically balanced: No
- Installation orientation: Right-hand
- Registration / lug inside diameter: 3.56 inches
- Far-side inside diameter: 8.38 inches
- Rotor offset: 1.910 inches
- Internal parking-brake drum diameter: 7.24 inches
- Internal clearance diameter: 7.16 inches
- Mounting-face thickness: 0.18 inches
- Hat wheel-stud clearance pattern: 6 x 5.50 inches
- Wheel-stud clearance hole diameter: 0.52 inches
- Opposite-hand companion rotor: 160-16625-BK (sold separately)
- Intended use and restrictions: Rear rotor for matching six-lug kits with an internal parking drum.
The integral hat is part of the rotor; caliper, pads, parking-brake mechanism and installation hardware are separate.
Fitment & Compatibility
The 7.24-inch drum, 3.56-inch register and hat offset must match the installed rear kit. Wheel-stud clearance drilling does not change the hub’s bolt pattern.
