Product details

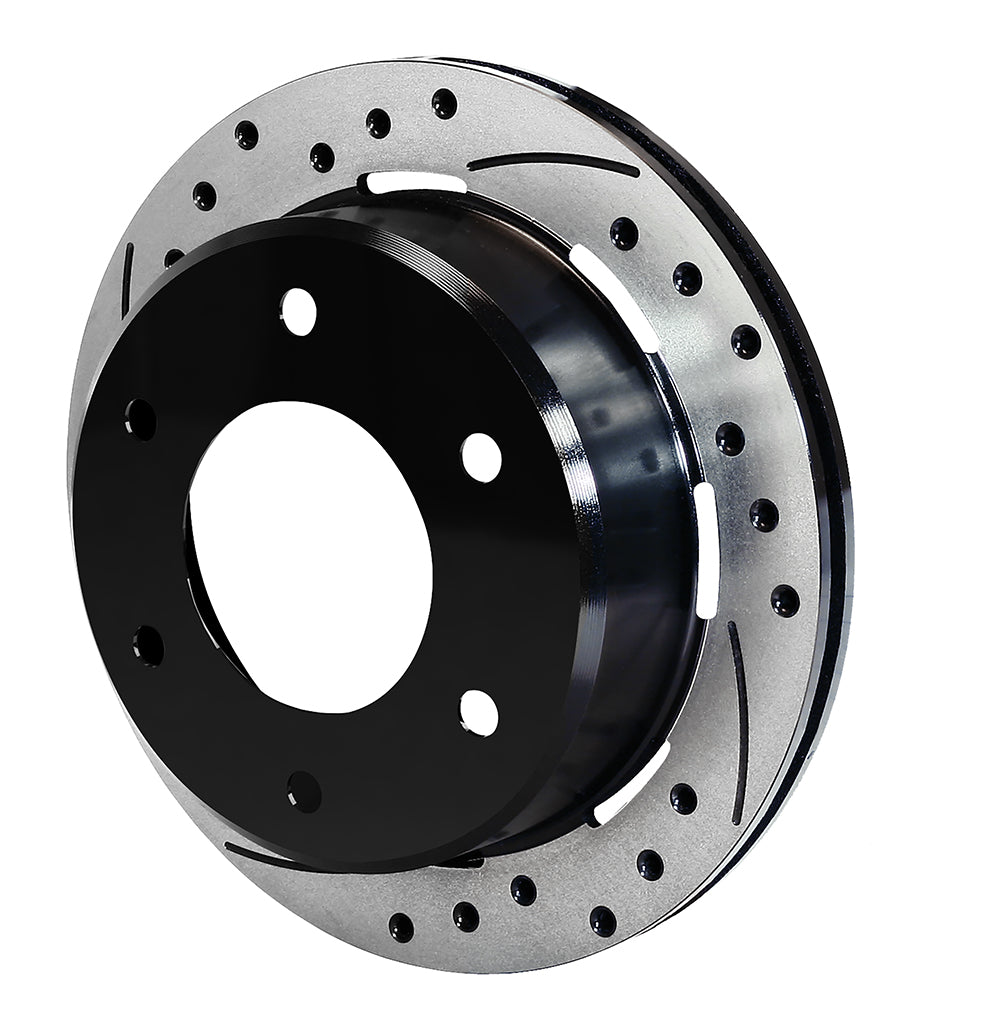

This right-hand rear rotor brings the SRP drilled-and-slotted face to Wilwood’s 11-inch low-profile disc/drum geometry. A black electro-coat finish covers the casting, whose integral hat retains the 1.910-inch offset required by the matching package. Camarillo, California is home to Wilwood, founded by Bill Wood in 1977. The company designs and manufactures disc brake systems for motorsport, street performance and specialized applications, supplying rotors, calipers, master cylinders, valves, fittings and lines. Matching the rotor to the complete assembly matters as much as selecting its diameter or surface treatment.
Technical Details
- Manufacturer part number: 160-16621-BK
- Quantity: One rotor; not an axle pair
- Outside diameter: 11.00 inches
- Nominal thickness: 0.81 inches
- Rotor material: Iron
- Construction: 32 vanes
- Friction surface: SRP Drilled & Slotted
- Finish: Black Electro Coat
- Approximate weight: 11.59 lb
- Factory burnished: No
- Dynamically balanced: No
- Installation orientation: Right-hand
- Registration / lug inside diameter: 3.56 inches
- Far-side inside diameter: 8.38 inches
- Rotor offset: 1.910 inches
- Internal parking-brake drum diameter: 7.24 inches
- Internal clearance diameter: 7.16 inches
- Mounting-face thickness: 0.18 inches
- Hat wheel-stud clearance pattern: 6 x 5.50 inches
- Wheel-stud clearance hole diameter: 0.52 inches
- Opposite-hand companion rotor: 160-16622-BK (sold separately)
- Intended use and restrictions: Rear rotor for matching six-lug 11.00-inch low-profile parking-brake kits.
The integral hat is part of the rotor; caliper, pads, parking-brake mechanism and installation hardware are separate.
Fitment & Compatibility
Confirm the low-profile kit, 3.56-inch register and 7.24-inch parking-drum diameter. Its six wheel-stud clearance holes are arranged on a 5.50-inch circle.
