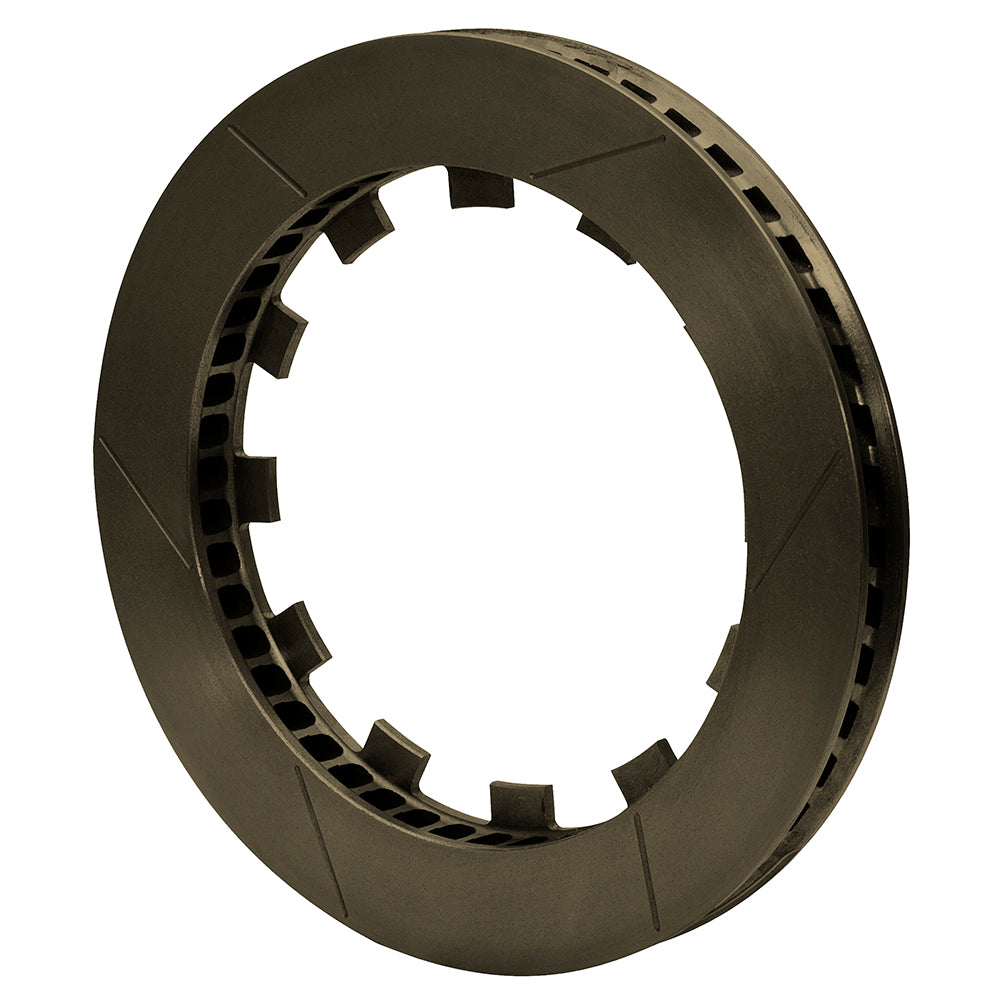

Factory burnishing is the defining preparation step on this right-hand GT rotor; the B suffix does not mean black coating. Under that preparation is a 13 x 1.25-inch Spec-37 casting with 48 curved vanes and a twelve-lug snap-ring mount. Founded by Bill Wood in 1977, Wilwood designs and manufactures disc brake systems in Camarillo, California. Its range includes calipers, rotors, master cylinders, valves, fittings and lines for motorsport, street performance and specialized applications. Rotor choice belongs within that complete system: the caliper, pad, mounting hardware and intended duty must work together.
Technical Details
- Manufacturer part number: 160-16534-B
- Quantity: One rotor; not an axle pair
- Outside diameter: 13.00 inches
- Nominal thickness: 1.25 inches
- Rotor material: Spec-37 Iron
- Construction: 48 curved vanes
- Friction surface: GT Slotted
- Finish: Plain
- Approximate weight: 14.40 lb
- Factory burnished: Yes
- Dynamically balanced: Yes
- Installation orientation: Right-hand
- Rotor attachment pattern: 12 x 7.77 inches, lug/snap-ring mount
- Registration / lug inside diameter: 7.09 inches
- Far-side inside diameter: 9.09 inches
- Opposite-hand companion rotor: 160-16535-B (sold separately)
- Intended use and restrictions: Suitable for high-temperature racing and street use. Spec-37 heavy-wall castings.
The hat or hub, fasteners, caliper and pads are not included.
Fitment & Compatibility
Use the 7.77-inch lug-drive carrier specified for this ring and follow Wilwood’s pad and rotor break-in guidance for the assembled system.
