Product details

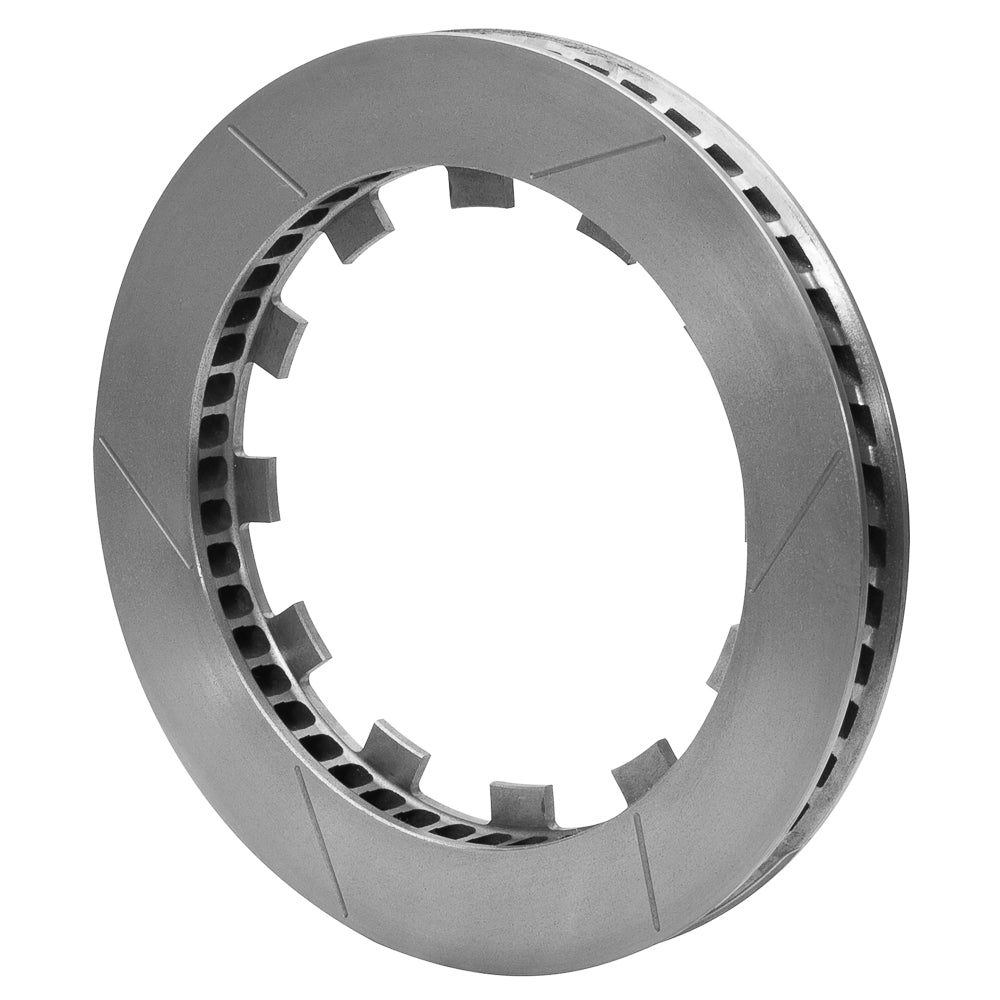

The twelve-lug mounting center makes this GT rotor a specific choice for a snap-ring retained system. It pairs a 13-inch Spec-37 friction ring with right-hand curved vanes and is supplied without factory burnishing. Founded in 1977, Bill Wood’s Wilwood is based in Camarillo, California and designs and manufactures disc brake systems for motorsport, street performance and specialized applications. Its range runs from calipers and rotors to master cylinders, valves, fittings and lines. Choosing a rotor involves matching those surrounding components as well as the vehicle’s intended use.
Technical Details
- Manufacturer part number: 160-16534
- Quantity: One rotor; not an axle pair
- Outside diameter: 13.00 inches
- Nominal thickness: 1.25 inches
- Rotor material: Spec-37 Iron
- Construction: 48 curved vanes
- Friction surface: GT Slotted
- Finish: Plain
- Approximate weight: 14.40 lb
- Factory burnished: No
- Dynamically balanced: Yes
- Installation orientation: Right-hand
- Rotor attachment pattern: 12 x 7.77 inches, lug/snap-ring mount
- Registration / lug inside diameter: 7.09 inches
- Far-side inside diameter: 9.09 inches
- Opposite-hand companion rotor: 160-16535 (sold separately)
- Intended use and restrictions: Suitable for high-temperature racing and street use. Spec-37 heavy-wall castings.
The hat or hub, fasteners, caliper and pads are not included.
Fitment & Compatibility
Match the 7.77-inch lug circle and 7.09-inch registration dimension to the correct carrier. A standard twelve-bolt hat is not interchangeable with this lug-drive interface.
Wilwood product specifications · Rotor dimension diagram
