Product details

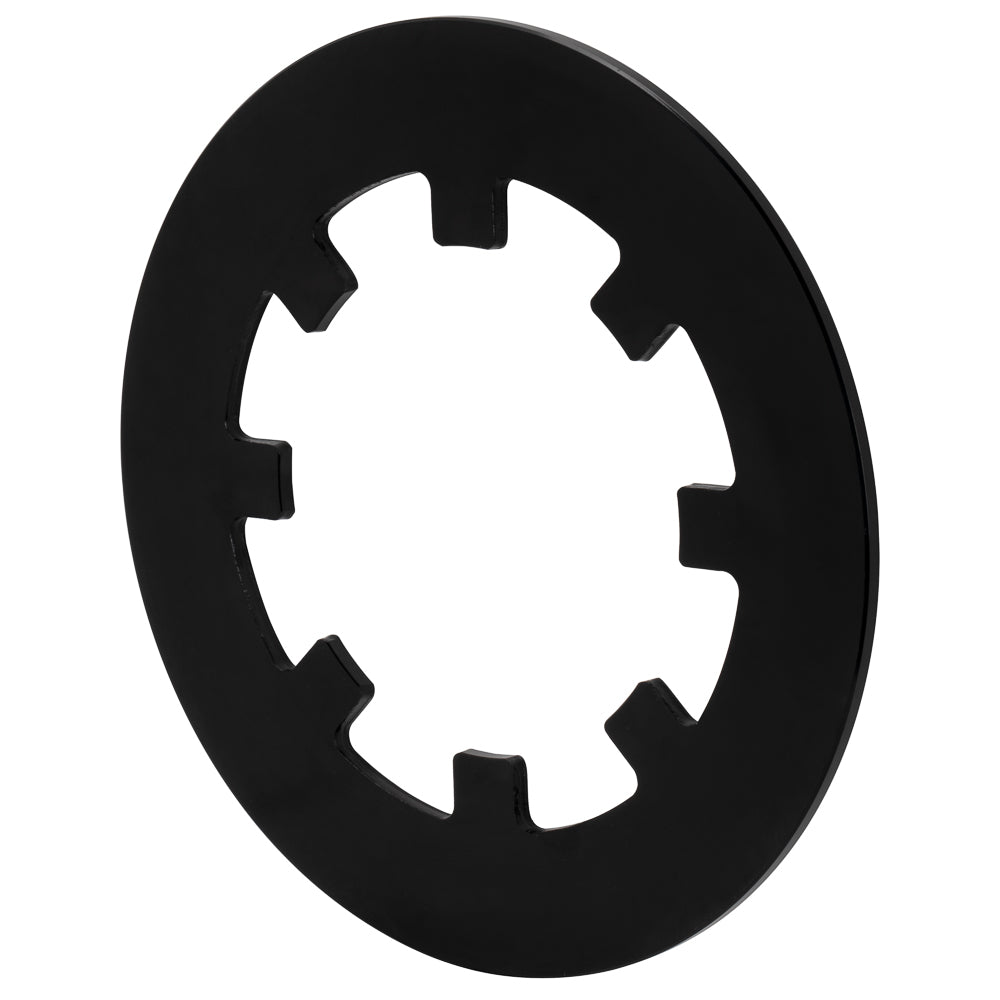

This UTV rotor uses a lug-drive connection instead of a conventional drilled bolt flange. Its solid steel ring measures 11.25 inches across and 0.25 inch thick, with a plain friction face and black electro-coat finish. Since its founding by Bill Wood in 1977, Wilwood has designed and manufactured disc brake systems from its base in Camarillo, California. Its products span rotors, calipers, master cylinders, valves, fittings and lines for motorsport, street performance and specialized applications. Brake selection should account for the whole installation, including mounting dimensions, friction materials and hydraulic balance.
Technical Details
- Manufacturer part number: 160-16515
- Quantity: One rotor; not an axle pair
- Outside diameter: 11.25 inches
- Nominal thickness: 0.25 inches
- Rotor material: Steel
- Construction: Solid
- Friction surface: Plain Face
- Finish: Black Electro Coat
- Approximate weight: 4.72 lb
- Factory burnished: No
- Dynamically balanced: No
- Installation orientation: Non-directional
- Rotor attachment pattern: 8 x 7.18 inches, lug/snap-ring mount
- Registration / lug inside diameter: 6.00 inches
- Intended use and restrictions: For compatible UTV brake assemblies.
The hat or hub, fasteners, caliper and pads are not included.
Fitment & Compatibility
The 8 x 7.18L designation identifies the lug mounting interface, not eight wheel studs. Confirm the matching rotor carrier, snap-ring retention and caliper thickness requirement.
Wilwood product specifications
Put PMB Performance’s 20-plus years of brake knowledge to work when matching this part to your build. We can help review the dimensions and application requirements.
