Product details

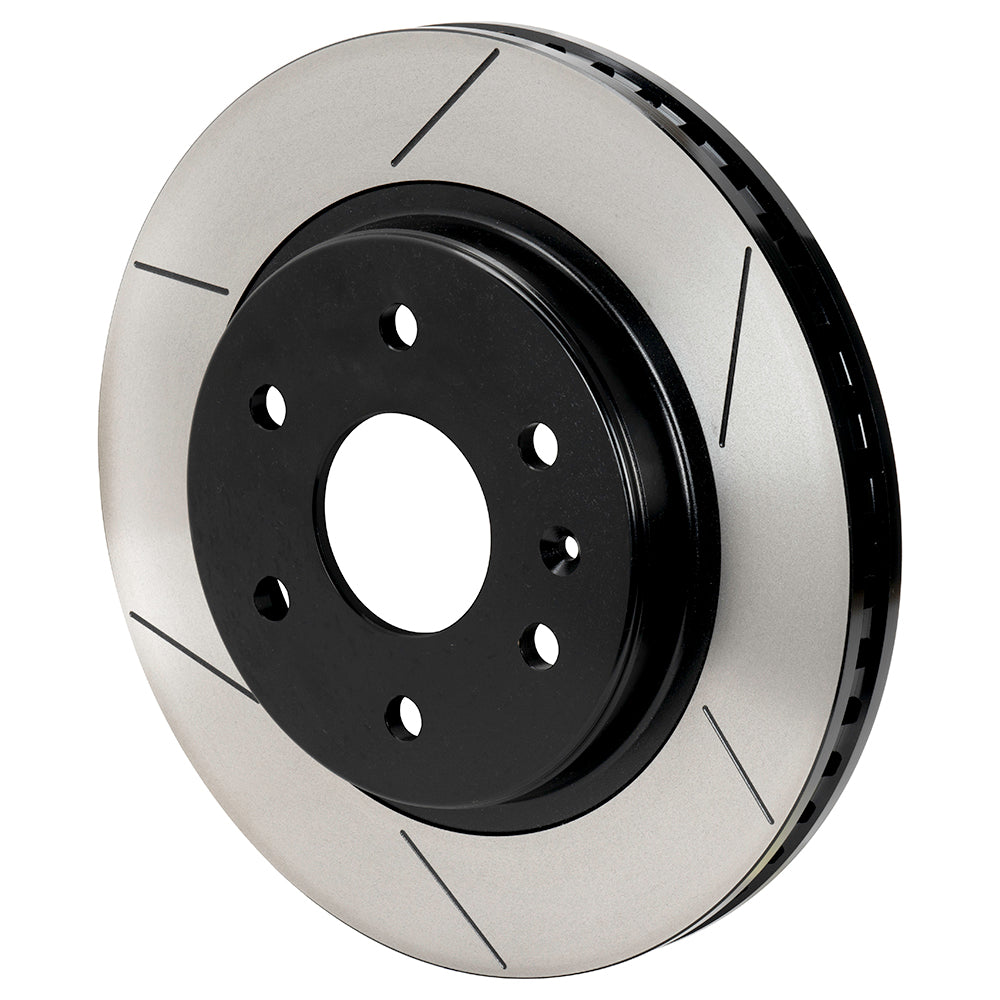

The 13.38-inch AERO6-DM front brake package uses this GT rotor and integral hat to retain the intended caliper-to-rotor relationship. Its 48-vane iron casting combines a 1.25-inch friction section with a 0.680-inch offset and black electro-coat finish. Wilwood’s calipers, rotors, master cylinders, valves, fittings and lines support complete disc brake systems rather than an isolated component choice. Founded in 1977 by Bill Wood and based in Camarillo, California, the company designs and manufactures these systems for motorsport, street performance and specialized applications. Correct pairing of the rotor with its surrounding hardware is essential.
Technical Details
- Manufacturer part number: 160-16511-GTB
- Quantity: One rotor; not an axle pair
- Outside diameter: 13.38 inches
- Nominal thickness: 1.25 inches
- Rotor material: Iron
- Construction: 48 vanes
- Friction surface: GT Slotted
- Finish: Black Electro Coat
- Approximate weight: 26.14 lb
- Factory burnished: No
- Dynamically balanced: Yes
- Installation orientation: Non-directional
- Registration / lug inside diameter: 3.09 inches
- Far-side inside diameter: 9.28 inches
- Rotor offset: 0.680 inches
- Internal clearance diameter: 7.30 inches
- Mounting-face thickness: 0.38 inches
- Hat wheel-stud clearance pattern: 6 x 5.50 inches
- Wheel-stud clearance hole diameter: 0.63 inches
The integral hat is part of the rotor; caliper, pads, parking-brake mechanism and installation hardware are separate.
Fitment & Compatibility
For compatible GM 1500 Wilwood AERO6-DM installations, including the packages identified in DS1522 and DS1590. Verify the exact vehicle and installed kit; these documents do not make it a universal replacement for every model year.
Wilwood product specifications · Rotor dimension diagram · Installation reference DS1522 · Installation reference DS1590
