Product details

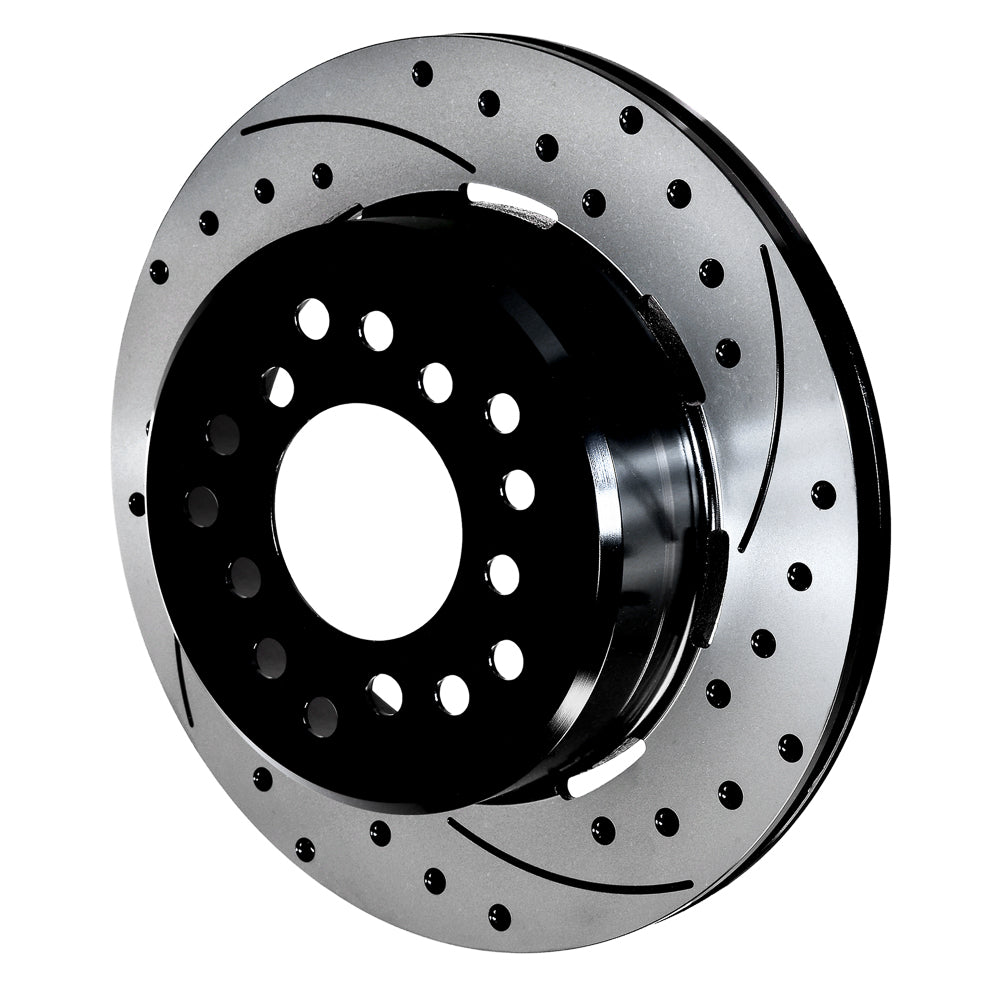

A left-hand SRP face pattern gives this rotor its required installed orientation, while the cast-in hat carries the parking-brake drum. The 0.81-inch ring, 2.320-inch offset and 3.06-inch center bore must all match the existing brake assembly. Established in 1977 by Bill Wood, Wilwood develops its range around complete disc brake systems. The Camarillo, California manufacturer designs and manufactures calipers, rotors, master cylinders, valves, fittings and lines for motorsport, street performance and specialized applications. Installation geometry, pad selection and braking duty should be considered together when choosing this component.
Technical Details
- Manufacturer part number: 160-16453-BK
- Quantity: One rotor; not an axle pair
- Outside diameter: 12.19 inches
- Nominal thickness: 0.81 inches
- Rotor material: Iron
- Construction: 32 vanes
- Friction surface: SRP Drilled & Slotted
- Finish: Black Electro Coat
- Approximate weight: 14.80 lb
- Factory burnished: No
- Dynamically balanced: No
- Installation orientation: Left-hand
- Registration / lug inside diameter: 3.06 inches
- Far-side inside diameter: 8.38 inches
- Rotor offset: 2.320 inches
- Internal parking-brake drum diameter: 7.24 inches
- Internal clearance diameter: 7.16 inches
- Mounting-face thickness: 0.18 inches
- Hat wheel-stud clearance pattern: 5 x 4.50/5.50 inches
- Wheel-stud clearance hole diameter: 0.52 inches
- Opposite-hand companion rotor: 160-16452-BK (sold separately)
The integral hat is part of the rotor; caliper, pads, parking-brake mechanism and installation hardware are separate.
Fitment & Compatibility
The internal drum measures 7.24 inches. Confirm its relationship to the shoe assembly and the rotor’s wheel-stud clearances; this is one replacement rotor, not a parking-brake conversion kit.
Wilwood product specifications · Rotor dimension diagram
