Product details

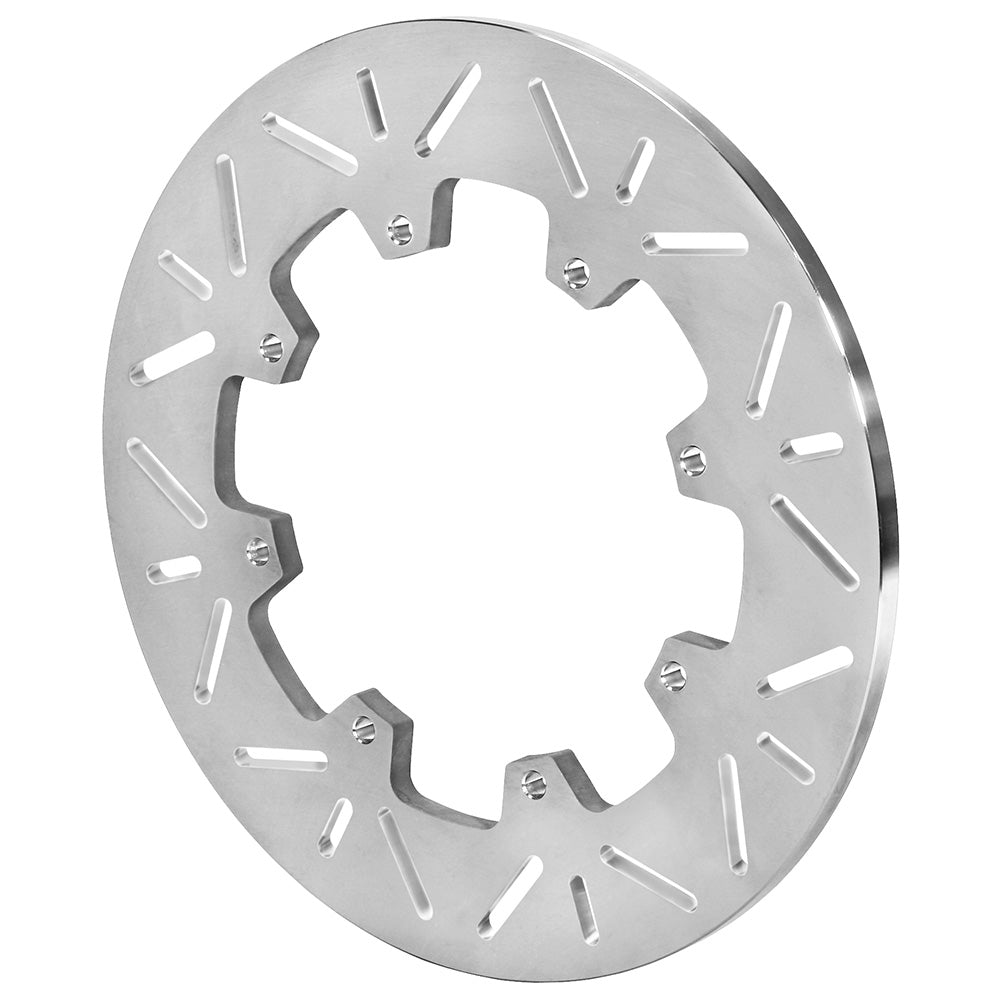

An inboard dirt Sprint brake has different mounting and duty requirements from a front-wheel brake. This 12-inch titanium rotor is made for that specific inboard location, using a 0.36-inch solid section and an eight-bolt, 7.00-inch mounting circle. Bill Wood established Wilwood in 1977. From Camarillo, California, the company designs and manufactures disc brake systems covering motorsport, street performance and specialized applications, with calipers, rotors, master cylinders, valves, fittings and lines in its product range. This rotor should be selected with the mounting arrangement, friction compound and hydraulic system in mind.
Technical Details
- Manufacturer part number: 160-16114
- Quantity: One rotor; not an axle pair
- Outside diameter: 12.00 inches
- Nominal thickness: 0.36 inches
- Rotor material: Titanium
- Construction: Solid
- Friction surface: Slotted
- Finish: Plain
- Approximate weight: 3.80 lb
- Factory burnished: No
- Dynamically balanced: No
- Installation orientation: Inboard, dirt Sprint Car only; non-directional ring
- Rotor attachment pattern: 8 x 7.00 inches
- Rotor mounting hole / thread: 0.323 inches
- Registration / lug inside diameter: 6.36 inches
- Intended use and restrictions: Only for dirt Sprint Car inboard use.
The hat or hub, fasteners, caliper and pads are not included.
Fitment & Compatibility
Restricted to dirt Sprint Car inboard use. Match the 6.36-inch register and 0.323-inch mounting holes to the correct carrier and use a caliper intended for the stated thickness.
