Product details

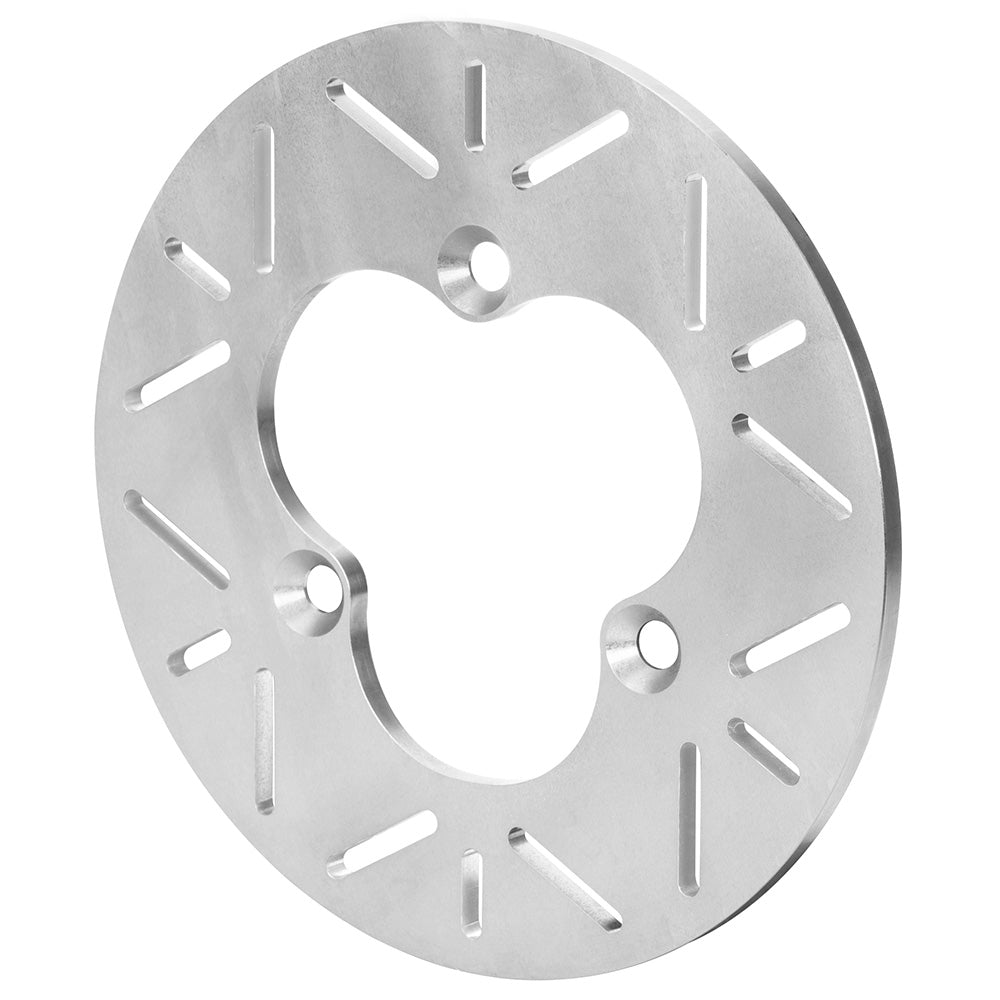

For a dirt Sprint or Midget left-front brake, this solid titanium rotor provides a slotted 10.20-inch working diameter at a nominal 0.31-inch thickness. The three mounting holes sit on a 5.00-inch circle, so it must be paired with the intended racing hub rather than selected as a general-purpose lightweight disc. A rotor must suit both the mechanical installation and the rest of the braking system. Wilwood brings that system perspective to its calipers, rotors, master cylinders, valves, fittings and lines, designing and manufacturing disc brake systems for motorsport, street performance and specialized applications. Bill Wood founded the Camarillo, California company in 1977.
Technical Details
- Manufacturer part number: 160-16113
- Quantity: One rotor; not an axle pair
- Outside diameter: 10.20 inches
- Nominal thickness: 0.31 inches
- Rotor material: Titanium
- Construction: Solid
- Friction surface: Slotted
- Finish: Plain
- Approximate weight: 3.06 lb
- Factory burnished: No
- Dynamically balanced: No
- Installation orientation: Left front, dirt Sprint/Midget only; non-directional ring
- Rotor attachment pattern: 3 x 5.00 inches
- Rotor mounting hole / thread: 0.516 inches
- Registration / lug inside diameter: 3.88 inches
- Intended use and restrictions: Only for dirt Sprint Car and Midget left-front use.
The hat or hub, fasteners, caliper and pads are not included.
Fitment & Compatibility
Only for dirt Sprint Car and Midget left-front use. Confirm the 3 x 5.00-inch mounting interface and caliper clearance; its non-directional construction does not broaden this application.
Wilwood product specifications
With over 20 years of brake experience, PMB Performance can help you compare the installed assembly with this rotor’s dimensions before ordering.
