Product details

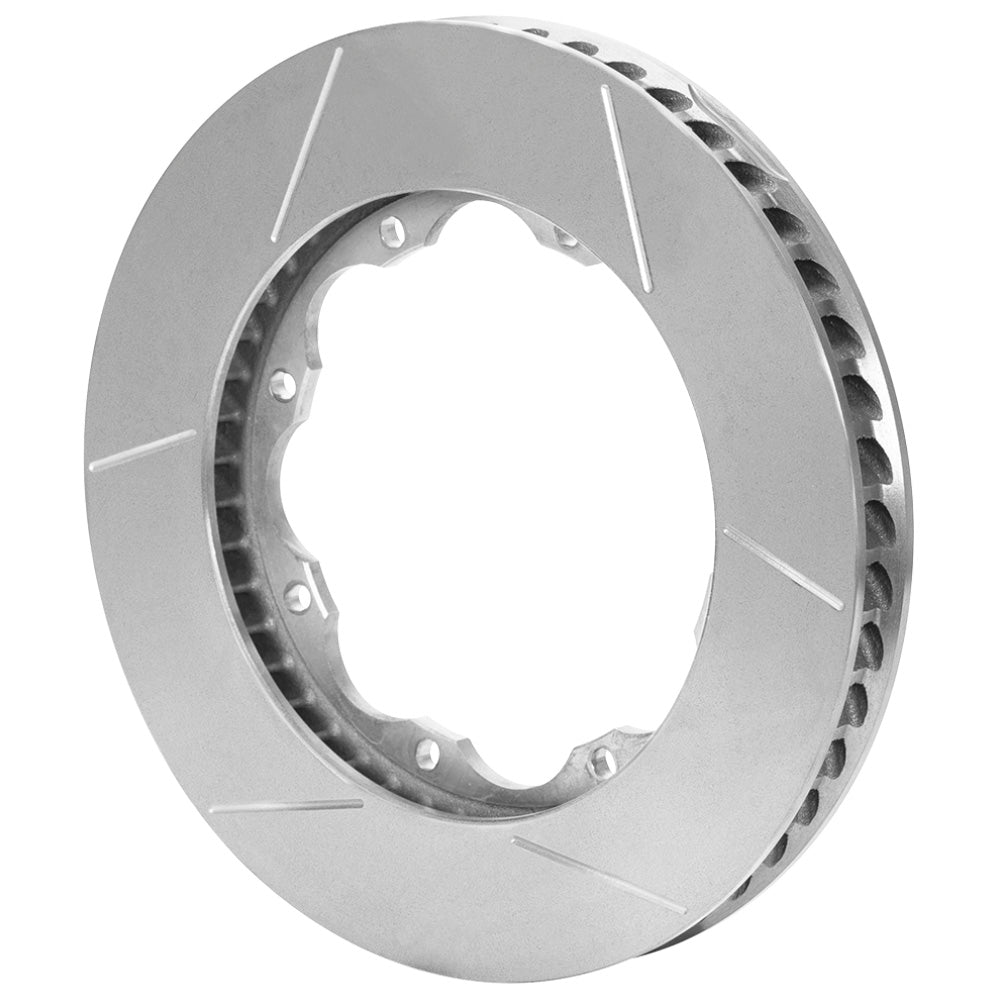

This right-hand GT rotor combines a 1.25-inch friction section with 48 curved cooling vanes for an installation designed around an 11.75-inch disc. Its eight-hole attachment circle is 7.05 inches, a critical distinction from otherwise similar 7.00-inch mounting versions. Founded by Bill Wood in 1977, Wilwood designs and manufactures disc brake systems in Camarillo, California. Its range includes calipers, rotors, master cylinders, valves, fittings and lines for motorsport, street performance and specialized applications. Rotor choice belongs within that complete system: the caliper, pad, mounting hardware and intended duty must work together.
Technical Details
- Manufacturer part number: 160-16027
- Quantity: One rotor; not an axle pair
- Outside diameter: 11.75 inches
- Nominal thickness: 1.25 inches
- Rotor material: Spec-37 Iron
- Construction: 48 curved vanes
- Friction surface: GT Slotted
- Finish: Plain
- Approximate weight: 13.10 lb
- Factory burnished: No
- Dynamically balanced: Yes
- Installation orientation: Right-hand
- Rotor attachment pattern: 8 x 7.05 inches
- Rotor mounting hole / thread: 0.320 inches
- Registration / lug inside diameter: 6.38 inches
- Far-side inside diameter: 7.69 inches
- Opposite-hand companion rotor: 160-16028 (sold separately)
- Intended use and restrictions: Suitable for high-temperature racing and street use. Spec-37 castings.
The hat or hub, fasteners, caliper and pads are not included.
Fitment & Compatibility
Use the right-hand rotor orientation and confirm the 6.38-inch register, 0.320-inch mounting holes and matching hat. The 7.05-inch circle is the rotor attachment pattern, not the wheel pattern.
Wilwood product specifications · Rotor dimension diagram
