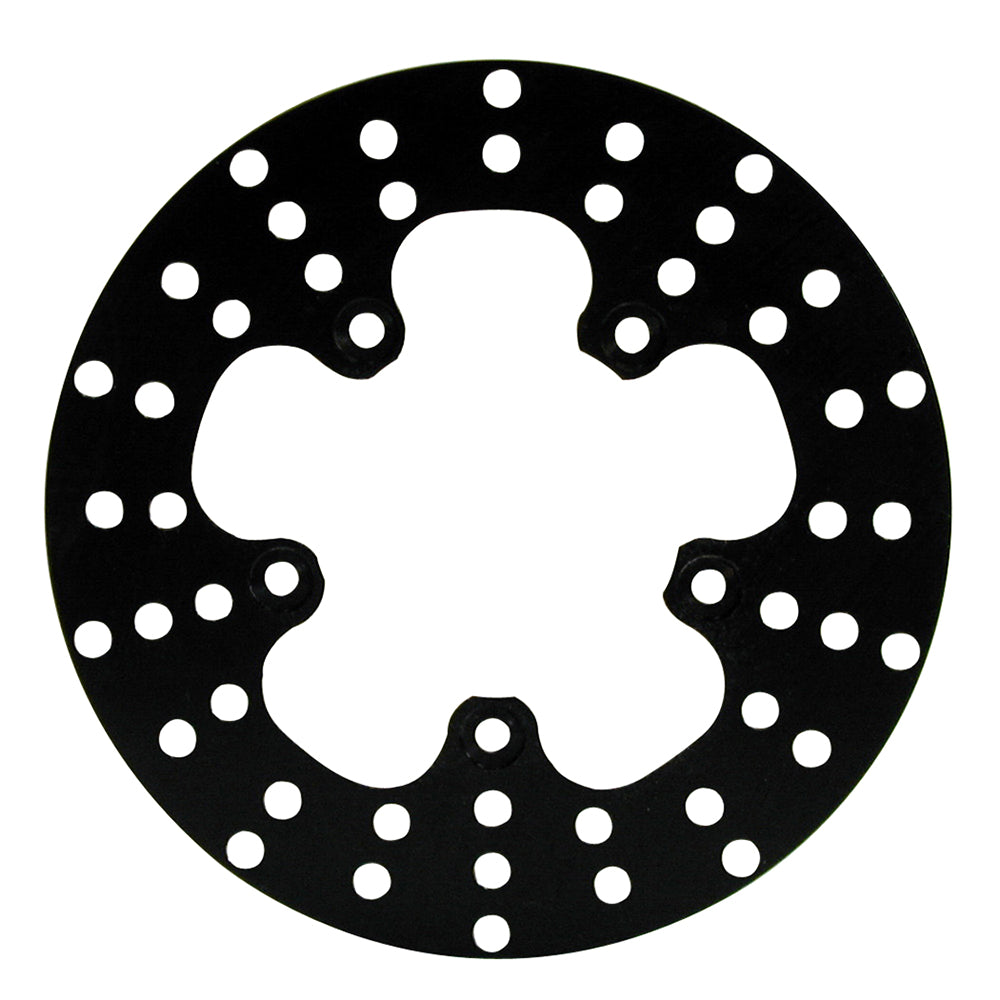

Wilwood Front Drag Drilled Steel Rotor, 10.00 x 0.25-inch, Five-Bolt Mount

A thin 0.25-inch steel plate supplies the ten-inch friction ring for this front drag application. The five-on-5.00-inch rotor attachment and 4.10-inch register must match the front racing hub; they are not a specification for the vehicle's wheel pattern. Wilwood Engineering designs and manufactures disc brake systems from its base in Camarillo, California. Bill Wood founded the company in 1977; its range now includes calipers, brake rotors, master cylinders, valves, fittings and brake lines for motorsport, street-performance and specialized uses. Selection must account for the entire brake system.

Technical Details

• Manufacturer part number: 160-1602
• Diameter and thickness: 10.00 inches diameter x 0.25 inches wide
• Ring material: Steel
• Face pattern and coating: Drilled; Black electrocoat
• Internal layout: Solid, unvented
• Mounting direction: Non-directional
• Balancing and burnishing: Factory burnished no; balanced no
• Rotor-to-hat/hub attachment circle: 5 x 5.00 inches
• Attachment hole size or thread: 0.391 inches
• Center / lug registration: 4.10 inches
• Approximate component weight: 3.20 lb
• Quantity: one rotor ring; hat, hub, mounting hardware, calipers and pads are separate

Fitment & Compatibility

For the matching front drag brake assembly. Confirm its five rotor attachments, 4.10-inch center and 0.25-inch caliper clearance before installation; the five-hole rotor circle does not define a wheel-stud pattern. Not for street use.

Manufacturer reference: Wilwood rotor specifications

PMB Performance has over 20 years of experience helping customers select brake components. Supplying the kit number, mounting dimensions and intended use makes that fitment check more useful.
